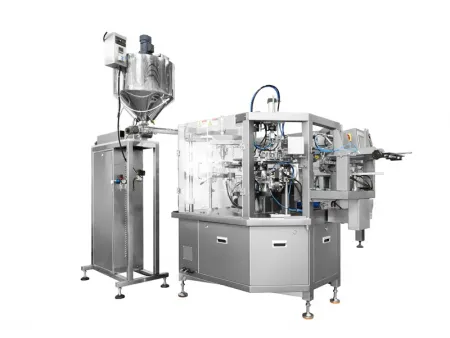

Premade Pouch Liquid Packaging Machine
Vertical Form Fill Seal Machines for Liquids and Viscous Products
- Stations
- 8
- Bags Per Hour
- 1800-3600
- Bag Length
- Up to 310mm
- Bag Width
- 120-230mm
Liquid and paste products, such as detergent, rice wine, soy sauce, vinegar, juice, beverages, tomato paste, peanut butter, fruit jam, chili sauce, and bean paste, are all compatible with this machine. It ensures efficient and reliable packaging for a wide range of liquid and viscous materials.
- Date Coding Machine
- PLC Control System
- Bag Opening Device
- Vibration Device
- Pneumatic Cylinder
- Solenoid Valve
- Temperature Control
- Vacuum Pump
- Frequency Converter
- Conveying System
- Quick Adjustment: Easily switch packaging bag specifications with one-touch automatic width adjustment.
- Efficient and Reliable Design: Features a single-shaft transmission with an internal cam for fast packaging speeds, stable operation, simple maintenance, and reduced defect rates.
- Precision Heating: Modular heating system with precise temperature control; faults are detected and alerted automatically.
- User-Friendly Operation: Equipped with a PLC POD (touchscreen) control system, offering an intuitive and convenient interface.
- Versatile Packaging: Capable of handling liquids, pastes, granules, powders, and solids. Simply pair the machine with the appropriate dosing device to meet the requirements of different materials.
This liquid pre-made pouch packaging machine is tailored to meet your needs, accommodating pouch sizes from 120–230mm in width and up to 310mm in length. Operating at a speed of 30–60 pouches per minute, the machine offers precise adjustments to your feeder speed, allowing you to maintain full control over your production pace. It’s designed to deliver efficiency and reliability for your packaging process.

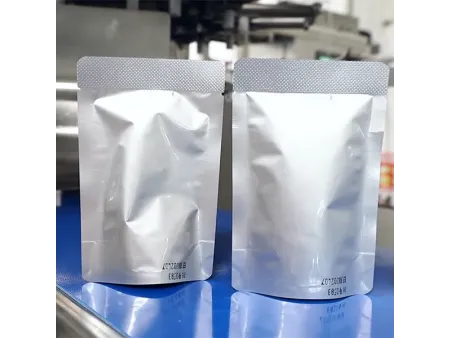

Kinds of Pouches: 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
| Model | |
| Number of Stations | 8 stations |
| Working Process | Bag Feeding → Date Coding → Zipper Bag Opening (depending on actual needs) → Bag Opening → Pouch Filling → Heat Sealing 1 →Heat Sealing 2 |
| Bag Type | Pre-made Pouches |
| Bag Length | Max.310mm |
| Bag Width | 120-230mm |
| Packaging Speed | 1800-3600bags/hour (depending on feeding speed) |
| Total Power | 5kW |
| Machine Weight | 1.6t |
| Machine Dimensions (L×W×H) | 1680×1590×1450mm |
| Compressed Air Consumption | 0.4m³/min (compressed air is supplied by user) |
