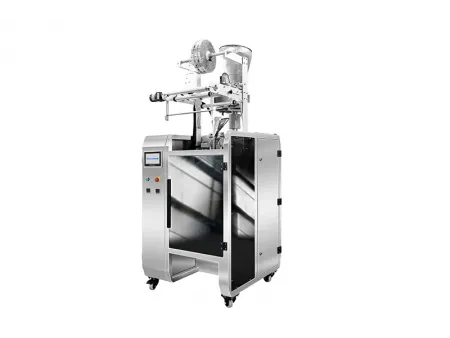

Pouch Granule Packaging Machine
Vertical Form Fill Seal Machines with Multihead Weigher for Granular Products
- Dosing System
- Multihead Weigher
- Bags Per Hour
- 300-3600
- Bag Volume
- 2000 to 14000ml
- Bag Size (Length × Width)
- 80-500mm × 60-350mm
This machine is perfect for your high-precision and delicate bulk material packaging needs. It handles products like puffed snacks, crackers, jelly, candies, pistachios, apple chips, dumplings, rice balls, chocolates, small hardware items, and medicinal herbs with care and accuracy.
- Whole grains
- Frozen food
- Pet food
- Biscuits
- Dried fruit
- Candy
- Hardware
- Plastic parts
- VFFS Packaging Machine
- Z-Type Conveyor
- Finished Product Conveyor
- Multihead Weigher
- Support Platform
- Smooth Operation Fully synchronized control system ensures automatic feeding, with no material wastage or unnecessary packaging cycles.
- Complete Automation Handles all processes, including conveying, measuring, filling, bag forming, vacuum sealing, date printing, and output of finished products.
- Stable and Safe Design Platform construction is carefully designed to ensure stability and safety while maintaining the precision of the multihead weigher.
- Easy Integration Connects effortlessly to production lines, allowing finished products to interface with checkweighers, metal detectors, or carton packaging lines.
- Cost-Saving Efficiency Streamlined workflow reduces operational costs while enhancing production efficiency.
Our machine is tailored to meet your needs for precise and delicate bulk material packaging. With its centralized feeding and packaging system, it offers your business an efficient and cost-effective solution by significantly reducing your equipment purchase and maintenance costs, labor operation expenses, and space requirements.
Your operations will benefit from its horizontal fast-return material conveying system, which ensures high capacity, uniform feeding, and gentle handling to protect delicate materials from breakage. Operating quietly and durably, this machine supports roll film widths of up to 720mm, producing granular packaging bags between 60-350mm in width and 80-500mm in length. With a production speed of up to 60 bags per minute, it boosts your productivity while maintaining precision.
Take your packaging process to the next level with our machine. Contact us today to discuss how it can transform your operations!
Kinds of Pouches: 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
| Model | |
| Film Width | Max.420mm |
| Bag Length | 80-300mm |
| Bag Width | 60-200mm |
| Film Roll Diameter | Max.320mm |
| Packaging Speed | 300-3600bags/hour |
| Bag Volume | 2000ml |
| Film Thickness | 0.04-0.12mm |
| Power Supply | 220V, 50/60Hz, 3kW |
| Machine Dimensions (L×W×H) | 1217×1015×1343mm |
| Optional | Air Filling Device, Gusseting Device |
| Film Material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc. |
| Model | |
| Film Width | Max.520mm |
| Bag Length | 80-350mm |
| Bag Width | 100-250mm |
| Film Roll Diameter | Max.320mm |
| Packaging Speed | 300-3600bags/hour |
| Bag Volume | 4000ml |
| Film Thickness | 0.04-0.12mm |
| Power Supply | 220V, 50/60Hz, 3kW |
| Machine Dimensions (L×W×H) | 1488×1080×1490mm |
| Optional | Air Filling Device, Gusseting Device |
| Film Material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc. |
| Model | |
| Film Width | 150-620mm |
| Bag Length | 100-450mm |
| Bag Width | 65-300mm |
| Film Roll Diameter | Max.320mm |
| Packaging Speed | 300-2700bags/hour |
| Bag Volume | 8000ml |
| Film Thickness | 0.04-0.12mm |
| Power Supply | 220V, 50/60Hz, 3kW |
| Machine Dimensions (L×W×H) | 1488×1180×1550mm |
| Optional | Air Filling Device, Gusseting Device |
| Film Material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc. |
| Model | |
| Film Width | 150-720mm |
| Bag Length | 100-500mm |
| Bag Width | 65-350mm |
| Film Roll Diameter | Max.320mm |
| Packaging Speed | 300-2400bags/hour |
| Bag Volume | 14000ml |
| Film Thickness | 0.04-0.12mm |
| Power Supply | 220V, 50/60Hz, 3kW |
| Machine Dimensions (L×W×H) | 1780×1350×2050mm |
| Optional | Air Filling Device, Gusseting Device |
| Film Material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc. |
