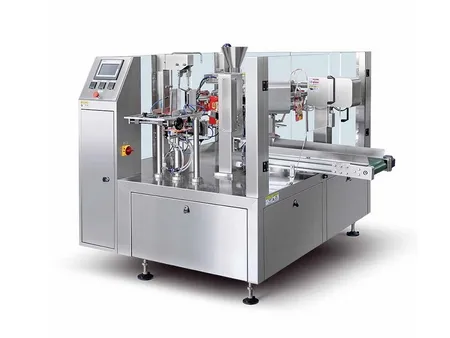

Pre-Made Pouch Packaging Machine

Request a Quote

Website: http://pharmaequip-en.com/5-4-2-pre-made-pouch-packaging-machine.html

Pharmaceutical Machinery

Packaging Equipment

ZP-8R200

Premade pouch fill & seal machine for liquids, powders and granules

25 to 60 Pouches Per Minute
100 to 400 mm Pouch Length
80 to 200 mm Pouch Width

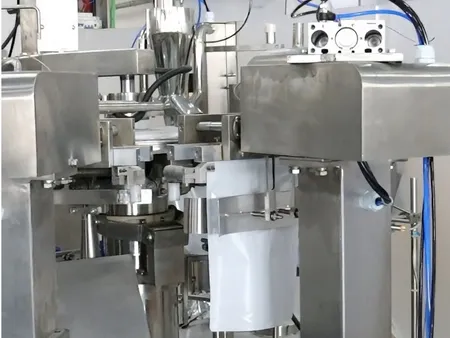

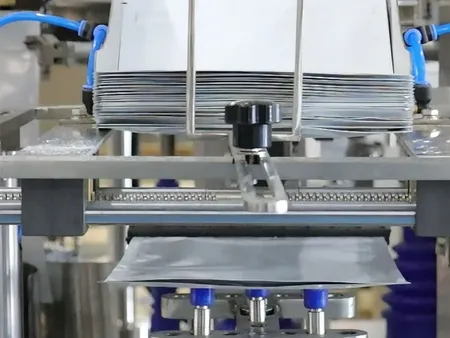

The pre-made pouch packaging machine is an efficient solution for filling and sealing liquids, powders, granules, and solid items in pre-formed pouches. It features high-precision processing and advanced technology to ensure durability, speed, and versatility, making it an excellent choice for various industries, including pharmaceuticals, food, and cosmetics.

Key features

Equipped with 24 high-quality cam components processed with Japanese precision techniques, ensuring long service life
Utilizes PLC for rapid settings adjustment, enabling simultaneous changes across 8 stations in just 5 seconds

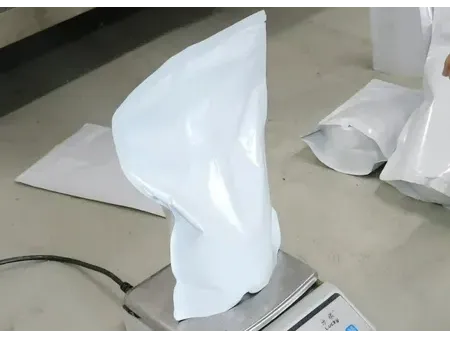

Suitable for packaging a variety of pouch-based materials, including liquids, powders, granules, solids, and food products

Specifications

Model	ZP-8R200
Number of Stations	8 stations
Pouch Type	Stand-up pouch Carry handle pouch 4 side seal pouch 3 side seal pouch Paper bag
Pouch Size	Length: 100-400mm Width: 80-200mm
Package Weight	10-2500g
Packaging Speed	25-60 pouches/min (depending on material and filling weight)
Machine Weight	1400kg
Power Supply	380V 3phase 50Hz/60Hz
Total Power	2.5kW
Compressed Air Consumption	0.6m³/min (supply by user)
