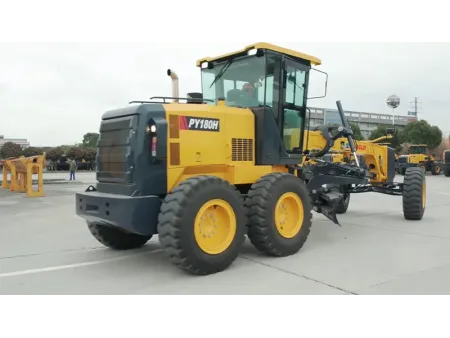

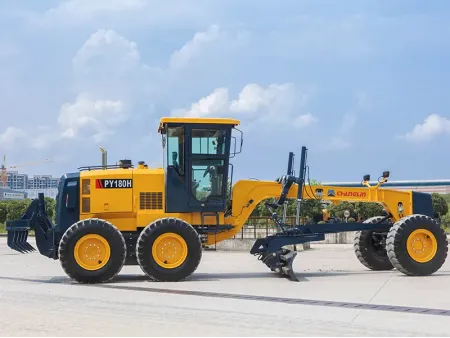

PY180H Motor Grader

Request a Quote

View All: http://changlinglobal.com/3-3-motor-grader.html

Designed to tackle complex working conditions, this motor grader delivers consistent performance with the support of a high-powered engine and an efficient hydraulic system. Its responsive controls and flexible blade settings help streamline leveling tasks across different terrain types, making it a reliable option for road construction, site preparation, and large-scale earthmoving work.

Length 8820 mm
Operating weight 14500 kg
Blade length 3658 mm

Technical Specifications

Overall Dimensions

Length 8820mm
Width 2600mm
Height (to the top of the cab) 3420mm
Wheel base 6100mm
Track width 2120mm
Min. turning radius 7.3m

Performance

Operating weight 14500kg
Blade length 3658mm
Blade height 580mm
Shovel blade thickness 20mm
Max. lift above ground 450mm
Max. grading depth 535mm
Max. shoulder reach (outside of rear tires) 2000mm

Travel Speed

Forward (1-6) 6.5/11.4/14.6/24.8/30/49.2km/h
Reverse (1-3) 6.5/14.6/30km/h

Diesel Engine

Model Dongfeng Cummins
Type Direct injection, turbocharged, water cooling
Rated output 132kW
Rated speed 2200r/min
Max. torque 750N.m@1300r/min
