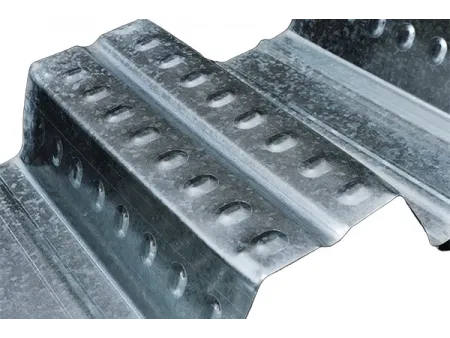

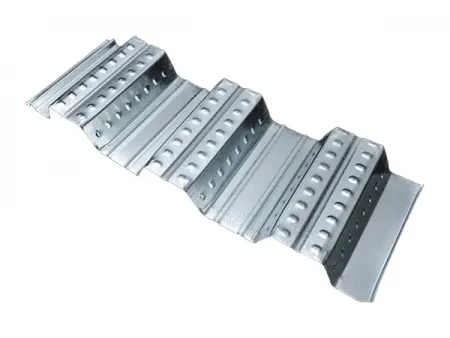

YX76-305-915

76mm depth×915mm width trapezoidal metal decking profile

Effective cover width: 915mm
Overall width of sheet: 1250mm
Length: Customizable
Thickness: 0.75mm-1.2mm
Material: Galvanized steel sheet, galvalume steel sheet

These trapezoidal metal floor decks are designed for strength and efficiency. They combine reliable fire resistance with high structural performance, which ensures safety and stability when integrated with reinforced concrete. Their lightweight design speeds up construction and helps lower costs, which makes them especially practical for large-span buildings or projects where time is limited.

Specifications

Model	YX76-305-915
Effective cover width	915mm
Length	Customizable
Thickness	0.75mm-1.2mm
Material	Galvanized steel sheet, galvalume steel sheet
Metal sheet suppliers	Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Lifespan	At least 30 years
Mounting accessories included	A full range of shear studs, self-tapping screws, clamps, etc.
Applications	Multi-story steel structure buildings
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Cross Section Properties

Model	Overall width of sheet (mm)	Sheet thickness (mm)	Profile weight (kg/m²)	Moment of inertia (cm⁴/m)	Positive bending moment (cm³/m)	Negative bending moment (cm³/m)
YX76-305-915	1250	0.8	8.59	106.00	23.40	25.90
		0.9	9.66	126.00	30.30	32.30
		1.0	10.74	138.00	37.10	39.00
		1.2	12.89	170.20	42.70	43.90
