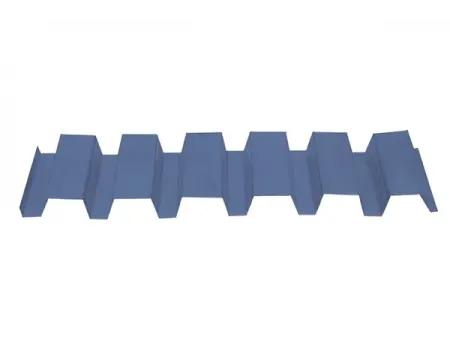

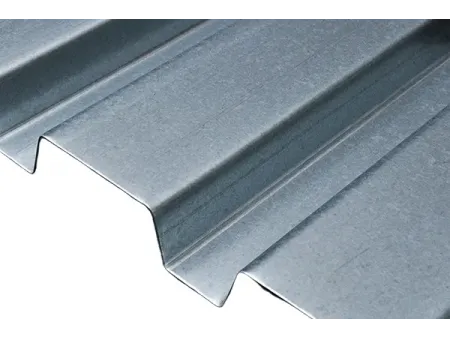

YX38-152-915

38mm depth×915mm width trapezoidal metal decking profile

Effective cover width: 915mm
Overall width of sheet: 1250mm
Length: Customizable
Thickness: 0.75mm-1.2mm
Material: Galvanized steel sheet, galvalume steel sheet

With an effective cover width of 915 mm and an overall sheet width of 1250 mm, this profile achieves a material utilization rate of 73%. Designed to serve as permanent formwork, it removes the need for traditional wooden molds and temporary supports. By integrating directly with cast-in-place reinforced concrete, it helps lower overall construction costs while improving efficiency on site.

Specifications

Model	YX38-152-915
Effective cover width	915mm
Length	Customizable
Thickness	0.75mm-1.2mm
Material	Galvanized steel sheet, galvalume steel sheet
Metal sheet suppliers	Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Lifespan	At least 30 years
Mounting accessories included	A full range of shear studs, self-tapping screws, clamps, etc.
Applications	Multi-story steel structure buildings
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Cross Section Properties

Model	Overall width of sheet (mm)	Sheet thickness (mm)	Profile weight (kg/m²)	Moment of inertia (cm⁴/m)	Positive bending moment (cm³/m)	Negative bending moment (cm³/m)
YX38-152-915	1250	0.8	8.59	86.00	20.40	22.90
		0.9	9.66	106.00	27.30	29.30
		1.0	10.74	118.00	34.10	36.00
		1.2	12.89	150.20	39.70	40.90
