YX113-256-768

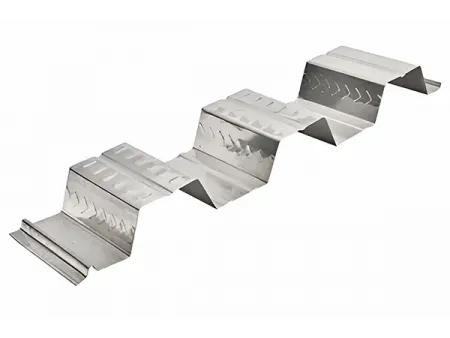

113mm depth×768mm width trapezoidal metal decking profile

Effective cover width: 768mm
Overall width of sheet: 1000mm
Length: Customizable
Thickness: 0.75mm-1.2mm
Material: Galvanized steel sheet, galvalume steel sheet

These trapezoidal metal floor decks have a crest height of 113 mm, spacing of 256 mm, and an effective cover width of 768 mm. They offer over twice the strength of standard profiles, which is ideal for long spans, heavy loads, and high-rise buildings.

Specifications

Model	YX113-256-768
Effective cover width	768mm
Length	Customizable
Thickness	0.75mm-1.2mm
Material	Galvanized steel sheet, galvalume steel sheet
Metal sheet suppliers	Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Lifespan	At least 30 years
Mounting accessories included	A full range of shear studs, self-tapping screws, clamps, etc.
Applications	Multi-story steel structure buildings
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Cross Section Properties

Model	Overall width of sheet (mm)	Sheet thickness (mm)	Profile weight (kg/m²)	Moment of inertia (cm⁴/m)	Positive bending moment (cm³/m)	Negative bending moment (cm³/m)
YX113-256-768	1000	0.8	10.25	215.40	42.60	46.80
		0.9	11.53	258.70	51.30	56.20
		1.0	12.81	306.50	60.80	66.50
		1.2	15.37	412.90	82.10	89.70
