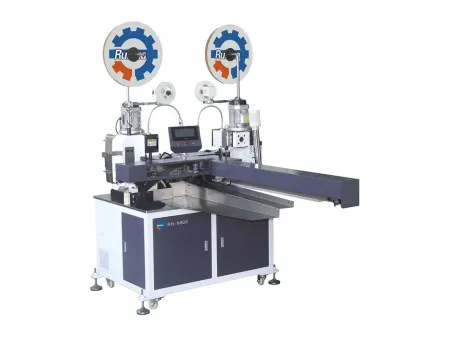

Automatic 8-Wire Two-Sided Tinning Machine

Automatic 8-Wire Two-Sided Tinning Machine
Automatic 8-Wire Two-Sided Tinning Machine
Request a Quote

This wire tinning solution processes up to eight wires simultaneously, supporting a range of operations such as cutting, single and double-sided stripping, half stripping, twisting on one or both ends, and tinning on either or both sides. With a crimping capacity of approximately 9,000 to 16,000 wires per hour, our wire tinning machines are built to meet the demands of fast-paced manufacturing environments.

Crimping Capacity
  • Approx. 9,000 to 16,000 wires per hour
Technical Data
General Model
Dimensions (L×W×H) 1050×610×1120mm
Weight Approx. 450kg
Power Supply AC220V 50/60HZ shingle phase
Rated Current 10A
Power 3kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Space Requirement 1×2m
Functions Crimping Capacity Approx. 9000-16000 wires/hr (depending on the wire length)

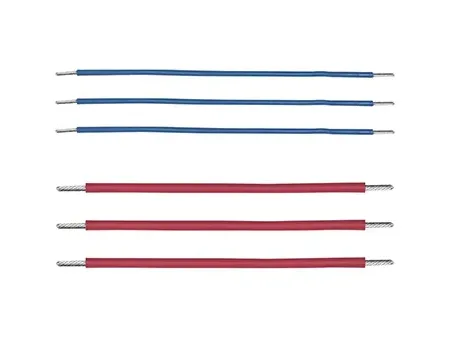

Wire Processing Wire cutting, One-sided full stripping, Two-sided full stripping, One-sided half stripping, Two-sided half stripping, One-sided twisting, Two-sided twisting, One-sided tinning, Two-sided tinning
Control System Single-chip microcomputer, servo motor
Detection Devices Wire shortage detection, air pressure test
Auxiliary Equipment Wire strip waste collector, air storage buffer tank
Operation Control Wire feeding, cutting and stripping are controlled via touch screen, with full digital control
Application Range Cutting Length 10-600mm (customizable)
Stripping Length Front: 1-6mm Rear: 1-6mm
Wire & Cable Type Electric wire, solid core cable (high temperature cable, Teflon insulated cable, silicone insulated cable, halogen-free cable) (AWG30#-AWG18#)
Max. Number of Pin 8-16pin
Features
  • Equipped with a robotic clamping mechanism to ensure that wire lengths remain stable and accurately aligned during processing, delivering consistent and reliable results.

  • The integrated error monitoring system displays real-time alerts on a user-friendly touch screen, allowing operators to quickly identify and resolve issues, minimizing disruptions to production.
