Automatic 8-Wire Two-Sided Tinning and One-Sided Terminal Crimping Machine

Automatic 8-Wire Two-Sided Tinning and One-Sided Terminal Crimping Machine
Automatic 8-Wire Two-Sided Tinning and One-Sided Terminal Crimping Machine
Request a Quote

Capable of processing up to eight wires at the same time, our 8-wire two-sided tinning and one-sided terminal crimping machines combine multiple operations such as cutting, stripping, tinning, and crimping into a unified workflow. Whether tinning one or both ends, crimping a single terminal, or handling partial and double-sided stripping, they offer flexibility for complex wire harness applications. Its adaptability to high-temperature wires, electronic wires, and Teflon-coated wires ensures these wire processing machines meet the demands of various industries.

Crimping Capacity
  • Approx. 8,000 to 11,000 wires per hour
Technical Data
General Model
Dimensions (L×W×H) 2500×1000×1550mm
Weight Approx. 550kg
Power Supply AC220V 50Hz
Rated Current 10A
Power 3kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Space Requirement 1.5×2.5m
Crimping Force 2T
Functions Crimping Capacity 8000-11000 wires/hr (depending on the wire length)

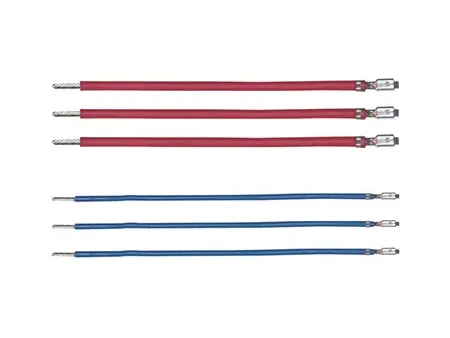

Wire Processing Wire cutting, One-sided full stripping, Two-sided full stripping, Two-sided half stripping, One-sided tinning, Two-sided tinning, One-sided crimping, One-sided crimping one-sided tinning
High-precision crimping, stripping and tinning by using ball screw mechanism
Control System PLC control, servo motor
Detection Devices Crimp test, wire shortage detection, air pressure test, paper winding inspection
Auxiliary Equipment Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Operation Control Wire feeding, cutting, stripping and movement are controlled via touch screen, with full servo control.
Optional Pressure Measuring Device Used to measure terminal crimping pressure
Application Range Cutting Length 35-1000mm (customizable)
Stripping Length Front: 1-6mm, Rear: 1-8mm
Stripping Length at Side B 1-8mm
Wire & Cable Type Electric wire, high temperature cable, Teflon insulated cable (AWG30#-AWG18#)
Max. Number of Pin 8pin
Features
  • The touch screen interface allows precise adjustments to wire feeding length, cutting length, stripping depth, insulation depth, crimping position, and tinning settings, making it easy to customize operations.

  • Robotic clamping ensures consistent alignment and wire stability throughout processing, delivering reliable results every time.

  • Compatible with 16AWG to 32AWG wires, including PVC, silicone, Teflon-coated, and halogen-free materials, making it suitable for diverse production needs.

  • Fitted with an integrated error monitoring system that displays real-time alerts on the touch screen, simplifying troubleshooting and minimizing downtime.
