Automatic Ribbon Cable One-Sided Tinning and Two-Sided Terminal Crimping Machine

Automatic Ribbon Cable One-Sided Tinning and Two-Sided Terminal Crimping Machine
Automatic Ribbon Cable One-Sided Tinning and Two-Sided Terminal Crimping Machine
Automatic Ribbon Cable One-Sided Tinning and Two-Sided Terminal Crimping Machine
Request a Quote

To produce ribbon cables and individual wires with consistent quality it’s necessary to utilize wire processing equipment that offers both flexibility and precision. This wire tinning and terminating machine supports a range of operations, including tinning one end, crimping both ends, alternating crimping, as well as front and back crimping, making it adaptable to various production scenarios.

Crimping Capacity
  • 18,000 crimps per hour for 20 pin ribbon cable
  • 12,000 crimps per hour for 8 pin electric wire
Technical Data
General Model
Dimensions (L×W×H) 2200×1400×1550mm
Weight Approx. 680kg
Power Supply AC220V 50Hz
Rated Current 15A
Power 5kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Space Requirement 2×3m
Crimping Force 2T
Functions Crimping Capacity 18000 crimps/hr for 20 pin ribbon cable
12000 crimps/hr for 8 pin electric wire, (depending on the wire type)

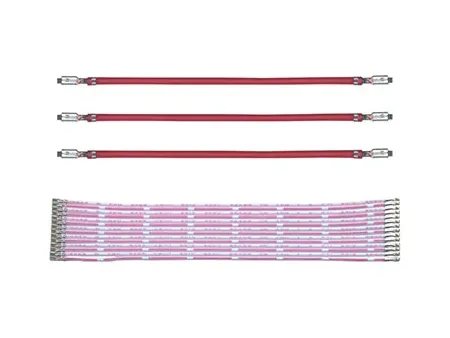

Wire Processing Side A and Side B alternate crimping / front & back crimping

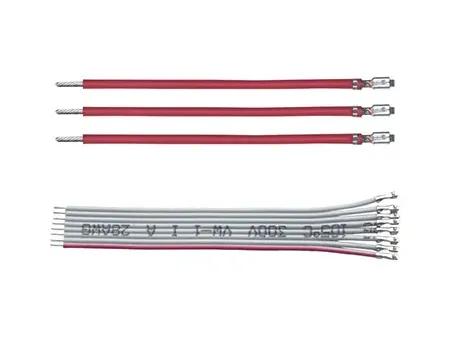

Full stripping or half stripping at both Side A and Side B, Twisting and tinning at Side B
Crimping of 2-20P ribbon cable
Simultaneous processing of five 2P ribbon cables
Simultaneous processing of eight electric wires
One-sided crimping, Two-sided crimping, Side A and Side B alternate crimping, Side A and Side B front & back crimping, One-sided crimping and tinning
Control System PLC control, servo motor
Detection Devices Crimp test, wire shortage detection, air pressure test, paper winding inspection
Auxiliary Equipment Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Operation Control Wire feeding, separating length, cutting and stripping are controlled via touch screen, with full servo control
Optional Pressure Measuring Device Used to measure terminal crimping pressure
Application Range Cutting Length 45-1200mm (customizable)
Stripping Length Front: 1-6mm, Rear: 1-10mm
Wire & Cable Type Electric wire, ribbon cable (high temperature cable, Teflon insulated cable, silicone insulated cable, halogen-free cable) (AWG28#-AWG18#)
Max. Wire Width 30mm
Max. Pins of Ribbon Cable 20pin
Features
  • The touch screen interface allows operators to adjust parameters such as total wire length, cutting length, stripping depth, insulation depth, and terminal positioning, simplifying the setup process.

  • Capable of processing ribbon cables and individual wires seamlessly without requiring additional accessories, with minor adjustments ensuring adaptability and reduced operational costs.

  • Compatible with a wide range of terminal types, including PH, XH, ZH, SCM, SM, VH, and Dupont continuous terminals.

  • Eccentric shaft design ensures balanced terminal pressure, delivering accurate and reliable crimps with a high product yield.

  • Supports A and B alternating, front and back, as well as partial crimping configurations to accommodate specific wire production requirements.

  • Robotic clamping system stabilizes wire lengths and ensures alignment throughout the process, maintaining precision and consistency.

  • Integrated error monitoring system displays real-time alerts on a touch screen, enabling quick troubleshooting and minimizing production downtime.
