ZCH8-12 Medium Voltage Vacuum Recloser

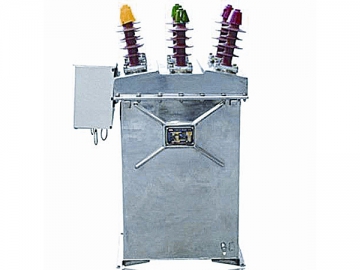

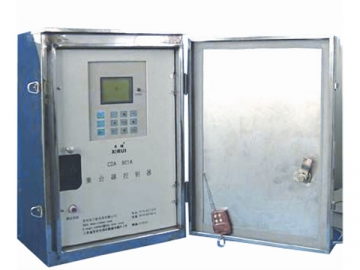

The ZCH8-12 medium voltage vacuum recloser is a multi-functional recloser that comprises of vacuum circuit breaker and recloser controller. Its microcomputer protection function could realize quick-breaking, delayed quick-breaking, and over current three stage protection. The recloser has a range of practical functions including flexible setting, definite time characteristic, adjustable protection value and delay value, back up protection value with auto-switchover, and cooling load auto-delay. Three reclosing operations with any intervals can be set at the same time, while you can activate any of the reclosing settings as you want.
The ZCH8-12 medium voltage vacuum recloser can do many jobs like measuring, control, monitoring, communicating, and telecontrol. It features with high integration, flexible configuration, and user friendly interface, and can be used in both simple and complex power distribution systems. As a fundamental device, it has some basic automatic functions for the distribution system while no background system is needed. However, a background system can improve the system’s stability and reliability.
Our ZCH8-12 medium voltage vacuum recloser is suitable for 10KV distribution systems in cities and rural places, oil fields, mines, industrial companies, and automatic railway system.
Model name and its meaning1. Disconnector
2. Rated short-circuit breaking current (kA)
3. Rated current (A)
4. Spring operating mechanism
5. Rated voltage (V)
6. Product series number
7. Outdoor type
8. Vacuum circuit breaker
Working environment
Altitude: ≤ 3000 m
Ambient temperature: -45℃～ 45℃
Wind speed: ≤ 35m/s
Vibration: No frequent vibration
Pollution class: Class III according to GB/T5582-1993
| NO. | Item | Unit | Data | |
| 1 | Rated voltage | kV | 12 | |
| 2 | Rated current | A | 400,630 | |
| 3 | Power frequency withstand voltage (1 min) | kV | 42 | |
| 4 | Lightning impulse peak withstand voltage | kV | 75 | |
| 5 | Rated short circuit breaking current | kA | 12.5, 16, 20 | |
| 6 | Rated peak short circuit making current | kA | 31.5 ， 40 ， 50 | |
| 7 | Rated peak withstand current | kA | 31.5 ， 40 ， 50 | |
| 8 | Rated short time withstand current (4s) | kA | 12.5 ， 16 ， 20 | |
| 9 | Rated operating sequence | Opening-0.3s-closing and opening-180s-closing and opening | ||
| 10 | Rated short-circuit current breaking times | Time | 30 | |
| 11 | Mechanism endurance | Time | 10000 | |
| 12 | Rated operating voltage (with special spring operating mechanism) | Opening coil | V | DC/AC220V/110V |
| Closing coil | ||||
| 13 | Contacts total abrasion thickness allowance | mm | 3 | |
| 14 | Over current trip rated current | A | 5 | |
| 15 | Weight (normal type) | kg | 160 | |
