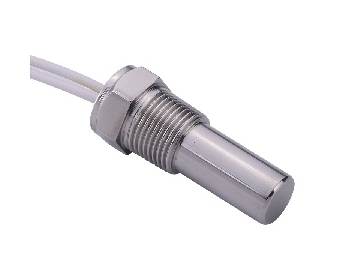

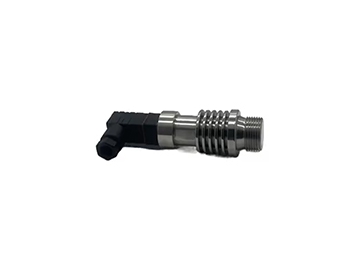

TS Series Temperature Switch

Request a Quote

View All: http://solution-sensor.com/3-4-ts-series-temperature-switch.html

The magnetic temperature switch, also named the thermal reed switch (TRS), is one of the major product as a curie temperature control element. And it is direct control type temperature-sensing switch that provides both sensing and contact mechanism, which ideally suitable for applications requiring temperature switch featured by small size, precise operation and high reliability. The large current fast response temperature switches can be customized, and specially used for applications in need of anti-freezing function.

Features

Excellent thermal sensitivity accuracy within ±1 ℃
During repetitive operations, temperature change is very small
Contacts are inserted in a glass tube and explosion-proof
Miniature size and easy to use
All temperature switches are “CQC” and EX approved
Stable self-holding performance at high temperature
Suitable for humid environment
Continuous duty at 130℃
Excellent vibration and shock resistance
Simplified logic circuit without the need for external self-holding relay/seal-in relay

Applications

Temperature reed switch is applicable to coolant fan control, heating system, anti-freeze control of air-conditioning pipe, engine low temperature warning and cooling system, as well as for critical temperature sensing and controlling.
Suitable for thermal control and monitoring to protect various equipment from overheating, such as water heaters, boilers and other heating equipment; Suitable for controlling of antifreeze heaters, such as central air conditioners, refrigerating machines and industrial equipment, thus increasing the safety, performance and functionality of the equipment.

Technical Parameters

Model	TSB-15-4L	TSM-3.5-4H	TSB-105-5L
Contact Mode	SPST (Single Pole, Single Throw), open on rise (Break model)	SPST (Single Pole, Single Throw), close on rise (Make model)	SPDT (Single Pole, Double Throw) (Exchange model)
Temperature Setting Value*	15℃ off, 11℃ on	3.5℃ off, 7.5℃ on	105℃ off, 100℃ on
Setting Tolerance	±1℃, ±2℃	±1℃, ±2℃	±1℃, ±2℃
Temperature Hysteresis	4℃ max	4℃ max	4℃ max
Power Rating	70VA	70VA	70VA
Switch Voltage	250VAC	250VAC	250VAC
Carry Current	1.0A max	1.0A max	1.0A max
Switch Current	0.7A max	0.7A max	0.7A max
Operating Pressure	2.0 MPa or more	20 MPa or more	2.0MPa or more
Thermal Response Time	45 s	45 s	45 s
Housing Material	Brass or SUS304	Brass or SUS304	Brass or SUS304
Mounting Threads	M16×1.0 or3/8"NPT
Cable and Electrical Terminal**	AWG22,UL1430300mm free wire or Client required, such as M8 connector
Protection Class	IP65	IP65	IP65
Certification	CQC, EX, CE	CQC, EX, CE	CQC, EX, CE

*The setting temperature value is selectable, as client required.
*The cable is selectable.
