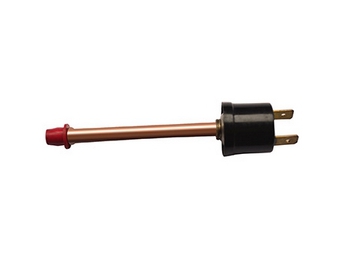

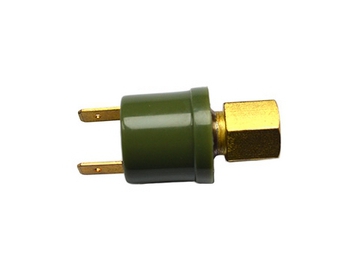

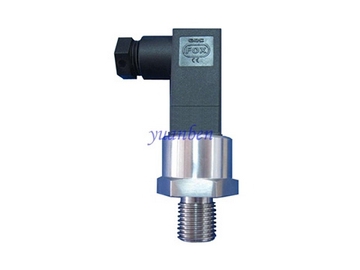

PS Series Pressure Switch
Request a Quote
Magnetic sensors product, Intelligent sensing solutions
The PS series pressure switch is an advanced miniature pressure switch. It is an electrical switch that causes a circuit to open or close when the pressure of the controlled medium increases or decreases. It is widely used in refrigeration systems, oil pumps, air pumps, automobile industries and more. The mounting thread and electrical terminal can be selected according to the customer’s requirements. The micro-differential pressure switch, the temperature and pressure compound switch can be customized.
Features
- Compact size, stainless steel material, excellent accuracy, and less temperature drift.
- Mounting and usage is easy, M10 or 5/8- UNF mounting thread or pipe welding can be selected.
- Automatic or manual reset can be selected
- Competitive price
Technical Parameters
| Item | Technical Parameter |
| Pressure Setting Range | Automatic Reset: 0.15MPa~3.05MPa Manual Reset: 2.5MPa~3.4MPa |
| Electrical Ratings | 120/240VAC, 375VA; 28VAC/VDC, 2A 120VAC, 5.8FLA, 34LRA; 240VAC, 2.9FLA, 15LRA |
| Ambient Temperature and Humidity | -35°C 120°C; less than 95% RH |
| Contact Resistance | Less than l00MQ |
| Insulation Resistance | More than 100MQ |
| Dielectric Withstand Voltage | Withstand 1500VAC for one minute without breakdown |
| Burst Pressure | 35MPa for one minute without body rupture and seals failure |
| Leakage | Total maximum allowable leak rate of 7x 10-6cc/scc of at least 70% Helium at l.OMPa |
| Durability | 100,000 cycles(automatic); 6,000 cycles(manual) |
| Flame rated | UL94V-0 |

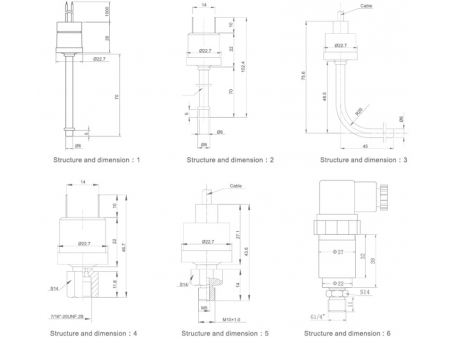

Dimension
Applications
The pressure switch is widely used in refrigeration systems, air-conditioners, oil pumps, air pumps, automobile industries and more.
