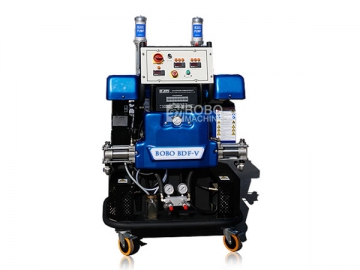

Hydraulic Polyurea Spray Machine BDF-V
Request a Quote
View All: http://foam-spraying.com
The hydraulic polyurea spray machine BDF-V is specially designed for polyurea elastomer product, which is widely used in wall, roof, refrigerator, tank body, abrasive layer of pipeline, it is used as the protection coat with waterproof and antiseptic purposes. The polyurea spray equipment is hydraulic driven, with more stable performance and higher output.
Main Technical Data
| Model | |
| Max. flow capacity | 2-8kg/min |
| Mixing ratio | 1:1, fixed ratio |
| Material viscosity range | 200-1000CPS (operation temperature) |
| Max. system pressure | 25MPa |
| Single material output press | Max. 26MPa |
| Hydraulic pressure | 8-12MPa (for working) |
| Material heating capacity | 9000W×2 |
| Hose heating capacity | 3200W |
| Max. hose length | 90M |
| Electric system | 38A x 3 16A -380V 3Phase |
| Driven system | Full-hydraulic |
| Cleaning system | Pneumatic cleaning |
| Dimension | 1100x700x1400mm |
| Weight | 350KG |
| Standard configuration | Main machine, one set 2 Feeding pumps 1 Spray gun Gun connection hose 1.5 m Heating hose 15m |
