Spring Couplings
Request a Quote

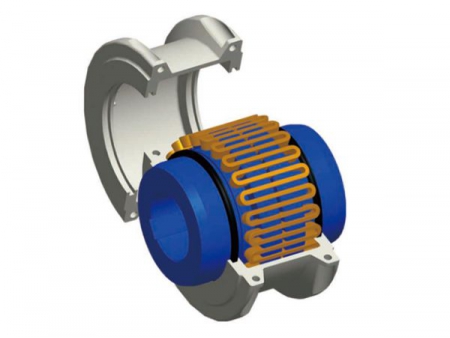

Our SL series serpentine spring coupling combines large torque capacity of gear coupling with excellent flexibility of elastic coupling, making it perfect for large-scale belt conveyors. Spring couplings from Zoomry have been applied in a number of belt conveyor projects requiring high handling capacity, high power, and long-distance conveying.
Features
- Simple structure, easy assembly and disassembly, minimal maintenance;
- Long lifespan;
- High strength and strong impact resistance, efficiently protecting equipment;
Specifications
Model | Rated torque (N.m) | Allowable speed (r/min) | Max. shaft hole d1,d2 (mm) | D1 (mm) | D2 (mm) | L (mm) |
SL101 | 45 | 4500 | 28 | 40 | 80 | 107 |
SL102 | 140 | 4500 | 35 | 50 | 90 | 107 |
SL103 | 224 | 4500 | 42 | 55 | 100 | 107 |
SL104 | 400 | 4500 | 50 | 65 | 114 | 127 |
SL105 | 630 | 4350 | 56 | 75 | 130 | 127 |
SL106 | 900 | 4125 | 65 | 90 | 146 | 167 |
SL107 | 1800 | 3600 | 65 | 105 | 168 | 228 |
SL108 | 3150 | 3600 | 95 | 125 | 186 | 228 |
SL109 | 5600 | 2440 | 110 | 140 | 214 | 290 |
SL110 | 8000 | 2250 | 120 | 160 | 236 | 290 |
SL111 | 12500 | 2025 | 140 | 180 | 260 | 290 |
SL112 | 18000 | 1800 | 170 | 220 | 304 | 350 |
SL113 | 25000 | 1650 | 180 | 255 | 336 | 350 |
SL114 | 35500 | 1500 | 200 | 270 | 395 | 430 |
SL115 | 50000 | 1350 | 240 | 305 | 435 | 430 |
SL116 | 63000 | 1225 | 280 | 360 | 488 | 510 |
SL117 | 90000 | 1100 | 300 | 395 | 530 | 510 |
SL118 | 125000 | 1050 | 320 | 440 | 605 | 610 |
SL119 | 180000 | 900 | 360 | 500 | 660 | 610 |
SL120 | 224000 | 820 | 350 | 535 | 755 | 614 |
SL121 | 315000 | 730 | 420 | 570 | 825 | 670 |
SL122 | 400000 | 680 | 450 | 610 | 910 | 670 |
SL123 | 500000 | 630 | 480 | 650 | - | 773 |
SL124 | 630000 | 580 | 460 | 710 | - | 773 |
SL125 | 800000 | 540 | 500 | 760 | - | 913 |
