BP15 0~8PSI Smart Build-in Draft Beer Dispensing CO₂ Regulator, Flow Rate up to 8L/min
Request a Quote
- Medium: CO₂
- Adjustable output pressure: 0~8psi
- Inlet-Options: 3/8-24UNF, TR21×4/⌀21~6ACME, 3/8-24UNF adaptor
- Outlet: 7/16-20UNF
- MOQ: 100 pieces
- OEM sample available for brands

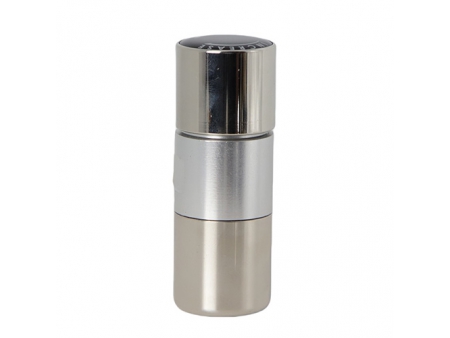

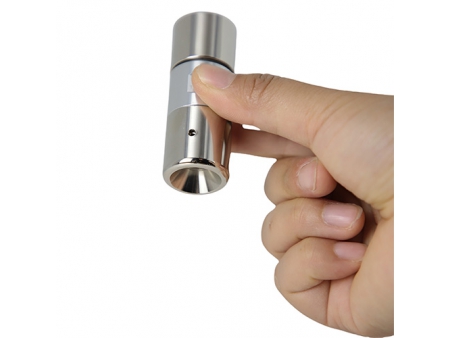

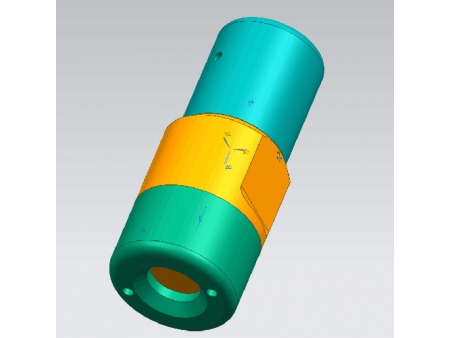

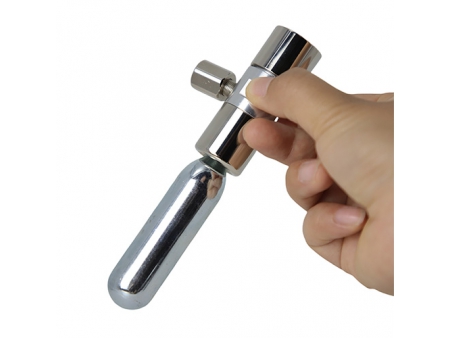

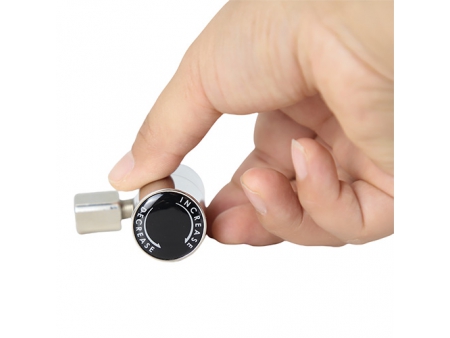

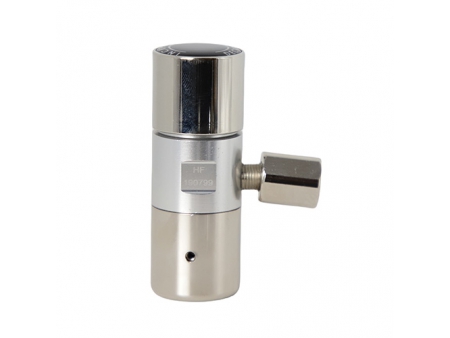

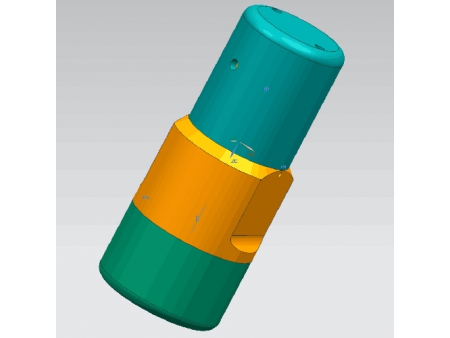

This cylindrical adjustable pressure regulator is designed for low-pressure applications, making it an ideal match for compact home beer dispensers. The pressure control valve can be customized for either a fixed output pressure of 0-8 PSI or adjustable pressure settings, depending according to your needs. With a flow rate of up to 8L/min, this regulator ensures a smooth and efficient beer dispensing experience, perfectly complementing smart craft beer dispensers.
Specifications
| Model | | |
| Body Material | 6061-T6 | Hsi59-0.5 |
| Surface Treatment | Hard anodizing | Passivating |
| Medium | CO₂ | |
| Operating Temperature | -20℃~65℃ | |
| Adjustable output pressure | 0~8psi | |
| Flow Rate | ≥ 8L/min | |
| Pressure Accuracy | ±0.3bar | |
| Inlet Pressure | 10~120bar | |
| Proof Pressure | ≥250bar | |
| Leak Rate | ≤0.2g/day | |

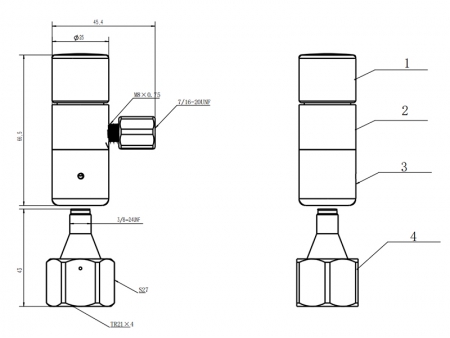

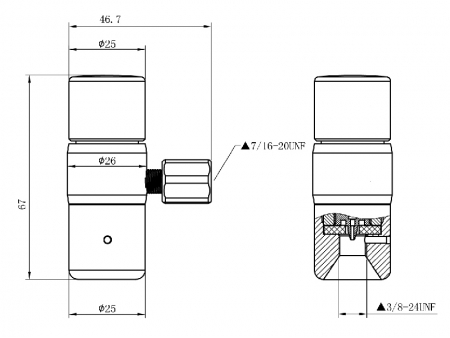

| Inlet-Options | 3/8-24UNF | |
| TR21×4/⌀21~6ACME | ||
| 3/8-24UNF adaptor | ||
| Outlet | 7/16-20UNF | |
