DIN 689 Carbon Steel Hook with Latch

DIN 689 Carbon Steel Hook with Latch
DIN 689 Carbon Steel Hook with Latch
Request a Quote

Features
● It is forged by general mild steel.
● Surface treatment: white zinc electroplating.
● It can only be used for lashing and pulling but not lifting.

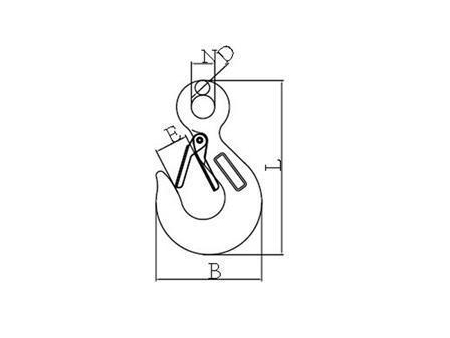

Parameters (Unit: mm)
Item N0. Weight/kg Safe working load/KG N±0.5 B±1 E±1.2 D±0.5 L±1
SLR-020-250KG 0.15 250 12 52.5 18 7.5 88
SLR-020-500KG 0.32 500 16 70 23 10 117
SLR-020-1000KG 0.84 1000 20 98 34 13 160
SLR-020-1600KG 1.3 1600 22 111 37 16 186
SLR-020-2500KG 2.55 2500 25 145 48 20 233
