Double Column Machining Center

The LM-3022 gantry CNC machining center features a gantry width of 2200mm and a worktable of 3000×1800mm with a maximum loading capacity of 8000kg. This gantry CNC machining center is used to machine large parts in complicated shapes, such as airplane beams and frames, and heavy duty machinery parts.

Parameters
Model LM-3022
Travels
X-axis travel (mm) 3000
Y-axis travel (mm) 2400
Z-axis travel (mm) 1000
Distance from spindle nose to table center (mm) 200-1200
Table (gantry) width (mm) 2200
Worktable
Worktable area (mm) 3000×1800
Maximum weight on table (kg) 8000
T-slot (width – number of slot x spacing) (mm) 9-22×200
Spindle
Standard spindle speed (rpm) 6000
Spindle taper BT50φ190
Spindle drive mode Belt drive
Spindle power (KW) 22
Feed
Cutting feed (mm/min) 8000
Rapid feed (m/min) 12/12/10
Linear guide rail width / number of tracks (mm) 2-55X2-55Y:Z box guideway
Others
Three-axis motor power (KW) 7.0/7.0/7.0
Positioning accuracy (mm) 0.035/1000
Repeatability (mm) 0.025
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 0.48
Power requirement (KVA) 45
Air pressure (bar) 6.5
Machine weight (t) 27
Machine dimension (mm) 10260×4950×4800
Components of gantry milling machine

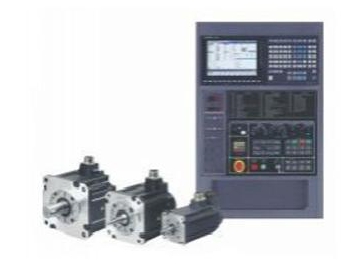

  • Control system and motor

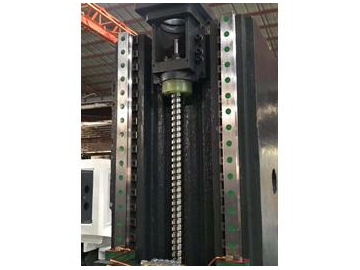

  • Box guideway

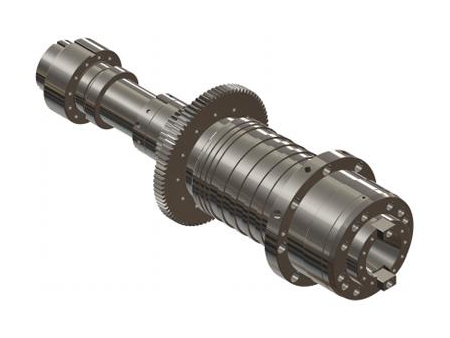

  • Mechanical spindle, gear drive

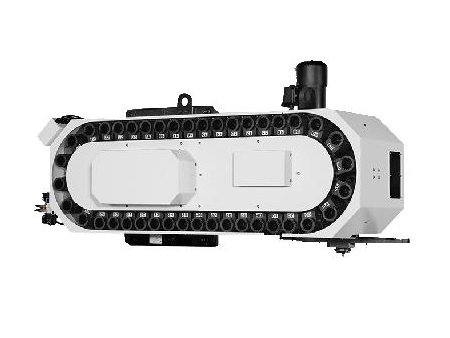

  • Chain-type tool magazine
