CNC Gantry Machining Center, Series LM-5029
Request a Quote
Double Column Machining Center
The LM-5029 CNC machining gantry mill is used to machine large and complicated components, such as airplane beams and frames, and heavy duty machine parts. The gantry mill features a 5000 x 2300mm workbench, with a maximum loading capacity of 18000kg, and a positioning accuracy of 0.035/1000mm.
Parameters| Model | LM-5029 | |
| Travels | ||
| X-axis travel (mm) | 5000 | |
| Y-axis travel (mm) | 3100 | |
| Z-axis travel (mm) | 1000 | |
| Distance from spindle nose to table center (mm) | 200-1200 | |
| Table (gantry) width (mm) | 2900 | |
| Worktable | ||
| Worktable area (mm) | 5000×2300 | |
| Maximum weight on table (kg) | 18000 | |
| T-slot (width – number of slot x spacing) (mm) | 11-28×200 | |
| Spindle | ||
| Standard spindle speed (rpm) | 6000 | |
| Spindle taper | BT5Oφ19O | |
| Spindle drive mode | Belt drive | |
| Spindle power (KW) | 22 | |
| Feed | ||
| Cutting feed （mm/min） | 8000 | |
| Rapid feed (m/min) | 10/10/10 | |
| Linear guide rail width / number of tracks (mm) | 3-55X2-55Y:Z box guideway | |
| Others | ||
| Three-axis motor power (KW) | 7.0/7.0/7.0 | |
| Positioning accuracy (mm) | 0.035/1000 | |
| Repeatability (mm) | 0.025 | |
| Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D | |
| Coolant tank (Pump) (HP) | 0.48 | |
| Power requirement (KVA) | 45 | |
| Air pressure (bar) | 6.5 | |
| Machine weight (t) | 61 | |
| Machine dimension (mm) | 12860×4320×4600 | |

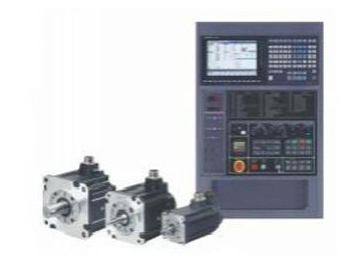

- Control system and motor

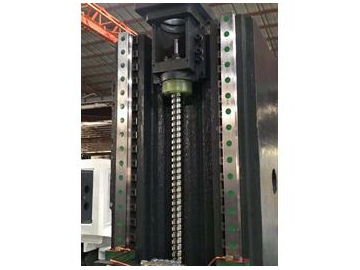

- Box guideway

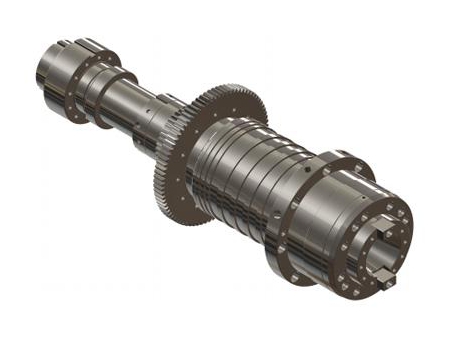

- Mechanical spindle, gear drive

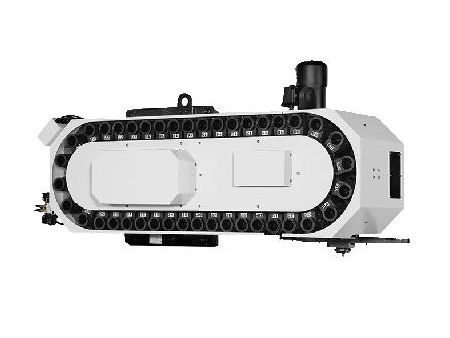

- Chain-type tool magazine
