CNC Gantry Machining Center, Series LM-3017
Request a Quote
Double Column Machining Center
The LM-3317 CNC gantry milling machine has an X-axis travel of 3300mm, a Y-axis travel of 1850mm and a Z-axis travel of 800mm. Its spindle speed is 6000rpm and features a positioning accuracy of 0.035/1000rpm. This ensures machined products feature a high precision and high machining speed. This gantry milling machine is often used for machining large, complex workpieces such as airplane beams and frames, and other large machinery parts.
Parameters| Model | LM-3317 |
| Travels | |
| X-axis travel (mm) | 3300 |
| Y-axis travel (mm) | 1850 |
| Z-axis travel (mm) | 800 |
| Distance from spindle nose to table center (mm) | 240-1040 |
| Table (gantry) width (mm) | 1700 |
| Worktable | |
| Worktable area (mm) | 3300×1500 |
| Maximum weight on table (kg) | 8000 |
| T-slot (width – number of slot x spacing) (mm) | 8-22×170 |
| Spindle | |
| Standard spindle speed (rpm) | 6000 |
| Spindle taper | BT60φ190 |
| Spindle drive mode | direct drive |
| Spindle power (KW) | 22 |
| Feed | |
| Cutting feed (mm/min) | 8000 |
| Rapid feed (m/min) | 15/15/12 |
| Linear guide rail width / number of tracks (mm) | 2-45X2-45Y:Z box guideway |
| Others | |
| Three-axis motor power (KW) | 7.0/4.5/7.0 |
| Positioning accuracy (mm) | 0.035/1000 |
| Repeatability (mm) | 0.025 |
| Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D |
| Coolant tank (Pump) (HP) | 0.48 |
| Power requirement (KVA) | 45 |
| Air pressure (bar) | 6.5 |
| Machine weight (t) | 25 |
| Machine dimension (mm) | 7800×4450× 4950 |

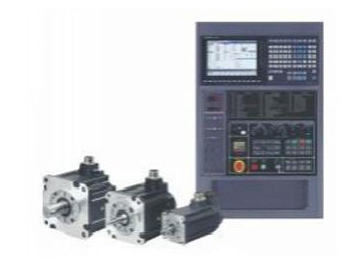

- Control system and motor

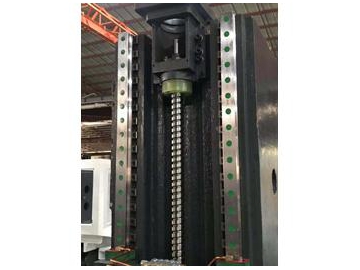

- Box guideway

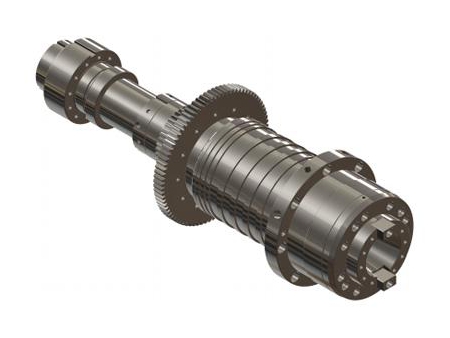

- Mechanical spindle, gear drive

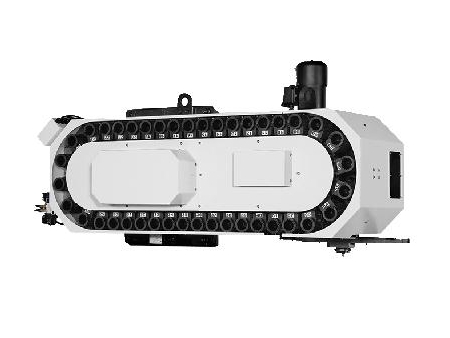

- Chain-type tool magazine
