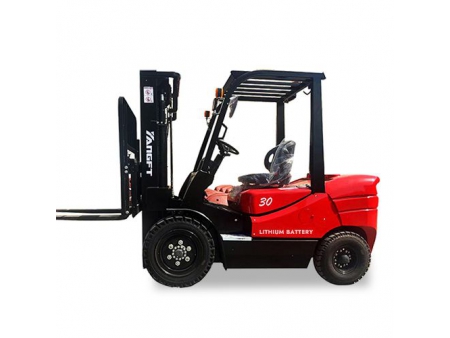

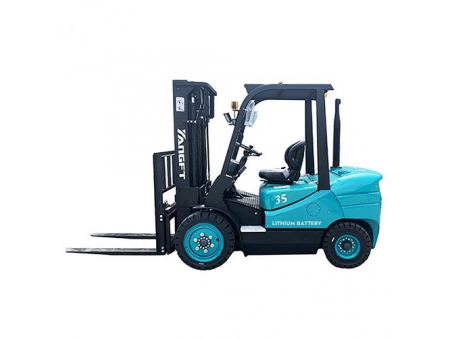

Electric Forklift 2-4 Tonne
C Series
This forklift integrates proprietary technology, a durable high-strength mast, and a smart self-adjusting descent and cushioning system to prevent cargo impact, emphasizing safety and reliability.
- 2000-4000 kg
- 3000 mm
- 19-20 km/h
- 2410-2610 mm
- The forklift is made of high-strength materials and enjoys longer service life.
- Optional suspended seat is provided. The suspended seat allows free movement and the adjustable backrest provides comfortable driving experience.
- The forklift has the advantages of a compact design, a low center of gravity and a small turning radius, which ensures safe and stable material handling function.
- The OPS and suspended seat (optional) can move freely forward and backward, with an adjustable backrest angle, providing a comfortable work environment for the operator, while the OPS shutdown function ensures driver safety.
- The mast and the steering axle employ a shock absorption design to smooth out shock impetus.
Material handling tasks in warehouses, logistics centers and delivery centers.
Battery Electric Motor (Optional)
The battery and electric motor feature intelligent control, ensuring safe and stable operation with low noise, eco-friendliness, energy efficiency, and strong durability.
Seat (Optional)
Equipped with an OPS system and ergonomic design, offers multiple adjustable features to reduce operator fatigue and enhance comfort during long periods of use.
Mast (Optional)
This option features 2-3 stage standard masts and multi-stage full free lift masts, offering a high degree of customization to meet various operational requirements.
Load-Backrest
Designed to prevent cargo from slipping, this feature enhances safety throughout the operation.
Control System (Optional)
The integrated dashboard, along with ergonomically designed steering, throttle, and brake controls, ensures safe, convenient, and comfortable operation.
Overhead Guard
Offers customizable options for increased width and height to meet specific operational needs and is designed to ensure driver safety.
Control Valve
With a thoughtful design, ensures straightforward operation and offers customization options to meet various needs.

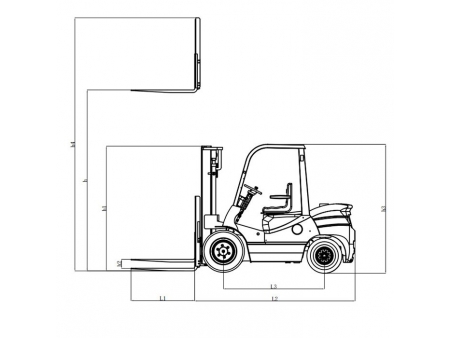

| Model | | | | | | ||||
| Characteristics | Power | Battery | |||||||
| Capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 | |||
| Load Centre | mm | 500 | 500 | 500 | 500 | 500 | |||
| Lift Height | h | mm | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Min. Turning Radius | Wa | mm | 2410 | 2410 | 2450 | 2410 | 2850 | ||
| Performance | Travel Speed | Load | km/h | 20 | 20 | 20 | 20 | 19 | |
| Lift Speed | Load | mm/s | 450 | 450 | 450 | 450 | 400 | ||
| Dimensions | Total Length | Without fork | L2 | mm | 2700 | 2700 | 2700 | 2700 | 2985 |
| Total Width | b | mm | 1160 | 1160 | 1225 | 1225 | 1360 | ||
| Max. Lifting Height | h4 | mm | 4245 | 4245 | 4265 | 4265 | 4315 | ||
| Mast Height | h1 | mm | 2070 | 2100 | 2115 | 2115 | 2195 | ||
| Chassis | Tyre | Front | 7.00-12-12PR | 7.00-12-12PR | 28*9-15-12PR | 28*9-15-12PR | 250-15-20PR | ||
| Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-12PR | ||||
| Wheelbase | L2 | mm | 1700 | 1700 | 1700 | 1700 | 1860 | ||
| Service Weight | No load | kg | 3550 | 3750 | 4260 | 4550 | 5050 | ||
| Power | Battery | Electric tension | V | 76.8 | 76.8 | 76.8 | 76.8 | 76.8 | |
| Capacity | Ah | 175 | 205 | 230 | 230 | 300 | |||
| Motor | Drive motor | kW | 10 | 10 | 10 | 10 | 13 | ||
| Oil pump motor | kW | 12 | 12 | 12 | 12 | 14 | |||
-
