Electric Forklift 2-4 Tonne
T Series
The forklift interior is specially designed with plastic storage compartments for conveniently holding items such as water bottles, notebooks, etc. In addition, the electrical and other systems are integrated into an enclosure featuring with a removable side panel, which removes the need for lifting equipment during maintenance and inspections. This significantly reduces service costs and simplifies maintenance.
- 2000-4000 kg
- 3000 mm
- 17-18 km/h
- 2240-2530 mm
- The forklift is equipped with a durable frame and the side cover is removable, which makes it more convenient to inspect and maintain the forklift.
- The electrical system is integrated with other systems.
- The steering wheel is user-friendly and eases operator arms and shoulders’ fatigue.
- The OPS and suspended seat (optional) enhance comfort by providing a seat with a safety belt and an adjustable steering wheel, allowing for customization based on different operators or tasks. When the operator leaves the forklift, the OPS seat will automatically stop the vehicle.
- Optional suspended seat is available. The suspended seat allows free movement and the adjustable backrest enhances comfort.
- The mast is designed to provide a wide vision that guarantees driving experience.
Material handling in warehouses, logistics centers and distribution centers.

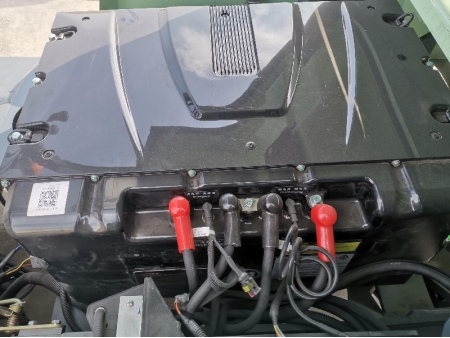

Battery Electric Motor (Optional)
The battery and electric motor are equipped with intelligent controls that provide safe and stable operation. They operate quietly, are environmentally friendly, energy-efficient, and built for long-lasting durability.
Seat (Optional)
Incorporating an OPS system with an ergonomic design, this seat features various adjustable settings to alleviate operator fatigue and enhance comfort during prolonged use.
Mast (Optional)
Available with 2-3 stage standard or multi-stage full free lift masts, offering extensive customization to meet a variety of operational requirements.
Load-Backrest
This design prevents cargo from slipping, thereby enhancing safety during operations.
Control System (Optional)
The integrated dashboard, along with ergonomically designed steering, throttle, and brake controls, ensures safe, convenient, and comfortable operation for the user.
Overhead Guard
Designed to enhance driver safety, also offers options for increased width and height customization to meet specific operational requirements.
Control Valve
With a practical design, facilitates straightforward operation and offers customization options to suit various needs.
Storage Compartment
This compartment is designed for easy access, ideal for holding small items such as water bottles, documents, and pens.
Model | | | | | | ||||
Characteristics | Power | Electric | |||||||
Capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 | |||
Load Centre | mm | 500 | 500 | 500 | 500 | 500 | |||
Lift Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | |||
Min. Turning Radius | mm | 2240 | 2240 | 2445 | 2495 | 2530 | |||
Performance | Travel Speed | Load | km/h | 17 | 17 | 19 | 19 | 18 | |
Lift Speed | Load | mm/s | 500 | 500 | 450 | 450 | 380 | ||
Gradeability | % | 20 | 20 | 20 | 20 | 20 | |||
Dimensions | Total Width | With fork | L1 L2 | mm | 3810 | 3810 | 3775 | 3820 | 3920 |
Without fork | L2 | mm | 2650 | 2650 | 2705 | 2750 | 2850 | ||
Total Length | mm | 1160 | 1160 | 1225 | 1225 | 1225 | |||
Max. Lifting Height | h4 | mm | 4220 | 4220 | 4265 | 4265 | 4275 | ||
Mast Height | h | mm | 3000 | 3000 | 3000 | 3000 | 3000 | ||
Chassis | Tyre | Front | 7.00-12-12PR | 7.00-12-12PR | 28×9-15-12PR | 28×9-15-12PR | 250-15-16PR | ||
Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | ||||
Wheelbase | L3 | mm | 1600 | 1600 | 1700 | 1700 | 1800 | ||
Service Weight | No load | kg | 3550 | 3750 | 4380 | 4680 | 5050 | ||
Power | Battery | Electric tension | V | 76.8 | 76.8 | 76.8 | 76.8 | 76.8 | |
Capacity | Ah | 175 | 205 | 230 | 230 | 280 | |||
Motor | Oil pump motor | kW | 12 | 12 | 12 | 12 | 14 | ||
Traction motor | kW | 10 | 10 | 10 | 10 | 13 |
-
