Diesel Forklift 2-4 Tonne Manufacturer

Diesel Forklift 2-4 Tonne

Request a Quote

View All: http://yangft-forklift.com/1-5-diesel-forklift.html

C Series

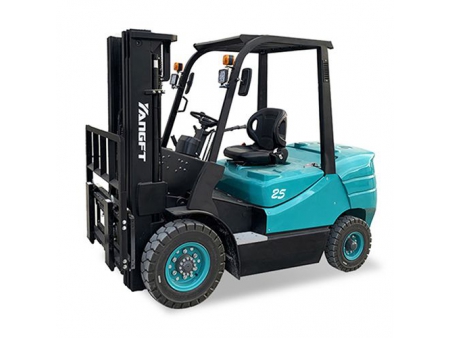

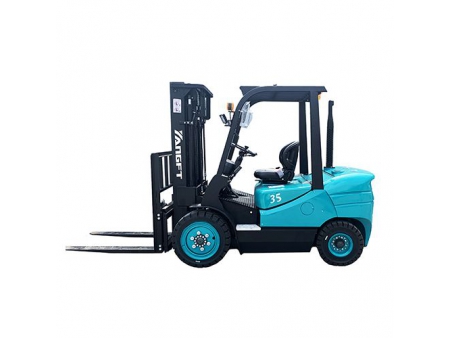

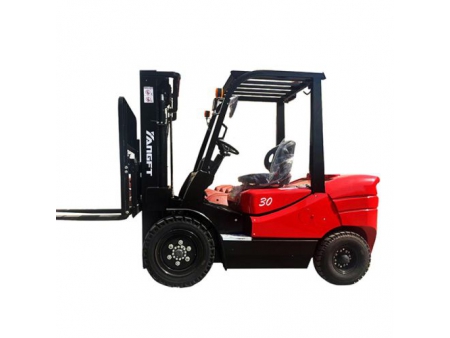

The 4-cylinder diesel forklifts adopt a design of a low center of gravity to guarantee stability in operation. With a small turning radius, they can be used in various confined space.

As one of our flagship products in our company, this forklift truck has undergone advanced computer modelling to achieve an optimal, stable low centre of gravity, which has been effectively applied in our product design. The integrated welding of high-strength steel further emphasizes the superior safety and reliability of the C-Series forklift trucks.

2000-4000 kg

3000 mm

19-20 km/h

2410-2610 mm

Features

Streamlined design: a sleek, patented appearance with smooth handling.
Hydraulic drive dystem: the C-series diesel forklift offers stable, efficient driving performance.
High power and torque: with impressive load capacity and travel speed, it meets different operational demands.
Optimized low center of gravity: computer-simulated modeling has allowed for the ideal low center of gravity, ensuring greater stability and safety, especially during transport, with a high-strength steel body.

Forklift Truck Components

Engine (Optional)

With optional advanced engines from ISUZU, Mitsubishi, Kubota, Yanmar and Euro3/5, these engines combine fuel efficiency with environmental responsibility and reliable durability, ensuring long-lasting performance and easy maintenance.

Seat (Optional)

Equipped with an OPS system and ergonomic features, this system offers multiple adjustable settings to reduce operator fatigue and ensure long-term comfort during extended use.

Mast (Optional)

Available with standard 2-3 stage masts and multi-stage full free lift masts, extensive customization options are available to meet a variety of operational requirements.

Load-Backrest

Designed with a load-backrest, which prevents cargo from slipping, ensuring enhanced safety during operation.

Control System (Optional)

Featuring an integrated dashboard and ergonomically designed steering, throttle, and brake controls, which ensures safe, easy, and comfortable operation for the driver.

Overhead Guard

Prioritizing driver safety, this guard can also be customized with options for extended width and height to meet specific operational needs.

Control Valve

It is built with a user-friendly design, offering straightforward operation and customizable options to suit diverse requirements.

Applications

Material handling in limited space, such as factories and workshops.

Technical Specifications

Model					CPCD20	CPCD25	CPCD30	CPCD35	CPCD40
Characteristics	Power				Diesel
	Capacity			kg	2000	2500	3000	3500	4000
	Load Centre			mm	500	500	500	500	500
	Lift Height		h	mm	3000	3000	3000	3000	3000

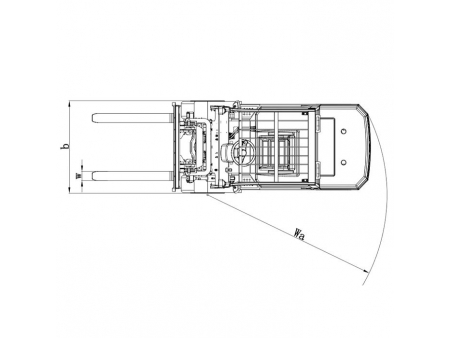

	Min. Turning Radius		Wa	mm	2410	2410	2410	2410	2850
Performance	Travel Speed	Load		km/h	19	19	20	20	19
Performance	Lift Speed	Load		mm/s	500	500	480	480	400

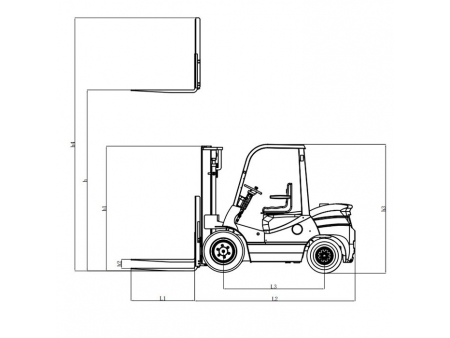

Dimensions	Total Length	With fork	L1 L2	mm	3750	3750	3770	3770	4055
	Total Length	Without fork	L2	mm	2680	2680	2700	2700	2985
	Total Width		b	mm	1160	1160	1225	1225	1360
	Max. Height		h4	mm	4245	4245	4265	4265	4315
	Mast Height		h1	mm	2085	2085	2100	2100	2195
Chassis	Tyre	Front			7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15-12PR	250-15-20PR
	Tyre	Rear			6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR
	Wheelbase		L3	mm	1700	1700	1700	1700	1860
	Service Weight	No load		Kg	3600	3850	4300	4600	5100
Power	Engine	Model			C240	C240	C240	C240	4JG2
		Rated power	4JG2	kW/r.p.m	35.4/2500	35.4/2500	35.4/2500	35.4/2500	46.0/2450
		Rated torque		Nm/r.p.m	138/1800	138/1800	138/1800	138/1800	186/1800
		Cylinders			4	4	4	4	4

Do drivers need to take training before driving light-duty forklifts?

Yes, drivers need to take training before driving forklifts. It’s important to know how to operate forklifts correctly to increase productivity and prevent accidents.

How to maintain industrial forklifts?

Inspecting forklifts before use can help you identify problems early and ensure safety.
Regularly cleaning and lubricating components can improve service life of forklifts.
It’s also important to make a maintenance timetable, regularly inspect and replace components based on the maintenance recommendations.
