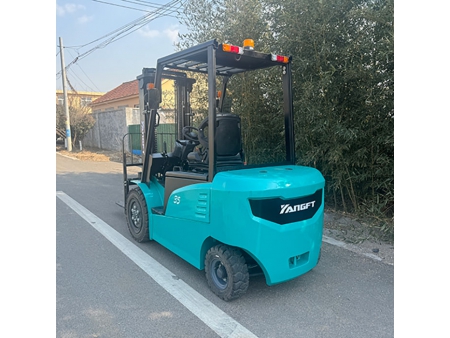

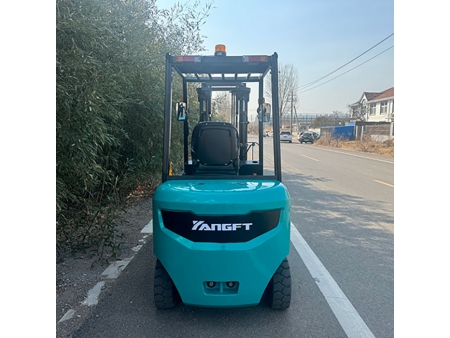

Electric Forklift 2-4 Tonne H Series
NA Series
- 2000-3500 kg
- 3000 mm
- 12-14 km/h
- 2250-2350 mm
- The light-duty electric forklifts are designed for various material handling tasks across different working environments, including confined spaces and sites with complex terrain.
- These electric forklifts are available with optional lead-acid batteries and lithium batteries. They feature low noise levels and are more aligned with environmental protection requirements. Designed with simplicity in mind, our electric forklifts are quiet and compact, with a minimal turning radius that provides excellent manoeuvrability.
High-Rigidity Mast and Integrated Frame Structure
The high-rigidity mast, combined with an integrated vehicle frame, increases the overall strength of the forklift by 20%, significantly improving safety and durability during operation.
Advanced Controller and Motor System
Equipped with advanced controllers and motors, the system provides comprehensive protection against short circuits and open circuits. It is environmentally friendly, produces low noise, offers short braking response time, and features low energy consumption. The compact and streamlined vehicle body design ensures a small turning radius, enabling operation in narrow aisles and making handling more convenient and efficient.
Multifunctional LCD Panel and Safety Features
The multifunctional LCD dashboard is ergonomically designed for easy readability and operator convenience. The electric forklift is equipped with a dedicated emergency braking switch, allowing immediate braking in dangerous situations and providing enhanced protection for operator safety.
| Model | | | | |||||
| Characteristics | Power | Lithium battery/lead-acid battery | ||||||
| Capacity | kg | 2000 | 2500 | 3000 | 3500 | |||
| Load Centre | mm | 500 | 500 | 500 | 500 | |||
| Lift Height | h | mm | 3000 | 3000 | 3000 | 3000 | ||
| Performance | Travel Speed | Load/no load | km/h | 13/14 | 13/14 | 13/14 | 12/13 | |
| Lift Speed | Load/no load | mm/s | 460/500 | 460/500 | 460/500 | 460/500 | ||
| Dimensions | Total Length | Without fork | L2 | mm | 2520 | 2520 | 2630 | 2635 |
| Total Width | b | mm | 1160 | 1160 | 1225 | 1225 | ||
| Max. Lifting Height | h4 | mm | 4030 | 4030 | 4220 | 4220 | ||
| Mast Height | h1 | mm | 2100 | 2100 | 2120 | 2120 | ||
| Outside Turning Radius | R | mm | 2250 | 2250 | 2350 | 2350 | ||
| Chassis | Tyre | Front | 7.00-12-14PR | 7.00-12-14PR | 28*9-15-14PR | 28*9-15-14PR | ||
| Rear | 18*7-8-14PR | 18*7-8-14PR | 18*7-8-14PR | 18*7-8-14PR | ||||
| Wheelbase | L2 | mm | 1650 | 1650 | 1750 | 1750 | ||
| Power | Battery | Lithium battery: voltage/capacity | V/Ah | 80/230 | 80/230 | 80/230 | 80/280 | |
| Lead acid battery: voltage/capacity | V/Ah | 80V/400 | 80V/400 | 80V/500 | 80V/500 | |||
| Motor | Traveling motor (permanent magnet） | kW | 10 | 10 | 15 | 15 | ||
| Hydraulic motor (permanent magnet) | kW | 12 | 12 | 18 | 18 | |||
-
