Request a Quote

SHO-DDR02 Medical Imaging

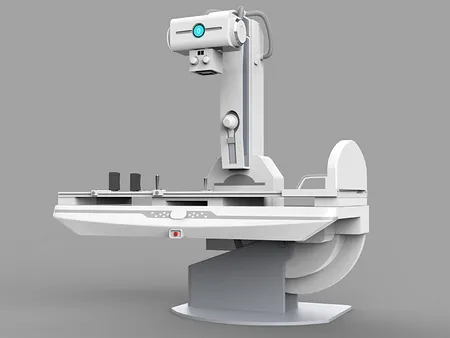

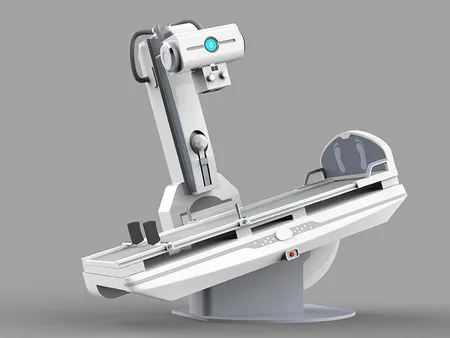

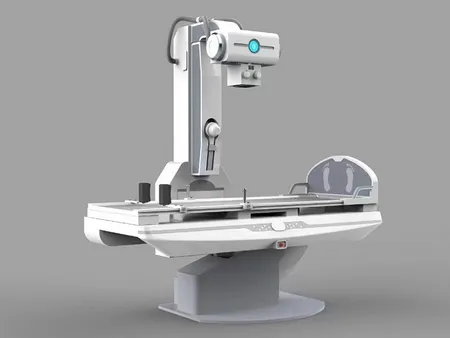

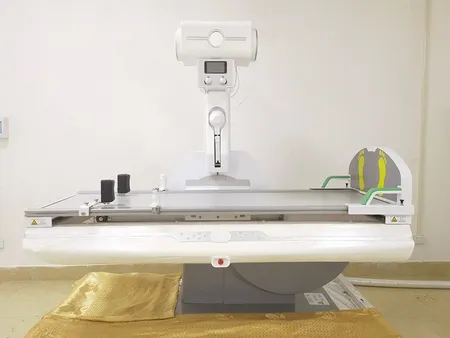

The digital gastrointestinal machine is designed for high-performance, long-duration diagnostics, making it ideal for gastrointestinal examinations and fluoroscopy procedures. With its high-frequency inverter and high-voltage generator, you get a constant and stable DC output, ensuring clear and consistent imaging throughout every procedure. Equipped with a dynamic flat panel detector, this system allows for direct digital radiography and fluoroscopy in multiple positions. The high-density grid further enhances X-ray quality, while its low-dose fluoroscopy design provides safe and reliable imaging for gastrointestinal disease diagnosis.

This compact and versatile digital gastrointestinal machine supports radiography, fluoroscopy, stomach exams, and gastrointestinal imaging, giving you a complete diagnostic solution. Its wide-range movement and automatic DR functionality reduce patient repositioning, making your workflow smoother and more efficient.

Specifications
Ambient Conditions
  • Ambient temperature:10℃ to 40℃
  • Relative humidity:30-75%
  • Atmospheric:70-106 kPa
X-Ray Generator
  • Model:SHO-DDR01 Series
  • Output power (kW):50, 65, 80
  • Current (mA):10-630, 10-800, 0-1000
  • Voltage (kV):40-150, 40-150, 40-150
  • mAs (mAs):0.1-630, 0.1-800, 0.1-1000
  • Exposure time (ms):1ms-6300
  • Focus size (mm):0.6/1.2
X-Ray Tube
  • Anode type:Rotating Anode
  • Focal Spot value:0.6 mm / 1.2 mm
  • Maximum voltage:150 kV
  • Revolving speed of anode:2800 rpm
  • Inherent filtration: 1.0 mmAl
  • Anode heat storage capacity:300 kHU
  • Maximum cooling rate of anode:870 W
  • Housing heat storage capacity:900 kJ
X-Ray Detector (Iray Brand Flat Panel Detector)
  • Type:Amorphous Silicon
  • Scintillator:Cesium Iodide
  • Active Area:17×17 inch (43×43 cm)
  • Active Pixel:3072×3072
  • Pixel Pitch:139 um
  • Limiting resolution:36 Lp/cm
  • Data acquisition time:≤2s

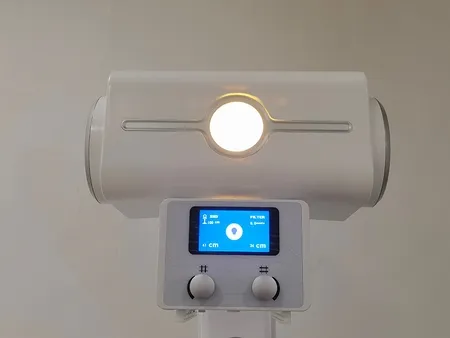

Collimator
  • Type:Electric and multileaf collimator
  • Power:150 W; 24 VAC 1
  • Lamp timer:Automatic illumination with timer for lamp (30 s)
  • Filtration:1.2 mmAL
Mobile Patient Table
  • Type:Table for gastrointestinal imaging
  • Tabletop lateral movement:250 mm

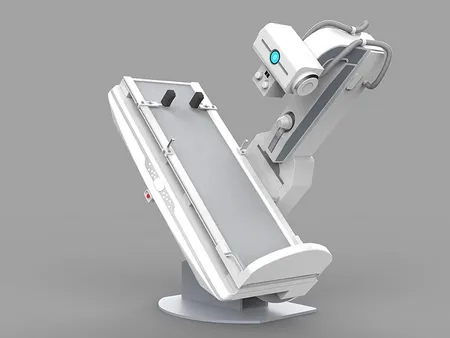

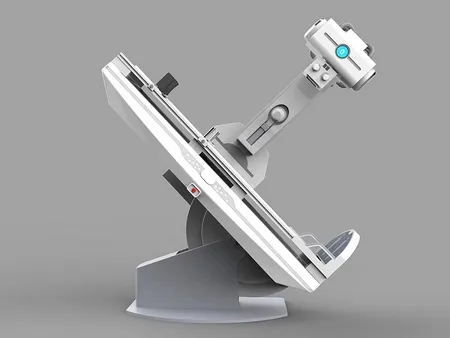

  • Rotating range:-30° to 30°
  • Height of bed surface:950 mm
  • Bed bearing weight:135 kg
  • Bed rotation angle range and deviation: 90° to 0° to -20°
Mechanical movement
  • SID:1000-1800 mm
  • Column lateral movement range:0-1000 mm
Workstation
  • Monitor:23’’ LCD Dell brand
  • CPU:≥2.8 GHz
  • Memory:≥4 GB
  • HDD:≥1 TB
  • DICOM3.0:Query for integration with any PACS
  • Functions:Import/export function

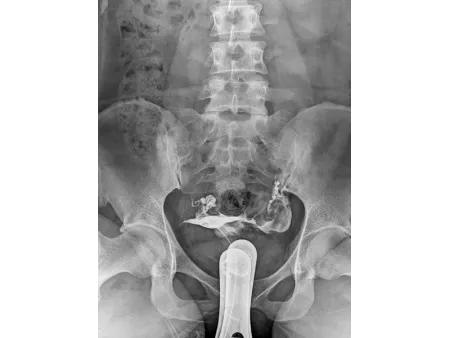

X-Ray Imaging

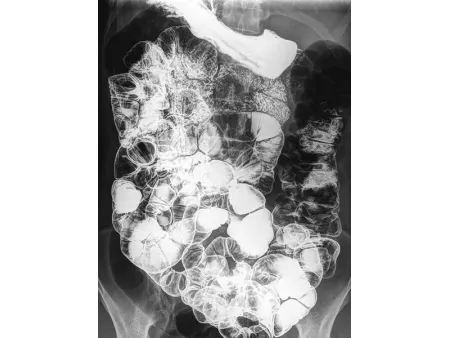

The digital gastrointestinal machine delivers outstanding performance in its fluoroscopy system. The dynamic amorphous silicon flat panel detector is designed for real-time imaging, featuring a 17 × 17-inch image sensor with directly deposited cesium (CsI) technology. This ensures high-quality, low-dose imaging with a frame rate of up to 30 fps.

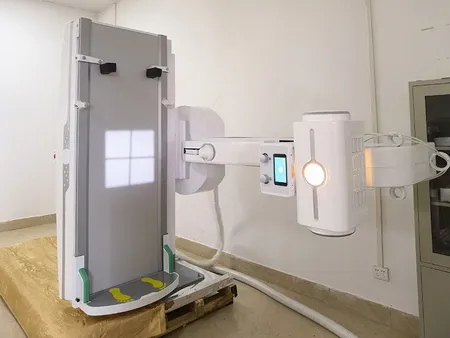

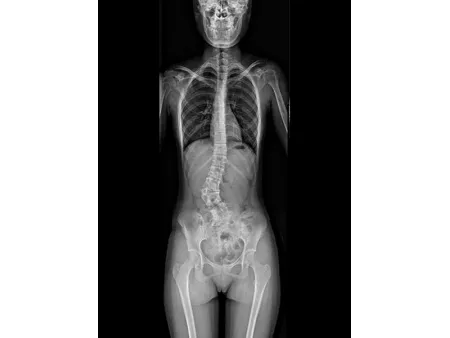

For radiography, the machine is equipped with a retractable tube arm with a maximum source-to-detector distance (SID) of 1800 mm, allowing for comprehensive, blind-spot-free digital radiography of all body regions. This provides precise and detailed imaging, offering reliable support for gastrointestinal disease diagnosis.

Looking for a flexible and high-performance digital gastrointestinal machine? Contact us today to find the right solution for your facility!
