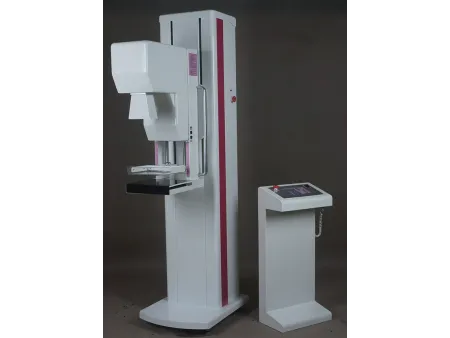

The digital mammography system is designed to provide high-quality imaging and long-lasting performance. Featuring a China-made professional molybdenum X-ray tube, it offers an ultra-small focal spot and high heat capacity, ensuring sharp, detailed images even during extended operation.

With a self-developed 40kHz high-voltage generator and dual-inversion technology, this system delivers stable X-ray output, improved image clarity, and reduced radiation dose, giving you the confidence to perform accurate breast examinations with patient safety in mind.

The CMOS flat panel detector, known for its high X-ray sensitivity, captures high-resolution breast images with exceptional detail. Paired with patented "Console" software, this system features cutting-edge mammography post-processing algorithms, optimizing image quality and enhancing diagnostic precision.

With a resolution of 60 lp/cm, it can detect calcifications as small as 0.1 mm, significantly improving the accuracy and sensitivity of breast X-ray diagnostics. Specifically designed for early breast cancer detection, this system helps you identify abnormalities with confidence and speed.

• Generator Type: High Frequency Inverter 80kHz
• Input Power: Single Phase 220 VAC, 50/60 Hz
• kV: 20-35 kV
• mAs: 10-510 mAs
• kw: 6 kw

• Focal Spot Size: Dual Focus 0.1/0.3 mm
• Target Angle: 10°/15°
• Anode Heat Storage: 210 KJ(300 kHU)

• Electric C-arm: electric lifting column
• Vertical movement: 590 mm
• Isocenter electric rotation: 90º--90º

• Electric compressor: size 18×24 cm
• Maximum pressure: 200 N
• Maximum stroke: 140 mm
• Safe flexible variable speed compression, automatic fast decompression after exposure.
• Focal distance (SID): 650 mm

• Detector size: 10'×12' (effective area 313.5×236.5 mm)
• Pixel array: 4096×3072
• Pixel size: 77 um
• Limiting resolution: 6.49 LP/mm
• Image data: 16 bits
• Image readout time: about 2 s

• 3 GHz main frequency, windows system
• 4G RAM, 1TG hard disk
• DICOM 3.0 interface
• Specialized image acquisition and processing software for breast

• Single phase AC power supply: 220 V±10% 50 Hz 6.2 kVA
