Request a Quote

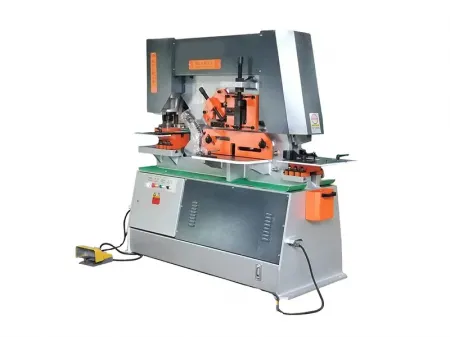

Sheet metal working machine combining functions of shearing, notching, punching and bending

Sheet metal working machine combining functions of shearing, notching, punching and bending

  • Punching pressure: 60-200ton
  • Cutting thickness: 16-40mm
  • Punching diameter: 20-40mm

Our ironworker machine integrates multiple functionalities including metal shearing, punching, notching, and bending. It's designed to efficiently process plates, square bars, round bars, angle bars, channel steels, and I-beams. The intelligent backgauge precisely controls the blanking length, enhancing operational efficiency.

  • Features
  • Specifications
  • Components
Features
  • Advanced Design
    Utilizes finite element analysis and computer-aided optimization for superior performance.
  • Robust Construction
    Features a monolithic steel plate welded structure for exceptional strength, stiffness, and shock resistance.
  • Durable Finish
    Treated with a sanding process and coated with anti-rust paint to prevent corrosion and ensure longevity.
Applications
  • Versatile Processing

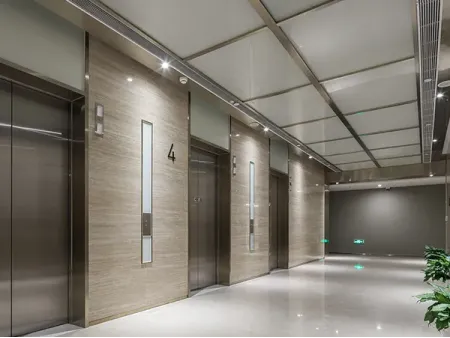

    Ideal for steel structure processing, elevator parts, high and low voltage tower parts, and construction machinery.
  • Specialized Uses
    Suitable for agricultural machinery, wind power generation equipment parts, and food machinery components.
  • Additional Applications
    Effective for the manufacturing of spare parts for trailers, railway wagons, automobiles, and cranes.
Specifications
Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40
Punching pressure 600 KN 900 KN 1200 KN 1600 KN 2000 JN
Max. shearing thickness 16mm 20mm 25mm 30mm 40mm
Max. shearing width 400mm 480mm 600mm 600mm 700mm
Material strength ≤450 N/mm2 ≤450 N/mm2 ≤450 N/mm2 ≤450 N/mm2 ≤450 N/mm2
Shearing angle 8 ° 8 ° 8 ° 8 ° 8 °
Ram stroke 80mm 80mm 80mm 80mm 80mm
Strokes per minute 8/min 8/min 8/min 8/min 8/min
Throat depth 300mm 355mm 400mm 600mm 600mm
Max. punching capacity (diameter×thickness) Ø25×16 Ø30×20 Ø35×25 Ø38×30 Ø41×40
Motor power 5.5kW 5.5kW 7.5kW 11kW 15kW
Gross weight 1800kg 2600kg 4500kg 6800kg 9500kg
Machine dimensions (before packing) (L×W×H) 1700×790×1900mm 1950×900×1950mm 2355×960×2090mm 2680×1040×2300mm 2850×1300×2400mm

Special order for the joist and channel molds is needed.

Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40
Round bar diameter 40mm 50mm 60mm 65mm 70mm
Square bar side length 40mm 50mm 50mm 55mm 60mm
Equilateral angle steel 90° 120×120×12mm 140×140×12mm 160×160×14mm 180×180×16mm 200×200×16mm
Equilateral angle steel 45° 50×50×5mm 50×50×5mm 60×60×6mm 60×60×6mm 80×80×10mm
T-bar steel 125×125×12mm 140×140×12mm 160×160×14mm 180×180×16mm 180×180×16mm
I-beam steel 120×74×5mm 160×86×6mm 160×86×6mm 200×102×9mm 208×124×10.5mm
Channel steel 120×53×5.5mm 160×60×6.5mm 210×75×9mm 280×86×11.5mm 300×89×11.5mm
Components

Configurations

  • Main motor: Siemens
  • Hydraulic pump: Sunny
  • Hydraulic valve: Rexroth
  • Electrical components: Schneider
  • O-ring: Parker
  • Foot switch: Kacon

Standard Accessories

  • A set of punch and die (round die)
  • A set of angle steel blade
  • A set of square and round bar blade
  • A set of shearing plate blade
  • A set of notching blade

Optional Accessories

  • Various tooling for different purposes
  • Square, oval, louver punch and die
  • Channel shear and I -Beam Shear
  • Conveyor table
  • Longer worktable
  • Worktable with linear guide
  • Ø20,32,60mm work-positions.

Other Components

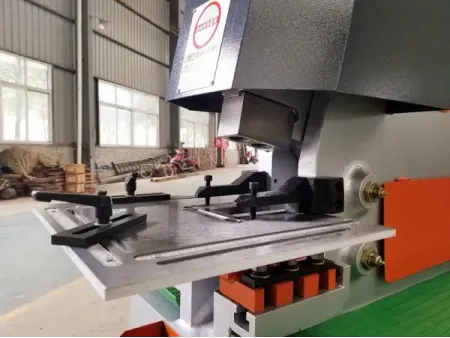

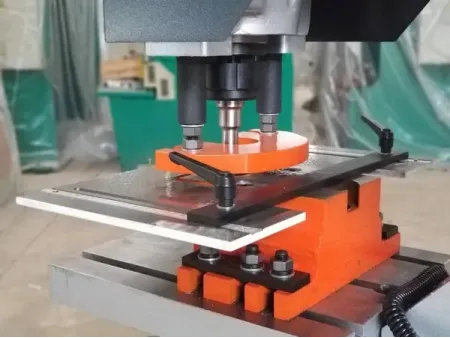

  • Punching Hole
  • Notching Station

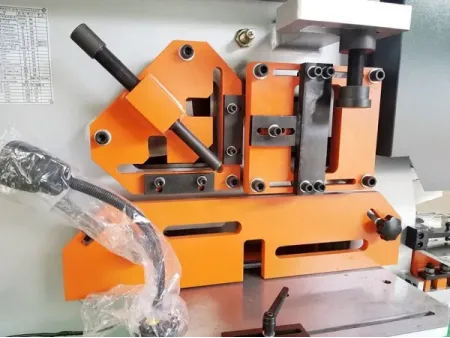

  • Angle Cutting

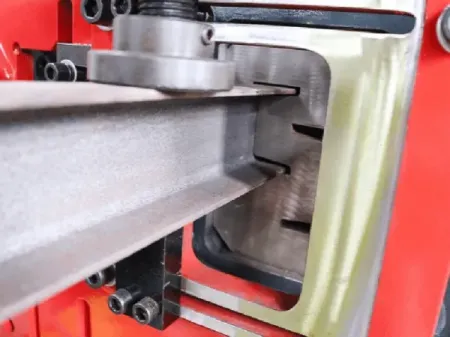

  • Channel Cutting

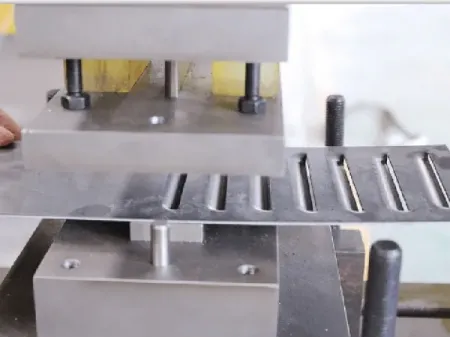

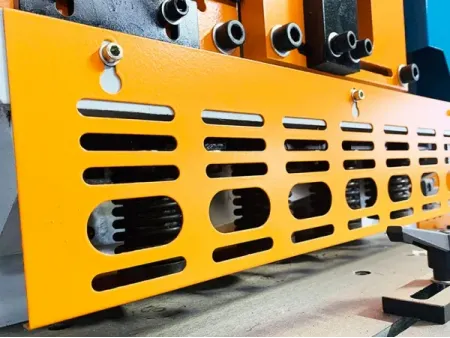

  • Louver Forming
  • Plate Shearing

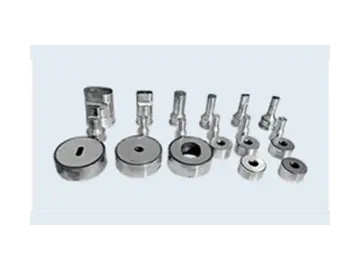

Punch & Die Sets

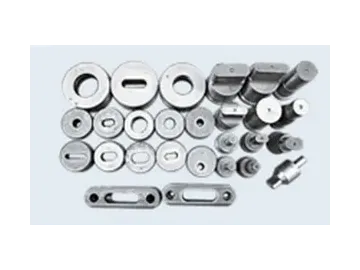

  • Punching Mould

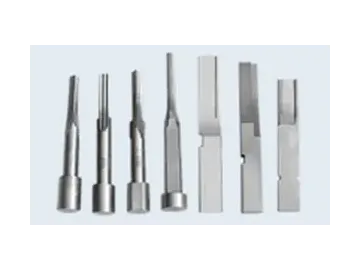

  • Customized Puncher
  • Customized Puncher

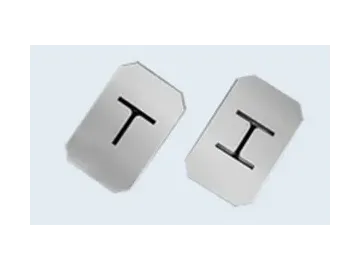

  • T-steel H-steel

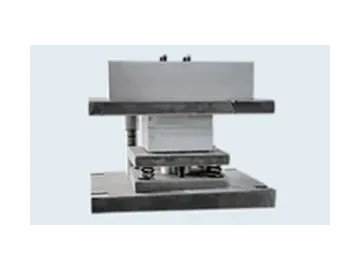

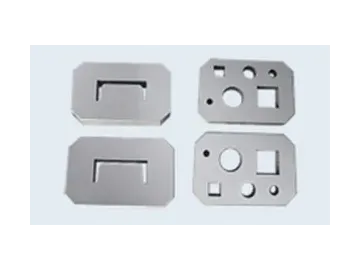

  • Cutting Mould

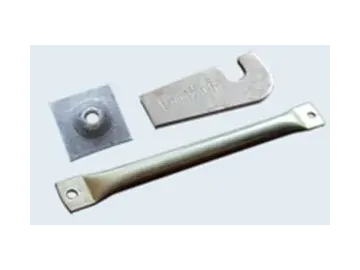

  • Flattening Punching
  • Stretch Forming Die

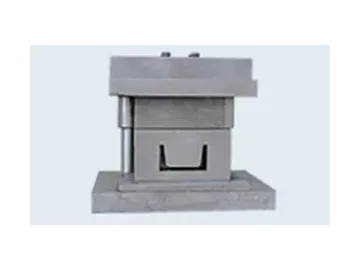

  • Channel Steel Blanking Die

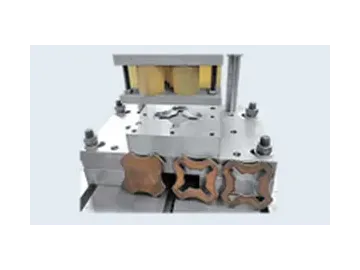

  • Different Forming Die
