Hydraulic bending roll for cylindrical and conical bending

Hydraulic bending roll for cylindrical and conical bending

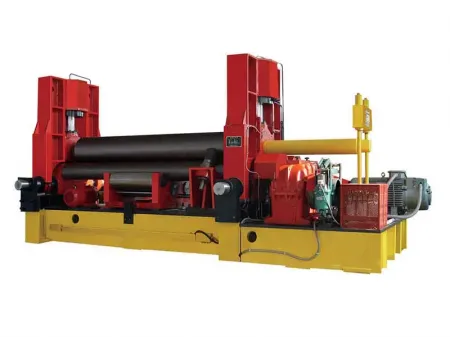

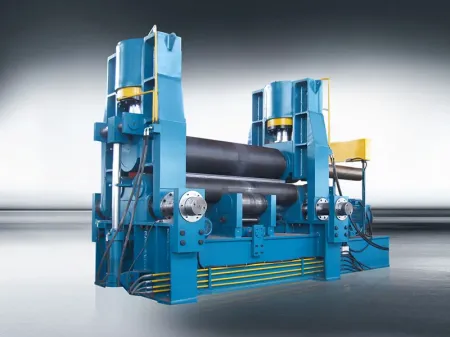

The 3 roll plate bending machine is an essential tool for shaping steel plates into cylindrical forms. It allows for vertical and horizontal adjustments of the top roller, enabling precise control over the bending process. With the capability for pre-bending achieved through asymmetrical positioning of the top roller, this machine ensures efficient and accurate bending operations. Key components include the top roller, bottom roller, horizontal moving device, roller device, main drive system, tipping device, balancing device, frame, and chassis.

  • Features
  • Specifications
  • Components
Features
  • Dual Functionality
    The machine combines pre-bending and rounding simultaneously, enhancing efficiency in production. Components such as the overall base, tipping side frame, fixed side frame, work roll, roller support, main transmission device, upper roll moving device, tipping device, hydraulic pump station, and electronic control system contribute to its versatile functionality.
  • Convenient Operation
    Reverse flip and reset of the top roller are facilitated by the cylinder, while balance adjustment is achieved through the ejector, ensuring ease of operation.
  • Drive Mechanism
    The bottom rollers are driving rollers fixed in position, operated by the main motor through the main reducer. The upper roller, serving as a driven roller, rotates via friction with the steel plate surface. It’s vertical movement is controlled by hydraulic cylinders on both ends.
  • Horizontal Movement
    Horizontal movement of the top roller is driven by a brake motor connected to a sub-reducer, enabling precise adjustments for different bending requirements.
Applications

This 3 roll plate bending machine is ideal for bending and shaping metal sheets, with the capability for pre-bending at the sheet end. It accommodates the rolling of round, curved, and conical workpieces within specified ranges. Widely utilized in shipbuilding, boiler construction, elevator manufacturing, chemical equipment fabrication, and various metal structure and machinery applications.

Specifications
Model Pressure of top roller (Ton) Max. bending thickness (mm) Pre-bending thickness (mm) Max. bending length (mm) Top roller diameter (mm) Bottom roller diameter (mm) Central distance (mm)
W11S-4x2500 25 4 3.5 2500 200 125 160
W11S-6x2500 30 6 5 2500 210 125 160
W11S-8x2000 37 8 6.5 2000 210 135 180
W11S-8x2500 37 8 6.5 2500 235 135 180
W11S-10x2000 37 10 8 2000 235 135 180
W11S-10x2500 55 10 8 2500 250 145 200
W11S-12x2000 65 12 10 2000 250 145 200
W11S-12x2500 75 12 10 2500 265 145 200
W11S-12x3000 75 12 10 3000 290 150 245
W11S-16x2000 75 16 13 2000 265 150 245
W11S-16x2500 100 16 13 2500 300 165 270
W11S-16x3000 130 16 13 3000 330 180 300
W11S-20x2000 100 20 16 2000 300 165 270
W11S-20x2500 130 20 16 2500 330 180 300
W11S-20x4000 230 20 16 4000 440 235 380
W11S-25x2500 190 25 20 2500 380 220 360
W11S-25x3000 230 25 20 3000 410 235 380
W11S-25x4000 270 25 20 4000 490 250 400
W11S-30x2500 230 30 25 2500 410 235 380
W11S-30x3000 270 30 25 3000 450 250 400
Key Components

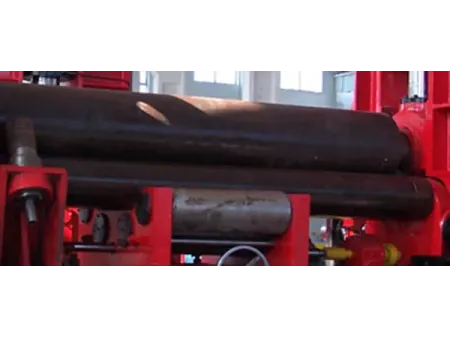

Top Roller
Responsible for shaping steel plates into cylindrical or arc shapes.

  • Upper Roller Device: Comprising the upper roller, main oil cylinder, upper roller bearing seat, and double-row spherical bearing.
  • Main Cylinders: Provide necessary pressure for rolling plates, operating at a working pressure of 19.5MPa.

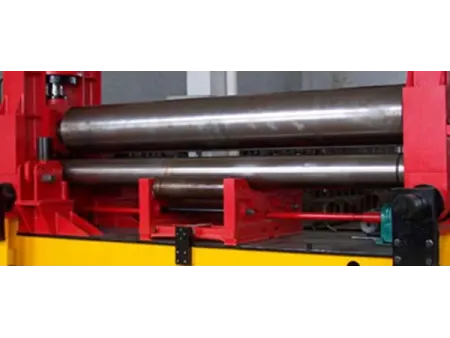

Bottom Roller and Horizontal Moving Device
Provides positive and negative torque for the rolled sheet.

  • Lower Roller Device: Consisting of the lower roller, lower roller bearing seat, lower roller shaft sleeve, and lower roller input gear.
  • Material: Lower roller made of high-quality 45# alloy steel, quenched and tempered, with mechanically strengthened surface meeting stiffness standards.

Roller Support
Facilitates adjustment and movement of roller combinations.

  • Includes roller support sets, wedge mechanism, and spiral mechanism.
  • The screw drives wedges to move closer or separate, raising or lowering the roller combination.

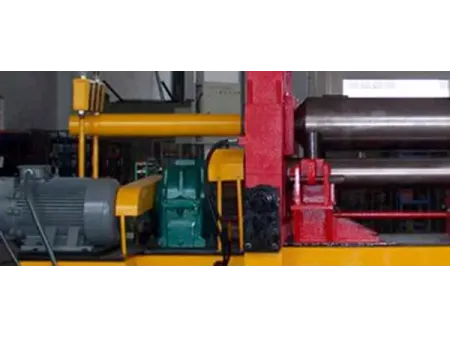

Main Drive System
Provides power and torque for plate rolling.

  • Components: Main motors, reducers, and output gears.
  • Function: Rotates forward and reverse, transmitting torque to the lower roll to drive plate feed and rolling.

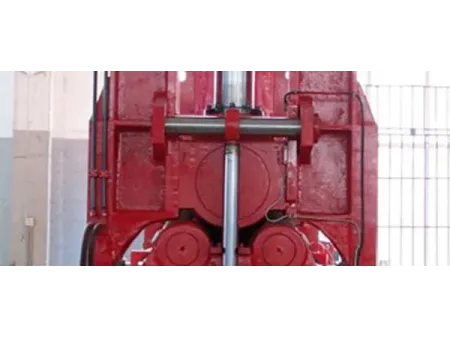

Tipping Device
Used for product discharge

  • Components: Pin, ram, tipping hydraulic cylinder, bearing, etc.
  • Operation: Tipping hydraulic cylinder overturns or resets the tipping frame for easy product removal.

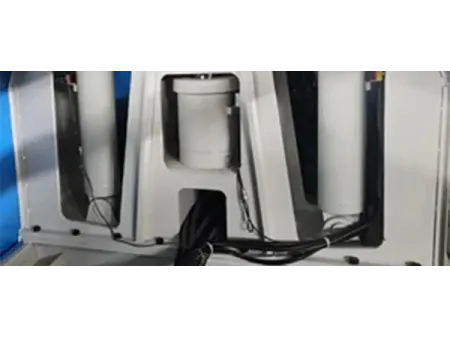

Racks
Provides structural support and movement for top roller .

  • Frame Body: Annealed for weldments, housing main hydraulic cylinder for horizontal movement of top roller.

Hydraulics
Ensures hydraulic power for operation.

  • Components: Gear pumps, valve groups, fluid connectors, hydraulic accessories.
  • System Design: Three circuits including overpressure protection, synchronous circuit, and speed circuit, with simple pipelines for maintenance and debugging.

Other Components

  • Roll Adjustment: Allows for easy adjustment of the top roller's height to change the plate curvature as needed.
  • Horizontal Movement: Enables adjustment of the top roller's position in the horizontal direction to meet specific bending requirements.
  • Versatility: Capable of simultaneous pre-bending and shaping without the need for additional operations, thus improving overall production efficiency.

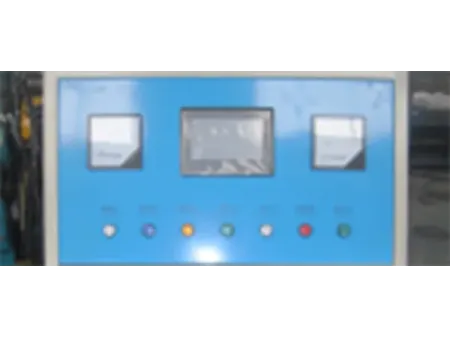

  • CNC System Control: Utilizes an advanced CNC system for flexible and precise operation.
  • End Face Pre-bending Accuracy: Ensures high precision in end face pre-bending for superior finished product quality.
  • Wide Range of Shapes: Suitable for bending tube, curved, or tapered workpieces to meet diverse machining needs. Integrated Production: Offers seamless integration into production processes without requiring additional equipment, streamlining manufacturing operations.
