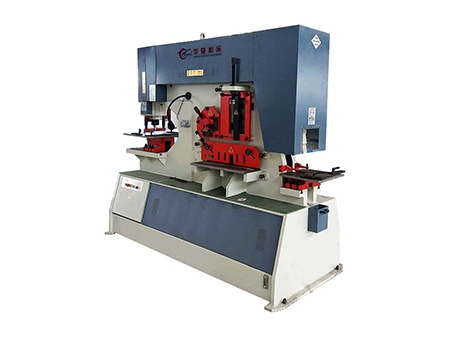

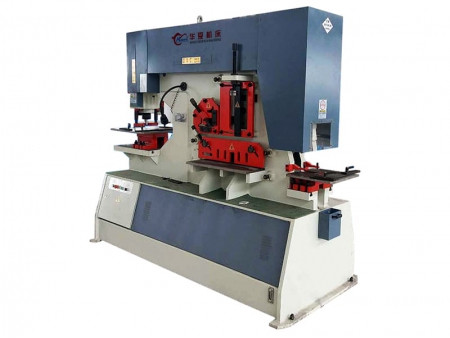

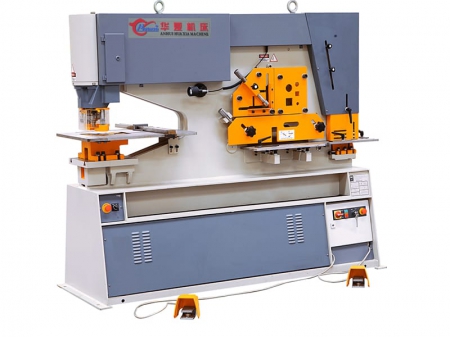

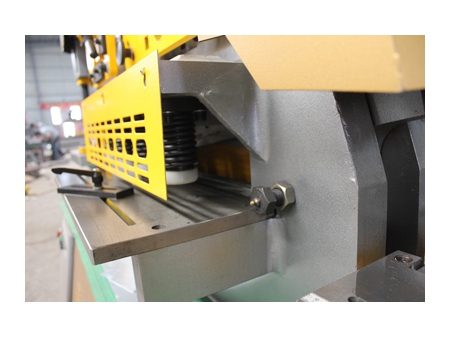

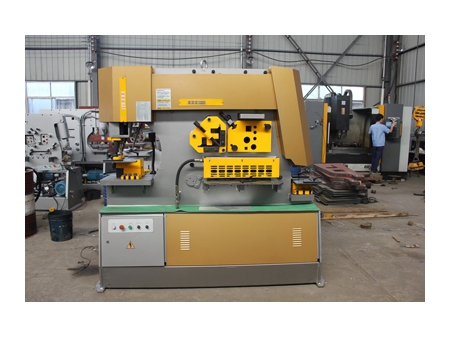

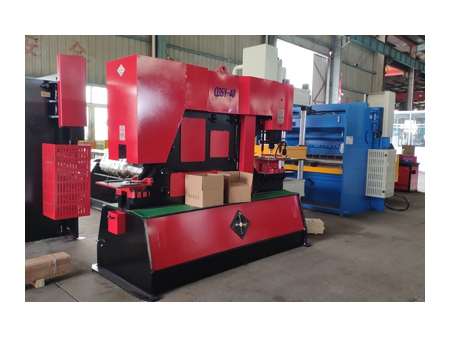

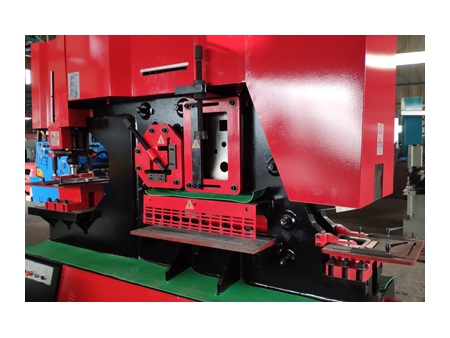

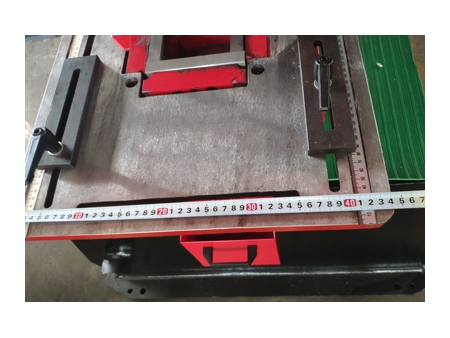

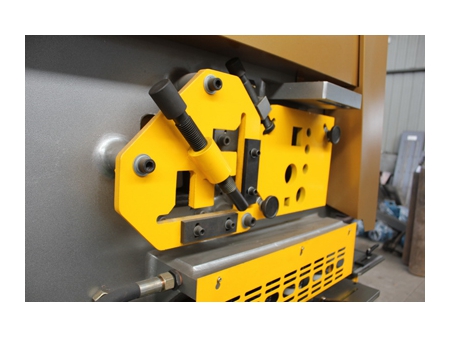

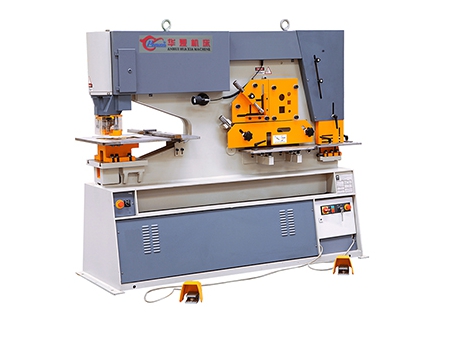

The hydraulic ironworker uses a hydraulic transmission, allowing it to shear punch and die shear a variety of plate steel, square steel, round steel, angle steel, channel steel, and I-beam steel. It is equipped with a shearing gauge.

  • Q35Y-16

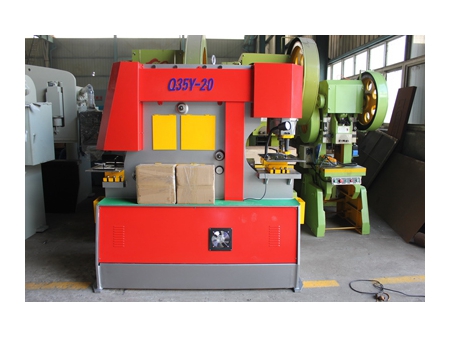

  • Q35Y-20
  • Q35Y-30
  • Q35Y-50
Process Capability
Material Q35Y-16 Q35Y-20 Q35Y-30 Q35Y-50
Round steel mm 45 50 65 80
Square steel mm 40×40 50×50 55×55 70×70
Equilateral angle steel 90 shear mm 120×120×12 140×140×12 180×180×16 200×200×20
Equilateral angle steel 45 shear mm 50×50×5 50×50×5 80×80×8 100×100×20
T-steel 90ºshear mm 125×125×12 140×140×12 180×180×16 200×200×20
T-steel 45ºshear mm 60×60×8 70×70×10 80×80×10 100×100×20
I-steel shear mm 120×74×5 160×86×6 280×124×10.5 400×200×16
U-steel mm 120×53×5.5 160×60×6.5 280×86×11.5 400×200×16
Technical competence
Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40 Q35Y-50
Punching pressure (ton) 60 90 120 160 200 250
Max.shearingthickness of steel plates (mm) 16 20 25 30 40 50
Strength of steel plates ≤450 ≤450 ≤450 ≤450 ≤450 ≤450
Angle of shearing
Shearing sizes of one stroke (TxW) (mm) 16x25
8x400
20x330
10x480
25x330
16x600
30x355
20 x 600
40x335
30x600
30x600
Slider stroke (mm) 80 80 80 80 100 80
Number of stroke (min-l) 11-20 12-20 8-18 6-16 6-16 8-12
Depth of throat (mm) 300 355 400 600 600 600
Punching thickness 18 22 28 30 38 50
Max. diameter of punching (mm) 25 30 35 38 40 35
Main motor (kW) 5.5 5.5 7.5 11 18.5 32
Overall dimensions (LxWxH) (mm) 1730x820 x 1900 1900x900 x 1950 2355x960 x 2200 2800x1100 x 2500 2800x1100 x 2500 3000x1150 x 2600
Net weight (kg) 1800 2400 4000 6500 8000 12500
