Righting angle landing valve.
This valve has two sizes and two model.
DN50 and DN65, connection can be screw and flange.

Specification:
Standard: Certificate to BS 5041-1 Approve by BSI
Body: Copper alloy, Thickness ≥3mm
Hand wheel: Grey cast iron or Aluminum alloy
Black cap: Copper alloy or Plastic
Outlet: Female instantaneous to BS336
Surface: Red or yellow painting
Test pressure: 22.5 bar
Flow rates: More than 8.5L/S
Fully open: 4.5 turns

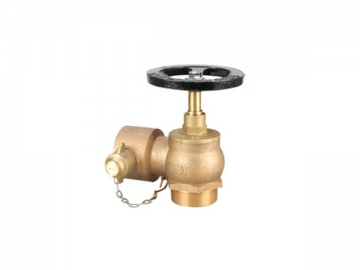

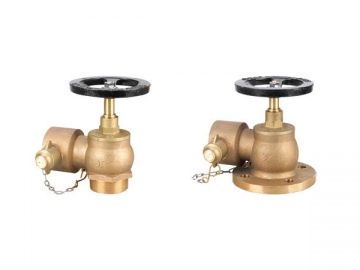

Right angle landing valve

Size	H (mm)	W (mm)	Inlet	Outlet
DN50	198	213	165 F	BS336
DN65	198	223	185 F	BS336
DN65	205	205	2.5’ ’BSPT	BS336
DN65	200	205	2.5’ ’BSP	BS336

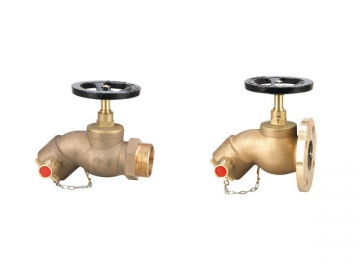

2.Bib nose type landing valve

Size	H (mm)	W (mm)	Inlet	Outlet
DN50	240	225	165 F	BS336
DN65	250	225	185 F	BS336
DN65	225	263	2.5 ’’ BSPT	BS336
DN65	225	263	2.5 ’’ BSP	BS336

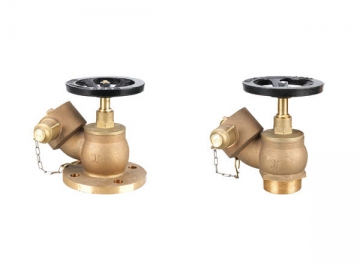

3.Oblique type landing valve

Size	H (mm)	W (mm)	Inlet	Outlet
DN50	198	225	165 F	BS336
DN65	198	235	185 F	BS336
DN65	205	218	2.5 ’’ BSPT	BS336
DN65	200	218	2.5 ’’ BSP	BS336
DN65	200	218	2.5 ’’ BSP(F	BS336

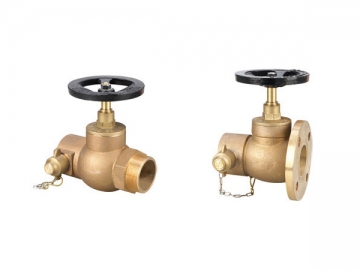

4.Horizontal type landing valve

Size	H (mm)	W (mm)	Inlet	Outlet
DN50	270	180	165 F	BS336
DN65	280	180	185 F	BS336
DN65	235	213	2.5 ’’ BSPT	BS336
DN65	235	213	2.5 ’’ BSP	BS336
