HSS End Mill-2 Flute

HSS End Mill-2 Flute
HSS End Mill-2 Flute
HSS End Mill-2 Flute
Request a Quote
View All: http://metalworking-tool.com/3-1-emb01-hrc65-carbide-square-end-mills-2-flutes.html

This 2-flute end mill is mainly used in milling machines for shaping flat surfaces, side surfaces, grooving, and cutting of workpieces. The 2-flute milling cutter uses high speed steel material, making it suitable for milling workpieces with a tensile strength lower than 1200N/mm².

Parameters

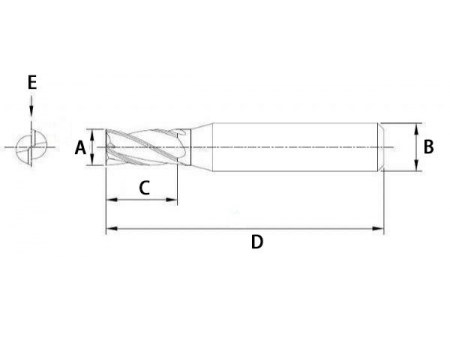

Cutter Diameter mm (A) Shank Diameter mm (B) Flute Length mm (C) Overall Length mm (D) Flute Quantity (E)
1 6 4 60 2
2 6 11 60 2
2.5 6 8 60 2
3 6 11 60 2
4 6 12 60 2
5 6 15 60 2
6 6 19 63 2
8 8 22 66 2
10 10 25 75 2
12 12 35 85 2
14 12 35 90 2
16 16 40 95 2
18 16 40 95 2
20 20 50 110 2
