Laser cutting and engraving technology makes precise and intricate processing of various materials easy, making it invaluable for industries such as crafts, decoration, and prototyping. Products processed with laser cutters often showcase fine details and high-quality finishes, which are difficult to achieve with traditional cutting methods. Our small format CO₂ laser cutting machine is a compact and professional tool designed for automatic engraving and cutting of non-metallic and semi-metallic materials. Utilizing a 1064μm laser beam, this laser cutting machine efficiently etches and cuts materials with precision. The compact size, available in cutting dimensions of 400600mm and 900600mm, makes it highly popular among international customers, often referred to as the 4060 or 6090 cutters.

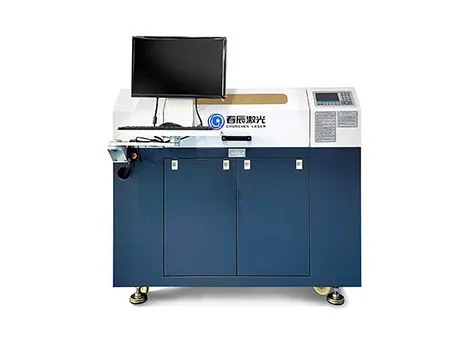

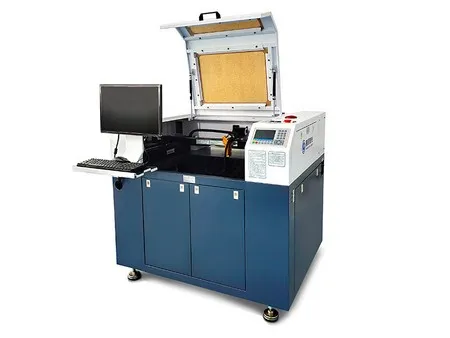

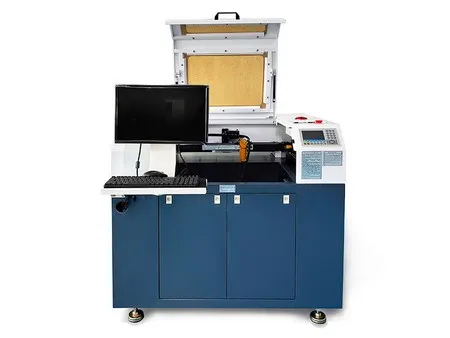

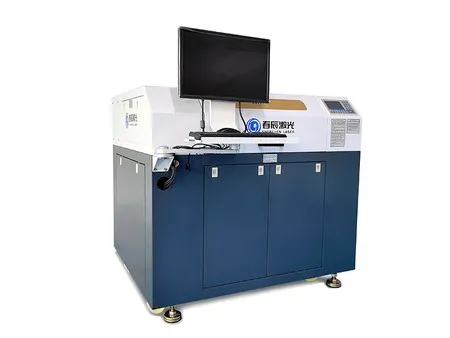

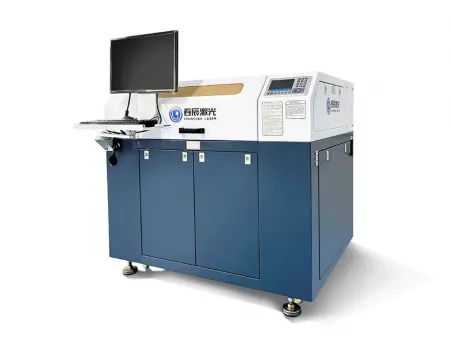

Small Format CO₂ Laser Cutting Machine
Request a Quote
Laser power: 60W-180W(customized)
Positioning accuracy: ±0.01mm
Cutting area: 400*600mm, 900*600mm, 1300*800mm

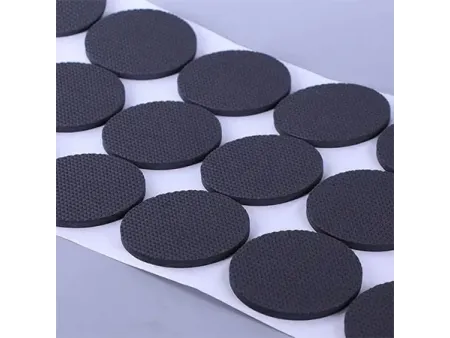

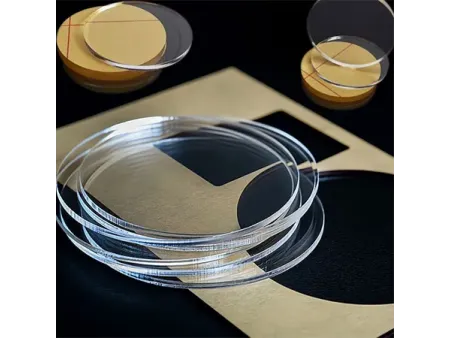

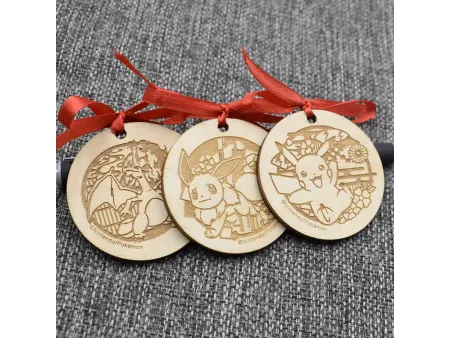

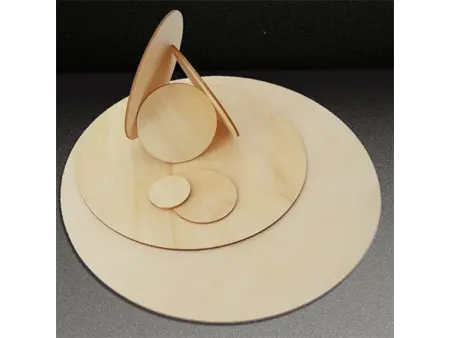

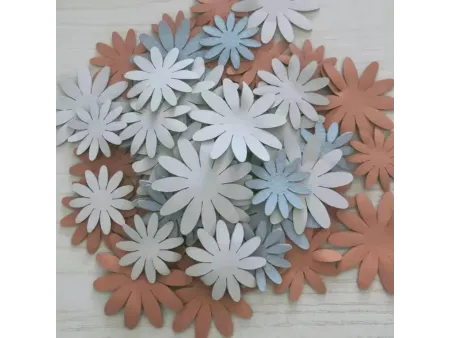

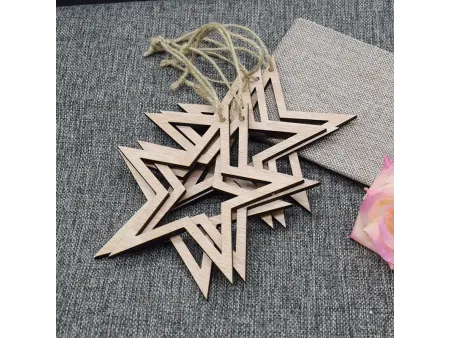

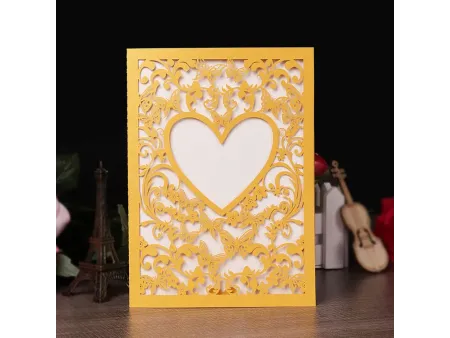

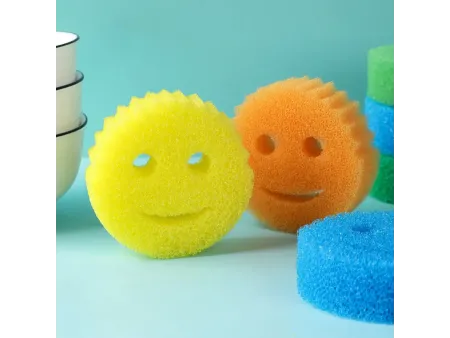

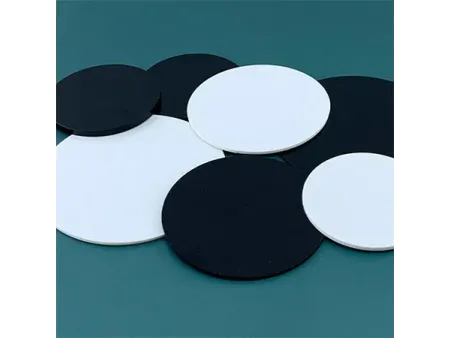

Examples
Specifications
| Model | | | |
| Cutting area | 400*600mm | 900*600mm | 1300*800mm |
| Machine weight | 250kg | 350kg | 420kg |
| Machine dimensions (L*W*H) | 1.2*1*1.1m | 1.5*1.15*1.1m | 1.8*1.5*1.1m |
| Laser power | 60W-180W(customized) | ||
| Positioning accuracy | ±0.01mm | ||
| Min. line width | 0.15-0.3mm | ||
| Total power | < 1600W | ||
| Power supply | 220V/10 50/60HZ | ||
| Control system | High-speed control | ||
| Cooling method | Water cooling | ||
| Control support | Offline control/U disk/color screen/cutting software | ||
| Graphic formats | AI/DXF/BMP/JPG/CAD/CDR/DWG/PLT/DST | ||
| Applicable materials | Fabric, leather, wood, acrylic, PVC, rubber, bamboo, paper, and other non-metallic materials | ||
Configurations
Laser Cutting Head
The fully enclosed laser cutting head is height-adjustable and features a built-in flame retardant system, ensuring excellent cutting results.
Linear Guide Rail
This system uses ball bearings for power transmission between the guide rail and the slider. It has a simple lubrication structure and provides smooth and efficient operation.
Control System
The control system boasts a clear display and stable signal. It is easy to operate with both buttons and a touch screen, offering a fast response time.
Water Chiller
The branded water chiller efficiently lowers the laser tube's temperature, extending its operational time and lifespan.
