Capsule filler for powders, granules and small pellets
- 25,000 to 40,000 Capsules Per Hour
- 000# to 4# Capsule Size

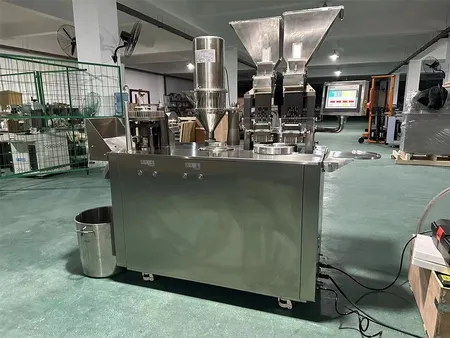

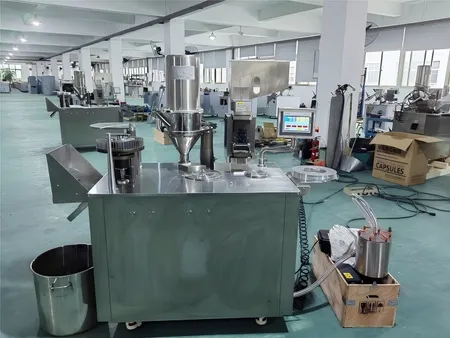

Semi-Automatic Capsule Filling Machine
Request a Quote
Pharmaceutical Machinery
Solid DosageOur dual-outlet semi-automatic capsule filling machine is designed to enhance production efficiency, combining a programmable control system with a user-friendly touchscreen interface. Compared to single-head machines, the dual-head design skillfully achieves faster filling speeds, making it ideal for capsules containing various granules and powders, especially non-moisture-sensitive small pellets. This semi-automatic capsule filling machine not only eliminates the effort associated with a tedious process but also ensures a high level of accuracy, saving costs, and maintaining consistent quality. Utilizing patented technology, it guarantees precise capsule alignment, easy cleaning, and a new safety locking mechanism, significantly improving operational stability and safety.
Applications
Widely used in the pharmaceutical industry for producing antibiotics, pain relievers, and nutritional supplements, such as amoxicillin capsules, ibuprofen capsules, cold medications, and anti-allergy capsules.
Key Features
- Dual-head design doubles its speed than that of single-head capsule filling machines, significantly increasing productivity
- Intuitive touchscreen and user-friendly programmable controls simplify operation
- Equipped with an advanced safety locking mechanism for secure and reliable operation

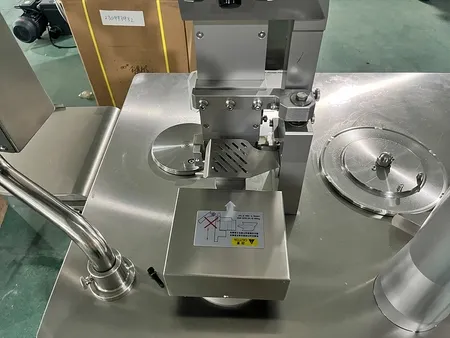

- Features a detachable front panel on the small capsule bucket for convenient cleaning
- Constructed with stainless steel for durability, corrosion resistance, and easy maintenance
Specifications
| Production Capacity | 25,000-40,000pc/h (depending on capsule size) |
| Applicable Capsule Size | 000#, 00#, 0#, 1#, 2#, 3#, 4# |
| Filling Type | Small pellet Granule Non-viscous, dry powder |
| Power | 4.0kW |
| Compressed Air | 0.03m³/min 0.7MPa |
| Vacuum Pump | Suction rate: 63m³/h Pumping rate: 40m³/h |
| Machine Dimensions | 1.14×0.7×1.63m |
| Packaging Size | 1.72×0.87×1.75m |
| Net Weight | 450kg |
| Gross Weight | 550kg |
