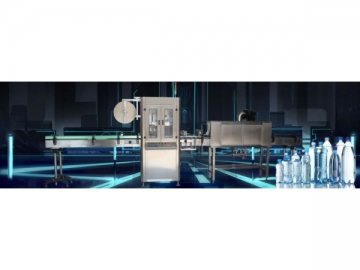

Shrink Sleeve Labeler
Shrink Sleeve Labeling Machine, Labeling Applicator, Shrink Sleeve Label Applicator, Shrink Sleeve Labeling Equipment, Automatic Labeling Machine
Features
1. This shrink sleeve labeling machine adopts only 1 strap for the transmission system and only 3 minutes are needed to replace the strap, which has made the maintenance job easy
2. The labeler is suitable for containers with dimension of 30-85mm. It is unnecessary to change the knife holder
3. Flat cutting section and perfect cutting result
4. The labeling applicator is equipped with a steam shrinkage furnace, which supports high safety degree and high energy efficiency
5. To protect the operators, Zhonghuan has designed this shrink sleeve label applicator with a special insulation layer to keep the furnace body always at a constant temperature. A special door latch is utilized to prevent energy from leakage
6. The auto label feeding structure (optional) has saved on the labor cost considerably
7. Self-developed synchronous transmission system, cutter, and cutter holder are equipped for the automatic shrink sleeve labeler
8. The servo motor from Japan allows for an extremely high running speed and good stability
9. We introduce the micro-computer control system to realize low failure rate and rapid maintenance
Technical Parameters
1. Main labeling part of the labeling applicator
Speed: 280bpm
Power supply: AC 220V, 50/60 Hz
Power: 3kw
Dimension (L *W * H): 2400 *9500 *2500
Air consumption: 50kg/h
Container diameter: 30-85mm
Label range: 40-240 mm (length), 0.035-0.082 mm (thickness)
2. Steam shrinkage furnace of the labeling machine
Power supply: AC 220V, 50/60Hz
Power: 0.75kw
Dimension (L * W * H): 2000 *400 *2100
Air consumption: 35kg/h
Pressure of steam: 5kg/cm²
3. Preset shrinking device of the shrink sleeve labeler
Power of the heat gun: 3kw
Power of the quartz tube: 3kw
Applications
Zhonghuan shrink sleeve machinery has been widely accepted in the bottle packaging lines of beverage, daily chemical, and liquor, among other industries.
