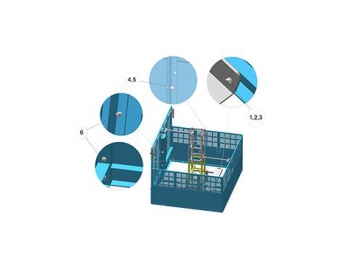

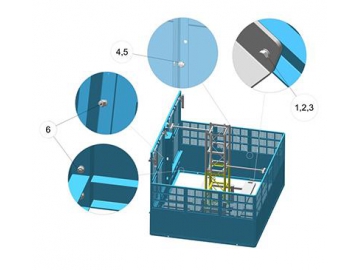

Enclosure
Construction Hoist Cage

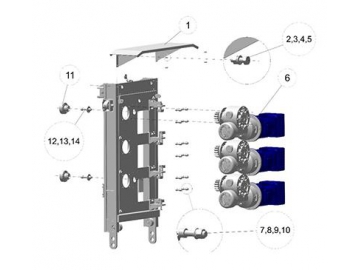

Driving System

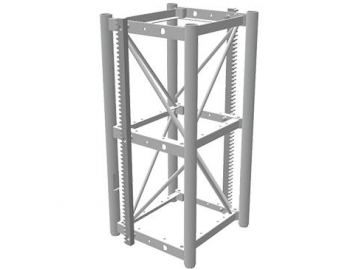

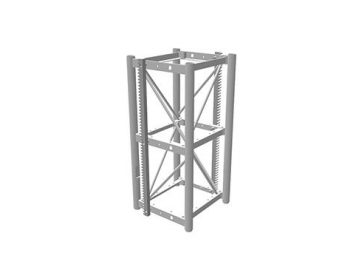

Mast Section

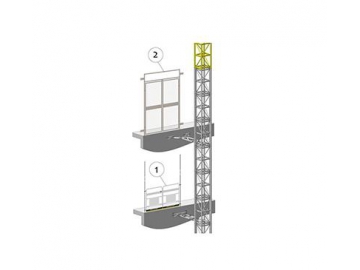

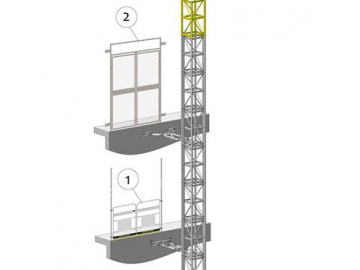

Landing Door

Construction Hoist Cage Introduction:

The main structure of our construction hoist cage is produced using high-quality steel and features a baffle plate made of aluminum alloy plate, which reduces the weight of the cage. The cage serves as an elevator for personnel and construction supplies, facilitating greater working efficiency.

The construction hoist cage comes in two sizes: 3.2m*1.5m*2.5m and 3m*1.3m*2.5m.

The cage is hoisted along the mast under the force of a roller and features vertical drawing entrance and exit doors.

A door is located at the top of the cage allowing you to easily climb to the top of the cage for installation and maintenance with a special ladder. The cage top can be used as a working platform during installation and disassembly and is surrounded by a guard rail.

An electrical interlocking device is installed on the cage. This will automatically shut down the raising or lowering of the cage if the door is open to protect personnel.

Technical Specifications

Item	Part No.	Name	Description	Qty.
A	CH601-SUB	Cage	Left and right cage	----
B	CH606-SUB	Safety device	---	---
C	CH602-SUB	Vertical door	---	---
D	CH603-SUB	Manual up door	---	---
E	CH603-SUB	Manual ramp door	---	---
F	----	Door guide roller	---	---
G	CH711-SUB	A-Rope wheel	---	---
H	CH605-SUB	Door counterweight	---	---
1	----	Counterweight cushion	---	---
J	CH711-SUB	A-Rope wheel	---	---
K	CH711-SUB	C-Rope wheel	---	---
L	CH615-SUB	A-Double rollers	---	---
M	CH615-SUB	B-Double rollers	---	---
N	CH615-SUB	Side rollers	---	---
0	CH616-SUB	Safety hook	---	---
P	CH625-SUB	Converter system	---	---
Q	CH712-SUB	Roof door	---	---
R	CH608-SUB	Ladder	---	---
S	CH612-SUB	Roof fence	---	---
T	CH618-SUB	Sign panel	---	---
U	CH617-SUB	Limit switch	---	---
V	----	Maintenance panel	---	---
