LQ-MD 330DS

Digital equipment for label print enhancement

The digital enhancement system is an innovative solution that transforms ordinary printed materials into extraordinary works of art. This system integrates digital stamping (embossing), digital varnishing, frosting, 3D effects, spot varnishing, Braille printing, personalized artwork, and variable data printing. These features enhance your printed work, significantly increasing its value with high efficiency, low cost, and enhanced added value, perfect for handling small to medium-sized orders effectively.

By combining this system with traditional and digital printers, as well as other post-processing technologies, you can solve most post-processing challenges easily, enhancing the final product's appearance and functionality.

Specifications
Digital Printing Technology UV inkjet, DOD inkjet printing
Resolution 360×360dpi Max.1440×360 dpi
Print Speed 6m/min-30m/min (depending on inkjet layer thickness)
Variable Data File Format PDF, embedded PDF, most barcode formats
Image Format PDF, PDFVT, TIFF, JPEG, BMP, and other data formats
Applicable Media Offset prints, digital prints, plastic film, laminated surfaces and other coated materials
Printing Image Size Max. image width: 288mm
Max. image length: 5m
Polyester Resin LED-UV curing, special clear varnish
Max. Unwind Diameter Outer diameter of paper roll: up to 700mm
Inner diameter of core: 76mm
Max. Rewind Diameter Outer diameter of paper roll: up to 700mm
Inner diameter of core: 76mm
Substrate Thickness 30-400µm
Max. Paper Feeding Width 330mm
Dimensions (L×H×W) 3500×1900×1800mm
Working Environment Temperature: 15℃-30℃
Relative humidity: 40%-80% non-condensing
Electrical Requirements Voltage:3×380; /-5%; 3-phase G N (Star connection)
Frequency: 50/60 Hz
Current: approximately 25Amps
Power: Avg. 13.5KVA during production
Max. 30KVA
Cable requirements: Min.50A
Net Weight Approximately 3000kg
More product applications to create high added value

The product application covers liquor, red wine, cosmetics, fast moving consumer goods and other fields, it is more competitive especially in the wine label, flexible package, and washi tape, journal, calendar and other products. It can not only increase the added value of customers' products, but also enhance its unique market competitiveness.

Wide range of applications for enhanced product value
The label print enhancement system is used in many industries to make products stand out. It is great for adding special touches to wine labels, flexible packaging, washi tapes, journals, and calendars. Using this post print enhancement system, you can make your products more valuable and attractive in the market. This helps your products stand out and be more competitive.

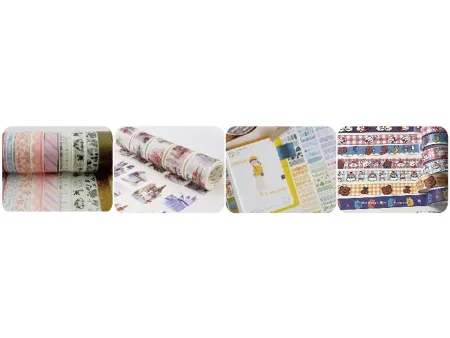

  • Washi tapes

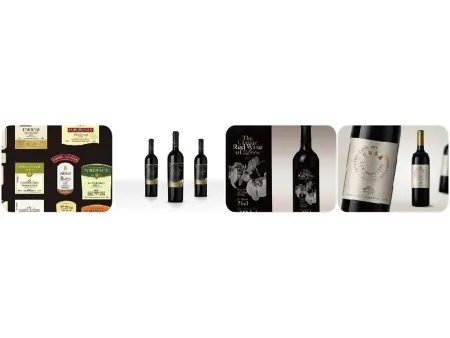

  • Labels for alcoholic drinks bottles

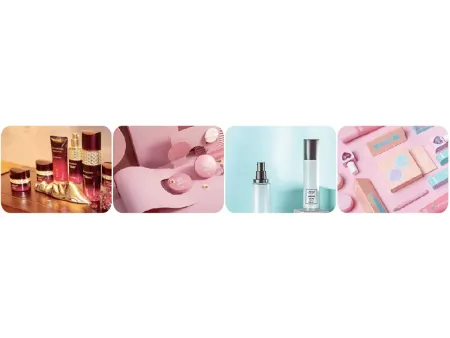

  • Cosmetic labels

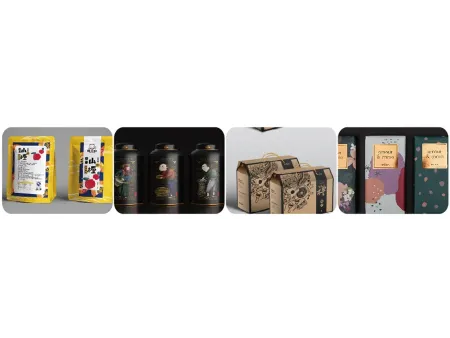

  • Food labels
Features
  • This enhancement system operates digitally, eliminating the need for complex setups. Achieve your objectives effortlessly using barcodes or QR codes, with variable data in PDF or optimized PDF files, simplifying the entire process.
  • The system works perfectly with digital printing presses from brands like HP, Epson, and Konica Minolta, as well as most traditional printers. This versatility ensures that it can be integrated smoothly into various printing workflows.
  • It uses UV inkjet printing technology, to apply crystal clear resin varnish that adheres firmly onto the substrate, providing stability and durability. Embossed characters and graphics remain sharp and clear, with no risk of deformation or flattening over time.
  • With a simple paper path design, this label print enhancement system achieves precise registration of digital UV varnishing and stamping in a single pass. This reduces paper waste and processing steps, significantly boosting production efficiency.
