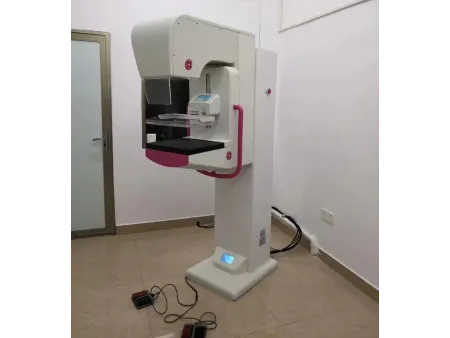

SHO-DMS01 Medical Imaging

Mammography imaging equipment with 5kW X-ray generator for capturing mammogram images

Our high-performance digital mammography system is designed to deliver exceptional image clarity for breast disease screening and diagnosis. It features a flat panel detector and an Italian IAE molybdenum X-ray tube, providing high-resolution imaging capable of detecting calcifications as small as 0.1 mm.

Equipped with a self-developed 40kHz high-voltage generator and dual-inversion technology, this system ensures stable X-ray output, reduced radiation dose, and enhanced image quality. The integrated “Console” software offers powerful post-processing capabilities, utilizing advanced mammography algorithms to optimize image quality and assist doctors in more precise breast cancer detection and diagnosis.

This mammography system provides a reliable solution for early breast disease detection and diagnosis, helping healthcare professionals make more accurate and confident clinical decisions.

Specifications

Ambient Conditions

Ambient temperature10℃ to 40℃
Relative humidity30-75%
Atmospheric70-106 kPa

X-Ray Generator

Output power 5.0 kW
Frequency 80-200 kHz
Current 10-200 mA
Voltage20-50 kV
Exposure time 5-10000 s
mAs0.5-600 mAs
Self-diagnostic systemTube overload protection

X-Ray Tube

BrandIAE (Italy)
Anode type Rotating Anode
Focal spot value0.1 mm / 0.3 mm
Maximum voltage40 kV
Anode heat storage capacity300 kHU

House heat storage capacity426 kHU
Target materialMolybdenum
Anode rotation speed10000 rpm
Maximum anode heat dissipation rate500 W

X-Ray Detector ( Iray Brand Flat Panel Detector)

ScintillatorCesium Iodide
Active area235×290 mm
Active pixel2762×3408
Pixel pitch85 um
AD conversion (bit)16
Spatial resolution60 Lp/cm

Mechanical Device

SID650 mm
Exposure field240×300 mm (Maximum)
Up-down movement of c-arm≥ 600 mm
Rotational angles of c-arm-90° to 90° (Electromagnetic lock)
Rotational angles of tube-30° to 30°

Compression Paddle

Movement typeElectric
Up-down movement range≥210 mm
Size of compression paddle260×180 mm
Pressure range0-20 kg (0.1 kg step)

Workstation

Monitor24’’ LCD AOC brand
CPU≥2.0 GHz
Memory≥2 GB
HDD≥500 GB
DICOM3.0Query for integration with any PACS
FunctionsImport/export function

X-Ray Imaging

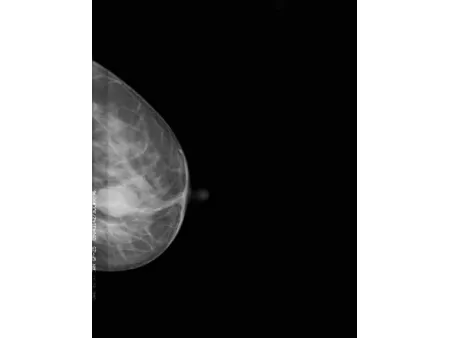

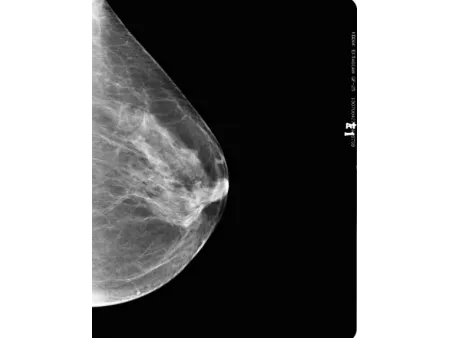

Normal breast images

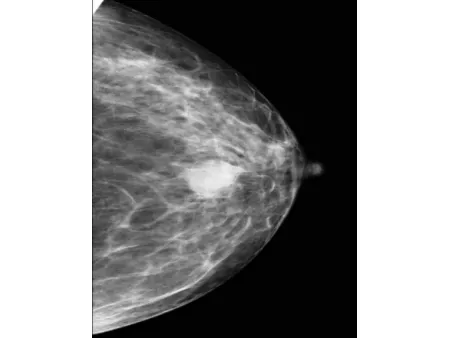

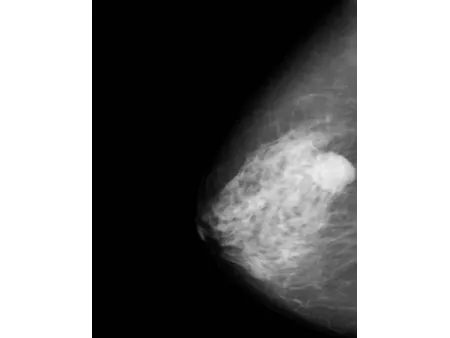

An image of a tumor

Looking for a high-precision mammography system to enhance breast cancer screening? Contact us today for more details!
