Pharmaceutical Machinery

Solid Dosage

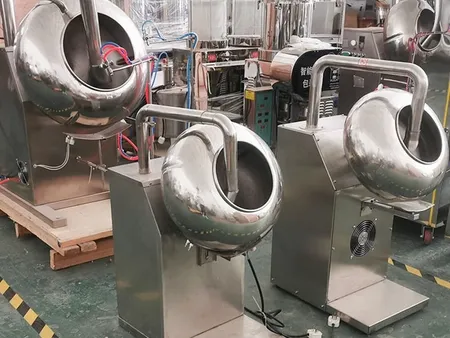

BY-1000A

Tablet coating machine for sugar coating, color coating and polishing of tablets
  • 60 Kilograms Per Batch
  • 1000 mm Coating Pan Diameter

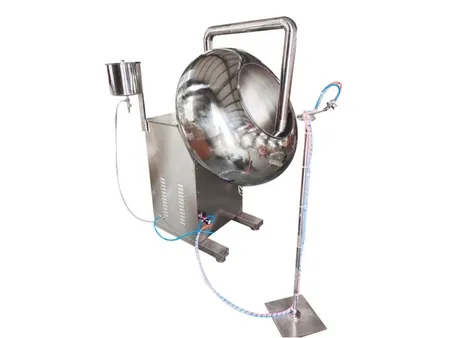

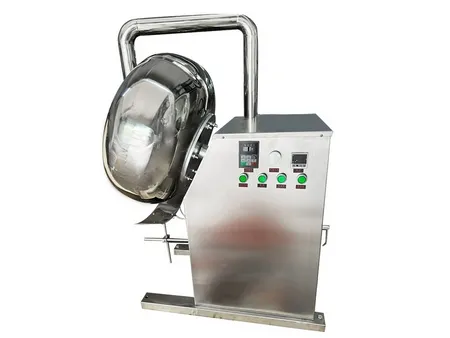

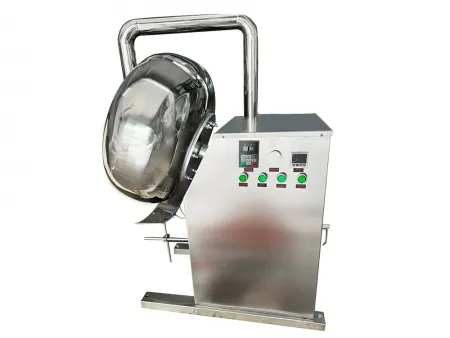

The sugar coating pan is equipped with a controllable hot air system and an automated liquid/gas supply spray system to give the tablet a thick shiny coating. Using a high-atomization spray gun, coating materials are evenly applied to the tablet surface while the tablets move in a complex, continuous trajectory within the coating pan. The controllable hot air inside the pan dries the tablets, curing the coating film to achieve a smooth, delicate, and glossy finish.

This tablet coating machine is easy to operate and produces tablets with a uniform, polished surface while minimizing the consumption of auxiliary materials. Its simple maintenance makes it an ideal choice for laboratories or small-batch production.

Applications

The sugar coating pan is not only suitable for producing sugar-coated pills and tablets in the pharmaceutical industry but also for rolling, mixing, and polishing spherical or granular materials in the food, light industry, and chemical sectors.

Key Features
  • The sugar coating pan features convenient material loading, simple operation, and easy cleaning. The coating pan is detachable, and the imported spray gun ensures user-friendly handling, excellent atomization, and even application of coating solutions.
  • The constant-pressure variable peristaltic pump eliminates the need for a return pipe, automatically balancing the output of slurry and the quantity of slurry sprayed. This design stabilizes the effect of atomization, simplifies the spray system, prevents spray gun clogging, and reduces coating material wastage, making the coating machine environmentally friendly.
  • The action of the agitator of streamline guide type plate allows for smooth tumbling of tablet cores, eliminating collisions and drops from heights that can cause breakage or chipped edges, significantly improving the product yield.
  • The sugar coating pan's tilt angle and rotation speed are adjustable to meet various process requirements. It ensures smooth operation, low energy consumption, and high reliability.
Specifications
Model BYC-1000A
Coating Pan Diameter Ø1000mm
Rotation Speed 32rpm
Motor Power 0.55kW
Fan Power 60W
Heating Power 1kW
Production Capacity 60kg/batch
Machine Dimensions 1000×1200×1700mm
Machine Weight 80kg
