LQ-BG

Tablet coater for high efficiency coating of tablets, pills and candies with film layer

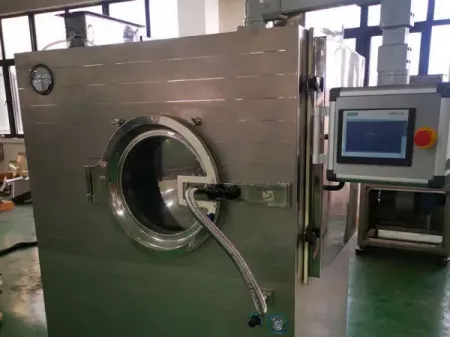

The tablet film coating machine is engineered for high efficiency in applying coatings to tablets, pills, candies, and other products. This machine incorporates sophisticated systems including a major machine body, a slurry spraying system, a hot-air cabinet, an exhaust system, an atomizing device, and a computer programming control system. It is versatile enough to apply various types of coatings such as organic film, water-soluble film, and sugar film, making it an ideal choice for industries including pharmaceuticals, food, and biological products.

Components

Specifications

Model	BG-10E	BG-40E	BG-80E	BG-150E	BG-400E	BG-600E
Max. Load Capacity	40kg/batch	40kg/batch	80kg/batch	150kg/batch	400kg/batch	600kg/batch
Coating Pan Diameter	Ø500mm	Ø750mm	Ø930mm	Ø1200mm	Ø1580mm	Ø1580mm
Rotation Speed	1-25rpm	1-21rpm	1-19rpm	1-16rpm	1-13rpm	1-12rpm
Main Machine Power	0.55kW	1.1kW	1.5kW	2.2kW	3kW	5.5kW
Exhaust Cabinet Power	0.75kW	2.2kW	3kW	5.5kW	7.5kW	11kW
Hot Air Cabinet Power	0.35kW	0.75kW	1.1kW	1.5kW	2.2kW	5.5kW
Air Exhaust Flow	1285m³/h	3517m³/h	5268m³/h	7419m³/h	10000m³/h	15450m³/h
Hot Air Flow	816m³/h	1285m³/h	1685m³/h	2356m³/h	3517m³/h	7419m³/h
Main Machine Dimensions (L×W×H)	900×620×1800mm	1000×800×1900mm	1210×1000×1730mm	1570×1260×2030mm	2050×1670×2360mm	2050×1940×2360mm
Hot Air Cabinet Dimensions (L×W×H)	900×8600×1800mm	900×800×1935mm	900×800×1935mm	900×800×1935mm	900×800×2260mm	1600×1100×2350mm
Exhaust Cabinet Dimensions (L×W×H)	600×530×1600mm	820×720×1750mm	900×820×1850mm	950×950×1950mm	1050×1050×2000mm	1050×1000×2200mm

Features

Designed to be energy-efficient, it occupies minimal floor space, making it suitable for various industrial settings without the need for extensive space

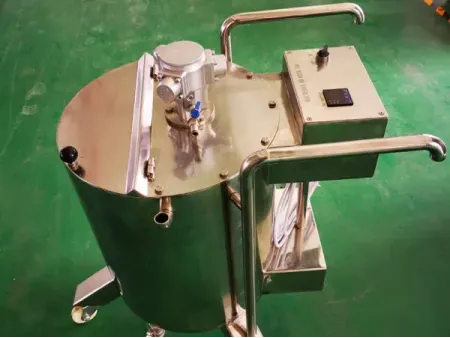

Utilizes a slurry spraying system and an efficient atomizing device to ensure a consistent and even coating for a wide range of products

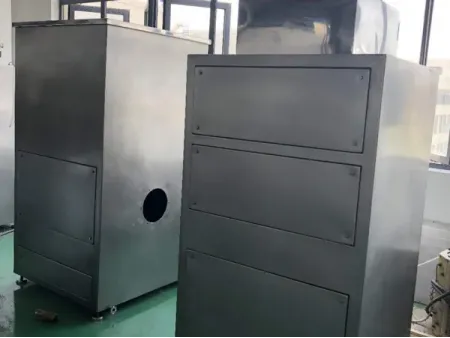

The tablet coater machine features a hot-air cabinet and an exhaust system that work together to provide clean, hot air for drying while maintaining a negative pressure environment. This ensures quick and uniform drying of the coating medium.
Promotes the formation of a firm, fine, and smooth film on the tablets through controlled spray processes and optimal airflow dynamics
The coating process takes place within a clean and closed drum, which facilitates easy and smooth movement of the tablets and maintains a high standard of hygiene
Equipped with a programmable logic controller (PLC), it allows for precise adjustments and real-time monitoring to efficiently optimize the coating process.
