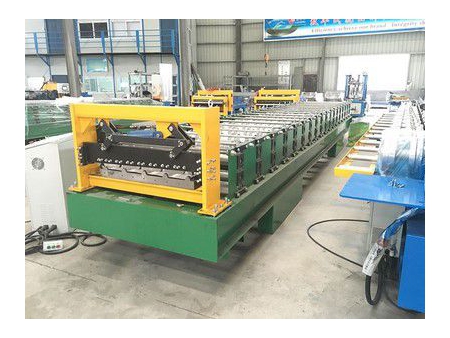

YX28-816-1020 Roof Panel Roll Forming Machine
Request a Quote
YX28-816-1020 roof panel roll forming machine offers two width options for 816mm and 1020mm wide roof panels. This machine is capable of profiling 0.4-0.8mm thick metal sheets and comes with a production speed of 15m/min.
Samples
Profiles
| Model | YX28-816-1020 |
| Dimension | 7500*1500*1500mm |
| Motor Power | 7.5KW |
| Hydraulic Power | 2.2KW |
| Forming Steps | 17steps |
| Forming Speed | 10-15m/min |
| Voltage | 380V/50HZ/3PH |
| Material Thickness | 0.4-0.8mm |
| Rib Height of Roofing | 28mm |
| Effective Cover Width | 816mm,1020mm |
| Feeding Material Width | 1000mm,1219mm |
| Control System | PLC Control |
-
-
Cutter is manufactured by Cr12 mold steel, with HRC58-60 heat treatment for high quality and long service life.
-
-
Roller is made of high quality 45# steel with CNC lathes.
Hard chrome plating is available for long service life.
Body frame is welded with 400# H bean.
-
-
PLC control system can be chosen from Schneider, Siemens, and Delta.
-
-
Hydraulic pre-cutter can be chosen for operation to save labor cost.
- Main Machine
- 5 Tons Manual Uncoiler
- Hydraulic Forming Cutter (Material: Cr12Mov with heat treatment)
- Hydraulic System
- PLC Computer Controlling System with touch Screen (Brand: Schneider)
- Manual Pre-cutter OR Hydraulic Pre-cutter
- Tools
- Operation Manual
