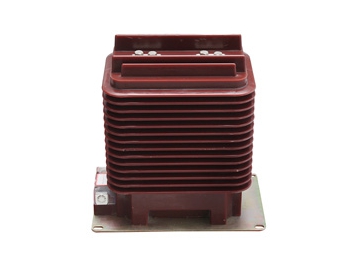

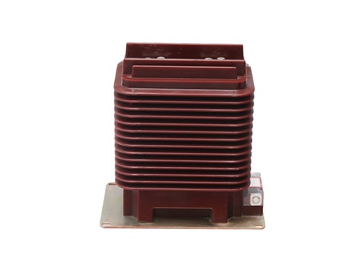

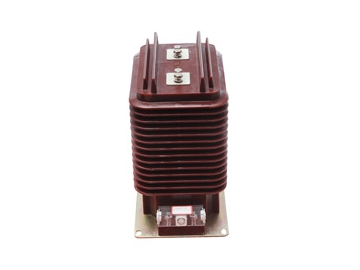

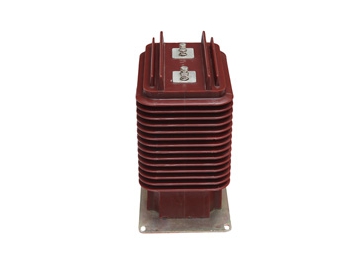

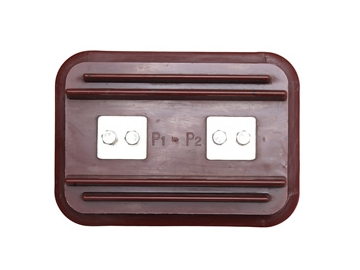

Medium Voltage Current Transformer, LZZBJ9-36-250W1G1
Request a Quote
Technical Parameters
| Type | Rated primary current (A) | Accuracy Classes combination | Rated secondary output(A) | Short -time thermal current(kA/S) | Rated dynamic current(kA) | ||
| 0.2 | 0.5 | 5P20 | |||||
| LZZBJ9-36 | 20-100 | 0.2S/0 .2S 0.2S/0.5 0.5/0.5 0.2S/5P20 0.5/5P20 0.2S/0.5/5P20 | 10 | 15 | 15 | 2001in | 5001in |
| 150-200 | 10 | 15 | 15 | 31.5 | 80 | ||
| 300-500 | 10 | 15 | 15 | 31.5/2 | 80 | ||
| 600-1250 | 15 | 30 | 20 | 31.5/4 | 31.5/4 | ||
| 1500-2000 | 20 | 40 | 30 | 40/4 | 125 | ||
| 2500 | 20 | 40 | 20 | 40/4 | 125 | ||
