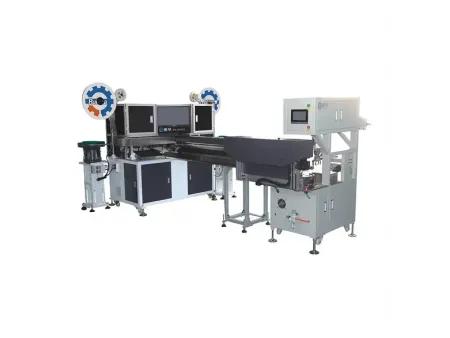

Automatic One-Sided Long/Short Wire Housing Insertion Machine

Automatic One-Sided Long/Short Wire Housing Insertion Machine
Automatic One-Sided Long/Short Wire Housing Insertion Machine
Request a Quote

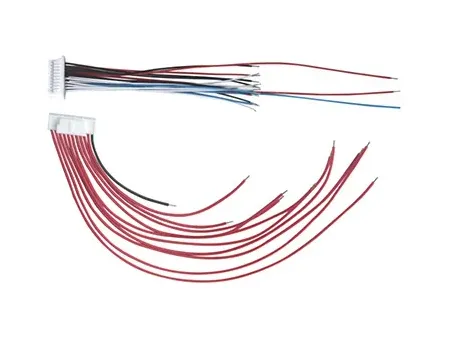

Precision and flexibility are crucial for assembling wires of varying lengths in high-speed production environments. This model of wire terminating machine integrates cutting, stripping, terminal crimping, tinning, and housing insertion into one workflow. Capable of processing wires with length differences of up to 400mm and support connectors up to 20P, this one-sided long/short wire housing insertion machine provides a reliable option for diverse cable assembly needs. Equipped with a servo motor control to ensure accuracy, while the touch screen interface allows for quick and easy adjustments without requiring accessory changes.

Crimping Capacity
  • Approx. 5,000 to 9,500 crimps per hour
Technical Data
General Model
Dimensions (L×W×H) 2200×1200×1600mm
Weight Approx. 550kg
Power Supply AC220V 50Hz
Power Approx. 5kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Crimping Force 2T
Functions Housing Pitch 1.0-VH3.96mm
Crimping Capacity 5000-9500 crimps/hr (depending on wire length and number of pins)
Control System PLC control, servo motor
Wire Processing Wire cutting, One-sided crimping and housing insertion one-sided tinning (for for wires with different length), One-sided crimping and housing insertion one-sided half stripping, One-sided crimping and housing insertion one-sided tinning
Operation Control Wire feeding, cutting and stripping are controlled via touch screen, with PLC full servo control
Detection Devices Crimp test, wire shortage detection, air pressure test, paper winding inspection
Auxiliary Equipment Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Optional Pressure Measuring Device Used to measure terminal crimping pressure
Vision Inspection Inspection of copper wire, crimp terminal, color, and terminal housing
Application Range Cutting Length 45-850mm (customizable)
Stripping Length Front: 1-8mm, Rear: 1-12mm
Wire & Cable Type Electric wire, solid core cable (high temperature cable, Teflon insulated cable, silicone insulated cable, halogen-free cable) (AWG28#-AWG18#)
Max. Wire Width 45mm
Number of Pins 2-20pin
Features
  • The touch screen interface allows for precise control of wire feeding length, cutting length, stripping depth, terminal positioning, and housing insertion, enabling efficient and accurate operation.

  • Robotic clamping ensures stability and precise alignment of wires throughout the process, delivering consistent and high-quality results.

  • Compatible with multiple wire types, including ribbon cables, PVC, silicone, Teflon-coated, and halogen-free wires, and supports a range of specifications such as 0.8, 1.0, 1.25, 1.5, 2.0, 2.54, and 3.96 spacings.

  • Equipped with an integrated error monitoring system designed to provide real-time alerts on the touch screen, simplifying fault detection and minimizing production delays.
