PVC Creasing Matrix

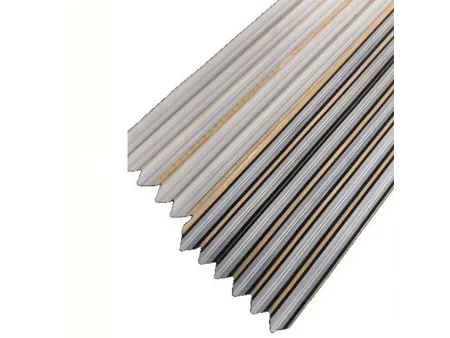

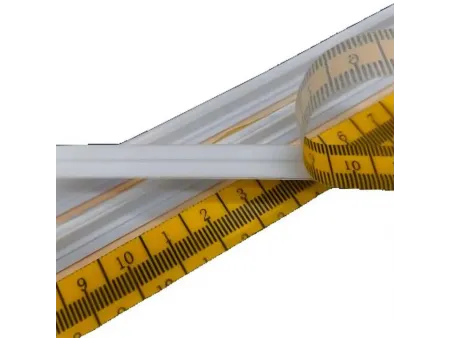

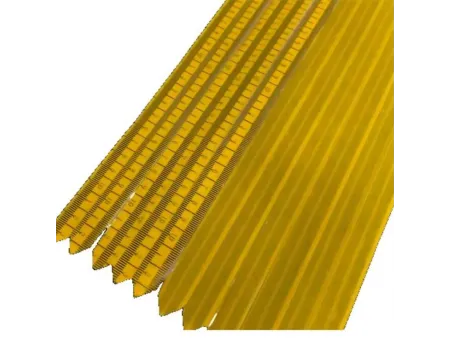

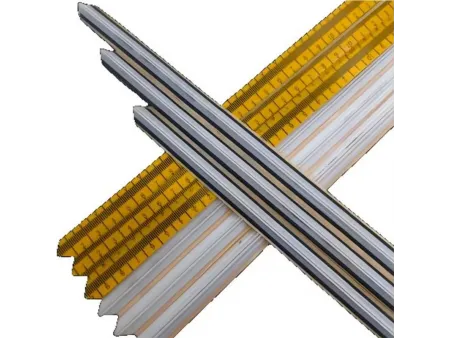

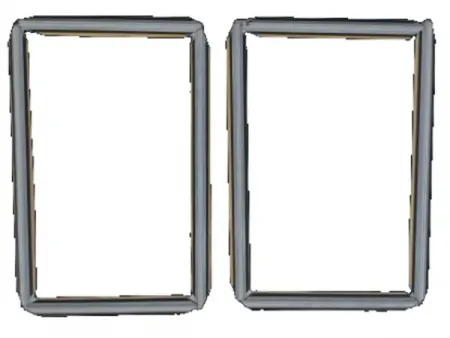

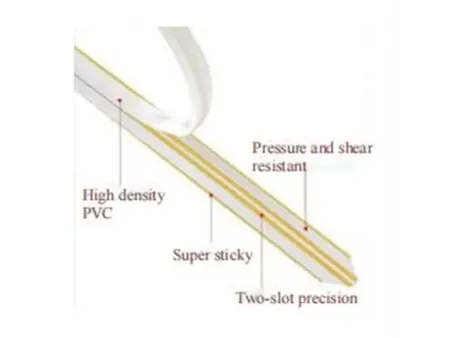

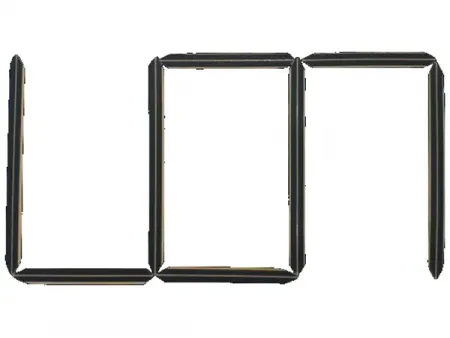

The PVC creasing matrix is an essential accessory for creating precise creases on paper and cardboard. It consists of a strip metal plate with indentation lines of various widths and depths, designed to accommodate different paper thicknesses and folding requirements. Some models include an integrated scale, allowing users to make accurate measurements for complex folding designs with ease. Whether for packaging or custom folding designs, the PVC Creasing Matrix provides reliable and efficient solutions to meet diverse production needs.
The PVC creasing matrix is compatible with flat pressing machines and automatic die-cutting machines, making it ideal for: white cardboard, copper paper, grey cardboard, and various other cardboards. PVC sheets, corrugated paper, color boxes, gift boxes, and a wide range of packaging materials.
| Cardboard Selection (based on die cutting rule height 23.77mm as the standard) | ||||
| Paper GSM (mm) | Thickness GSM (mm) | Cutting Rule Height (mm) | Cutting Rule Height (mm) | Type |
| Below 100g | 0.1 | 23.5 | 1.5pt/0.53mm | 2PT1.2-1.4(0.3×0.6) |
| 150-190 | 0.15-0.25 | 23.5 | 2pt/0.71mm | 2PT1.2-1.4(0.3×0.6) |
| 200-220 | 0.26-0.34 | 23.5 | 2pt/0.71mm | 2PT1.2-1.4(0.3×0.6) |
| 230-280 | 0.35-0.40 | 23.4 | 2pt/0.71mm | 2PT1.2-1.4(0.3×0.6) |
| 290-330 | 0.42-0.47 | 23.4 | 2pt/0.71mm | 2PT1.2-1.4(0.3×0.6) |
| 350-400 | 0.50-0.56 | 23.3 | 2pt/0.71mm | 2PT1.2-1.4(0.3×0.6) |
| 410-450 | 0.57-0.63 | 23.2 | 2pt/0.71mm | 2PT1.5-1.9(0.3×0.6) |
| 460-500 | 0.64-0.70 | 23.1 | 3pt/1.05mm | 2PT1.9-2.3(0.3×0.6) |
| 520-600 | 0.72-0.84 | 22.9 | 4pt/1.42mm | 3PT1.9-2.3(0.3×0.6) |
| 620-700 | 0.84-0.98 | 22.8 | 4pt/1.42mm | 3PT2.3-2.7(0.3×0.8) |

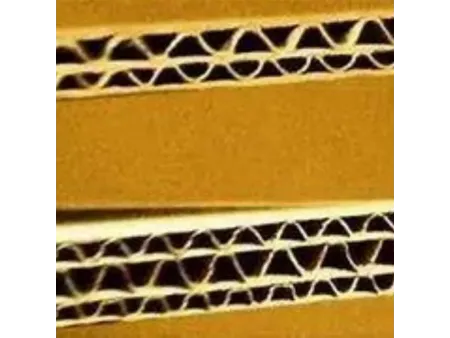

| Corrugated Paper Selection (based on die cutting rule height 23.77mm as the standard) | ||||
| Paper Type | Thickness GSM (mm) | Cutting Rule Height (mm) | Cutting Rule Height (mm) | Type |
| E flute | 0.46-0.50 | 23.2 | 2pt/0.71mm | 3PT2.7-3.2(0.3×0.9) |
| E flute | 0.60-0.69 | 23 1 | 3pt/1.05mm | 4PT2.7-3.2(0.3×0.9) |
| E flute | 0.70-0.80 | 23.0 | 4pt/1.42mm | 4PT3.2-3.5(0.3×0.9) |
| B flute | 0.81-0.89 | 22.9 | 4pt/1.42mm | 4PT3.5-4.0(0.3×0.9) |
| B flute | 0.90-0.96 | 22.8 | 4pt/1.42mm | 4PT4.0-4.5(0.3×0.9) |
| A flute | 4.0-4.5 | 22.7 | 4pt/1.42mm | 4PT2.7-3.2(1.0×7.0) |
| B flute | 2.5-3.0 | 22.6 | 4pt/1.42mm | 4PT3.5-4.0(1.0×7.0) |
| C flute | 3.5-4.0 | 22.5 | 4pt/1.42mm | 4PT3.5-4.0(1.0×5.0) |
| E flute | 1.5-2.0 | 22.4 | 4pt/1.42mm | 3PT2.3-2.7(1.0×5.0) |
| F flute | 0.8-1.0 | 22.3 | 3pt/1.05mm | 2PT1.9-2.3(0.8×2.3) |
- Available in multiple widths and depths, suitable for various paper and cardboard thicknesses.
- Simplifies the folding process, streamlining production and improving efficiency.
- Ensures accurate and sharp folding lines, ideal for intricate designs.
- Offers excellent stability and can be reused multiple times while maintaining consistent performance.
- Performs 10% better in withstand voltage compared to similar products.
