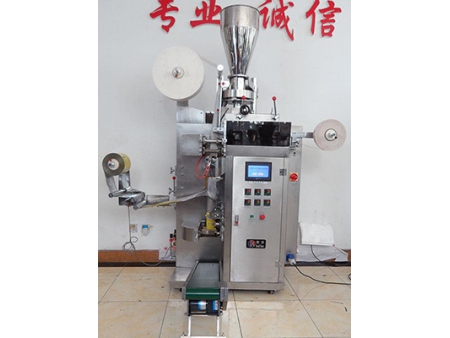

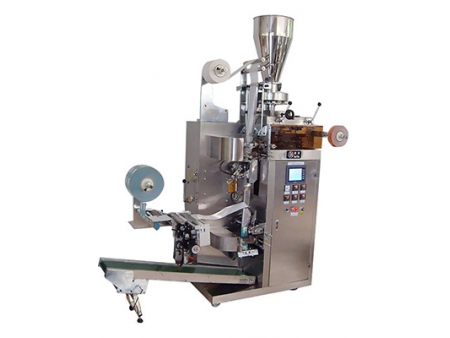

Promotional Tea Bag Filling Sealing Machine
One attractive feature of this promotional tea bag filling sealing machine lies in the application of in-house developed manipulator. The manipulator firstly puts material into bag and then puts the paper bag into an outer envelope, realizing quick packaging. Because of the application of manipulator, the failure rate is greatly reduced and the envelop size also becomes smaller. Main process procedures of the tea packaging machine are bag making, measuring, filling, cutting, sealing, counting and discharging. The tea bag is three-side sealed and is made from filter paper or other heat seal materials.
This automatic promotional tea bag filling sealing machine is appropriate for seeds, medicine, health products, tea, just to name a few.
Technical Parameters
Range of measurement: 3-15 ml
Bag size: Length: 50-70 mm, width: 40-80 mm
Envelop size: Length: 70-120 mm width: 60-90 mm
Tag size: Length: 20--24mm width: 40--55mm
Production capacity: 28-50 bags/min
Power: 220V 50HZ 3.5KW
Machine weight: 500 kg
Dimensions (L×W×H): 1250×700×1800 mm

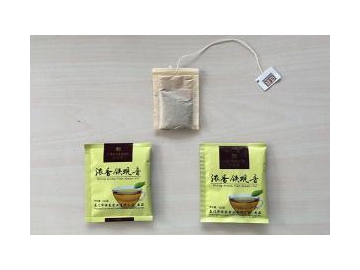

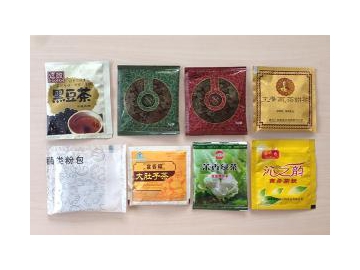

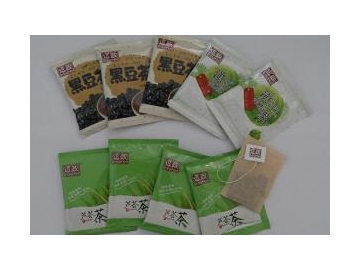

Packing Sample Pictures
