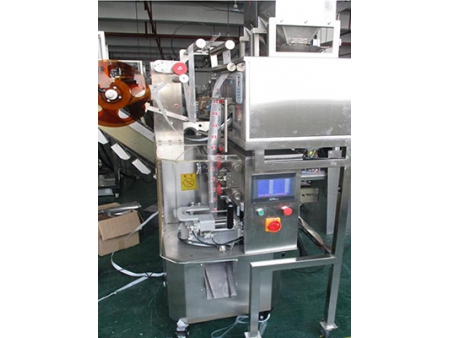

Pyramid Tea Bag Filling Sealing Machine

Pyramid Tea Bag Filling Sealing Machine
Pyramid Tea Bag Filling Sealing Machine
Pyramid Tea Bag Filling Sealing Machine
Pyramid Tea Bag Filling Sealing Machine
Pyramid Tea Bag Filling Sealing Machine
Pyramid Tea Bag Filling Sealing Machine
Pyramid Tea Bag Filling Sealing Machine
Pyramid Tea Bag Filling Sealing Machine
Request a Quote

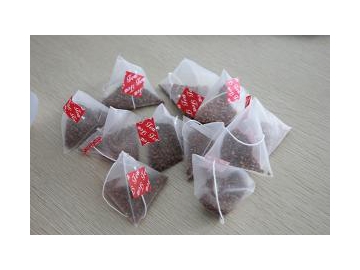

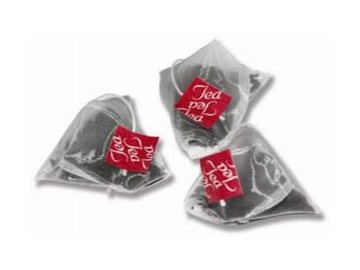

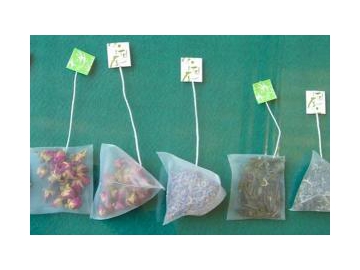

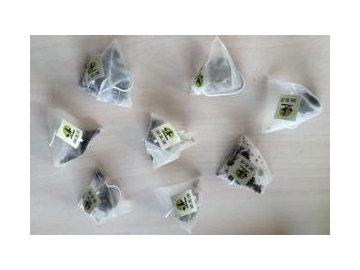

Packing Sample Pictures

Technical Parameters
Model DXDPC02 DXDPC04
Bag size Width: 60-80 mm Length: 40-80 mm Width: 60-80 mm Length: 40-80 mm
Packaging speed 20-30 bags/min 30-50 bags/min
Range of measurement 1-7 g 1-7 g
Power supply 220V/2KW 220V/2.2KW
Air supply 0.8mpa 0.8mpa
Air consumption 0.6m3/min 0.6m3/min
Machine weight Approx. 400 kg Approx. 6 5 0 kg
Dimensions (L×W×H) 1200×920×2060mm 1600×800×2650mm

Features
1. The pyramid tea bag filling sealing machine provides pouch packaging and triangle tea bag packaging.
2. Main process procedures including material feeding, measuring, bag making, sealing, cutting, counting and discharging all in one continuous operation.
3. A precise control system driven by servo motor for worry free accuracy during operation.
4. An imported ultrasonic device is used for sealing, leading to a firm seal. An electronic scale is applied for weighing materials with high precision.
5. Packaging tension can be automatically adjusted.
6. The pyramid tea bag packaging equipment will automatically give an alarm and shut down if a malfunction occurs.

Applications
This filling and sealing machine is used to produce triangular tea bags that are designed to steep for less time and release all of their delicious flavors and health benefits.
