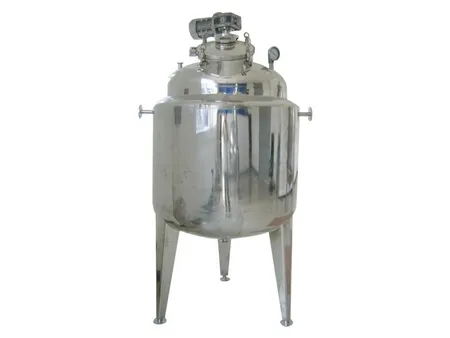

Dynamic Extraction Tank

Request a Quote

View All: http://pharmaequip-en.com/4-5-1-dynamic-extraction-tank.html

Pharmaceutical Machinery

API Manufacturing Equipment

DDT-500

Botanical extraction equipment

0.5 m³ Tank Volume
800 mm Tank Diameter

The dynamic extraction tank is designed for efficient extraction of active components from bulk medicinal herbs. It optimizes energy usage while ensuring a higher yield of concentrated extracts and more complete recovery of active ingredients. This extraction tank is primarily used for decoction extraction processes of herbal medicines with water or organic solvents as the medium, and it also enables the simultaneous recovery of essential oils during the extraction process.

Key features

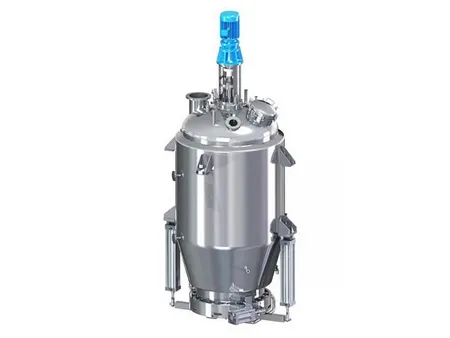

Its innovative structure with cylindrical upper section and the lower section with a conical design shortens the stirring shaft length, improving operational stability and safety.
Features a pneumatic opening and closing system for the discharge door with a self-locking mechanism, ensuring smooth, safe, and clean residue removal while reducing maintenance costs.
The manual quick-open loading door is simple in design, easy to use, and safe, providing convenience for operators.

Specifications

Model	DDT-500
Volume	0.5m³
Tank Diameter	800mm
Inside Tank Pressure	0.15MPa
Machine Height	1800mm
Machine Weight	1000kg
Mixing Power	1.1kW
Water Separator Size	DN200×800
