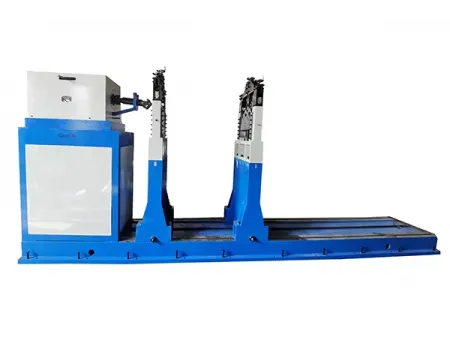

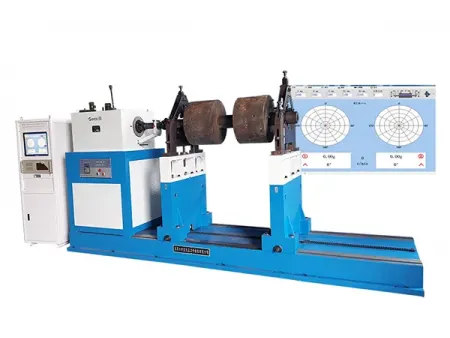

YFW-5000/YFW-6000

Hard-bearing balancing machine for dynamic balancing of fan impellers and blowers

The YFW-5000 and YFW-6000 are hard-bearing balancing machines designed for medium- and large-scale fan manufacturers. These fan impeller balancing machines feature a large impeller diameter capacity (up to 2500 mm and 3000 mm respectively) and high driving torque, making them ideal for balancing heavy-duty fan rotors. Their flexible configuration allows users to choose between an integrated or split/modular machine base, depending on production capacity and process requirements, ensuring adaptability to different manufacturing environments.

Specifications

Model	YFW-5000	YFW-6000
Workpiece weight	200-5000kg	500-6000kg
Max. workpiece diameter	3000mm	3000mm
Journal diameter of workpiece	60-300mm	60-300mm
Distance between two bearing supports	400-2500mm	400-3500mm
Balancing speed (stepless speed control)	180-1400r/min	180-1400r/min
Unbalance reduction ratio (URR)	≥90%	≥90%
Min. achievable residual unbalance (eMar)	1.gmm/kg	1.g.mm/kg

Features

High load capacity and suitability for large-diameter rotors
Low balancing speed with stepless speed regulation for safe and precise testing
Optional split-base structure lowers the center of gravity of the rotor, significantly enhancing machine stability and safety
Equipped with advanced electrical measurement systems: the ZL-220 embedded unit and the ZL-2 industrial control system, both developed in-house with proprietary technology
Offers improved stability and faster performance compared to previous models, featuring accurate measurement, strong human-machine interaction, and advanced functionality
Sturdy H-type support frame with lightweight yet reliable structure, providing low damping, high rigidity, and accurate vibration response
