Fan Impeller Balancing Machine

Request a Quote

Website: http://balancingmachine-en.com/4-6-fan-impeller-balancing-machine.html

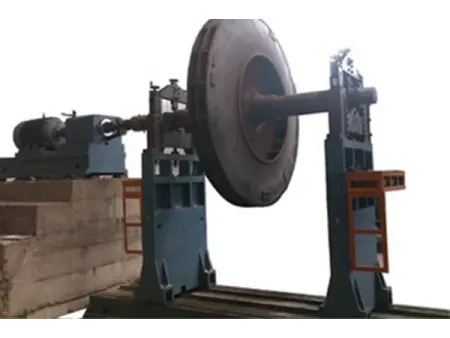

YFW-10000

Hard-bearing balancing machine for dynamic balancing of fan impellers and blowers

The YFW-10000 is a hard-bearing balancing machine designed for large-scale fan manufacturers. Built with a split-base structure, it offers exceptional flexibility and adaptability. In addition to its high driving torque and large impeller diameter capacity, the fan impeller balancing machine can be customized according to the user’s production requirements, process conditions, and operating preferences, including options for speed control methods and measurement systems.

Specifications

Workpiece weight	300-10000kg
Accidental overload of each support	6000kg
Max. workpiece diameter	3500mm
Journal diameter of workpiece	60-320mm
Distance between two bearing supports	5200mm (or based on negotiation)
Balancing speed (stepless speed control)	180-1400r/min
Min. achievable residual unbalance (eMar)	≤2g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Configurable with both the ZL-220 embedded system and the ZL-2 industrial control system, meeting diverse user needs
ZL-220 system: a widely adopted embedded solution with strong market presence and proven reliability
ZL-2 system: built on NI LabVIEW technology, offering intuitive, user-friendly software, adaptable to different operating levels and testing environments. Its functions can be extensively expanded and customized to meet special requirements
Split-base design that allows greater flexibility in installation and configuration, enabling stable and precise balancing of very large fan impellers
