Fan Impeller Balancing Machine

Request a Quote

Website: http://balancingmachine-en.com/4-3-fan-impeller-balancing-machine.html

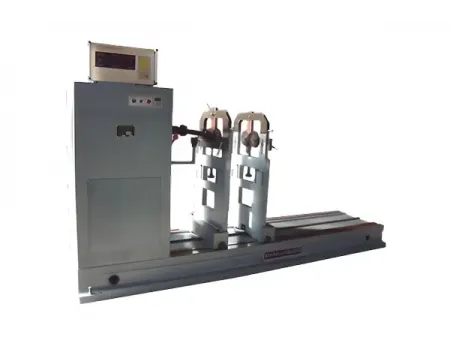

YFW-1000

Hard-bearing balancing machine for dynamic balancing of fan impellers and blowers

The YFW-1000 is a hard-bearing balancing machine designed for medium-size fan manufacturers. With a rotational diameter capacity of up to 1600 mm, it is particularly well-suited for the dynamic balancing of fan impellers. Beyond fan applications, it can also be used for other high-speed rotating components such as crusher rotors, motor rotors, and crankshafts.

Specifications

Workpiece weight	30-1000kg
Accidental overload of each support	600kg
Max. workpiece diameter	Ø1600mm
Journal diameter of workpiece	15-120mm
Distance between two bearing supports	2000mm
Balancing speed (stepless speed control)	180-1200rpm (or based on negotiation)
Min. achievable residual unbalance (eMar)	1g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Configurable with either the ZL-220 embedded measurement unit or the advanced ZL-2 industrial balancing system.
The ZL-2 system integrates the latest USB data acquisition card with an industrial PC or all-in-one computer, ensuring high stability and strong anti-interference capability.
Software developed with NI LabVIEW virtual instrument technology provides an intuitive, user-friendly interface, adaptable to different operator levels and testing scenarios.
Expandable software architecture allows customization to meet specific user requirements.
Equipped with an advanced photoelectric coupler for reference signal input and a concealed piezoelectric sensor for vibration signal detection, enabling precise and reliable test results.
