Sheet metal bending machine versatile for metal forming with multiple tooling options

Sheet metal bending machine versatile for metal forming with multiple tooling options

Key Specs

  • Nominal force: 400KN-3000KN
  • Distance between uprights: 1900mm-5000mm
  • Throat depth: 250mm-400mm
  • Features
  • Specifications
  • Components
  • Toolings

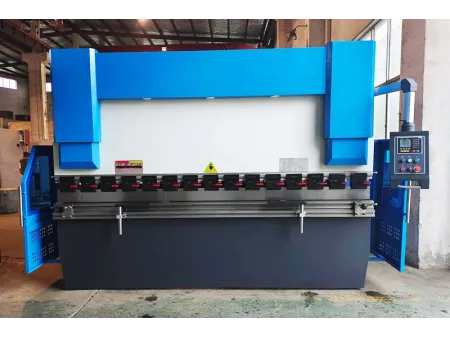

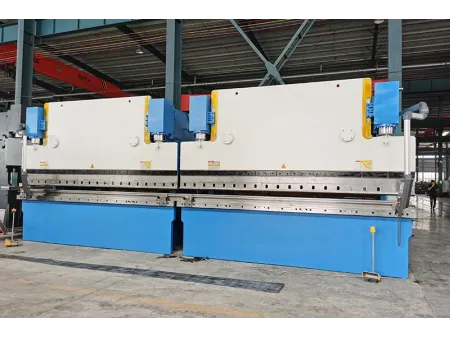

This torsion bar press brake utilizes hydraulic cylinders to manipulate the press brake tooling attached to the ram, facilitating precise metal forming. It comprises essential components such as hydraulic cylinders, a sliding block, the top and bottom dies, and a worktable, supporting a variety of bend dies for diverse metal sheet manufacturing applications.

Features
  • The frame is constructed from a single steel plate, welded and stabilized through vibration stress relief after tempering, ensuring exceptional structural stability.
  • Features a synchronization mechanism that connects the torsion bars and the block. Along with the hydraulic dual-cylinder drive, this setup achieves high precision during operation.
  • The machine tool undergoes shot blasting for rust removal and is precision-machined using an imported CNC machining center. This process guarantees the parallelism and perpendicularity of all metal surfaces, ensuring optimal assembly quality.
  • Incorporates mechanical balancing shafts that maintains parallel movement on both sides of the sliding block.
  • The X-axis backgauge is servo motor-driven, utilizing a ball screw and linear guide for precise movement.
  • The Y-axis sliding block stroke is also servo-controlled, enhancing positioning accuracy.

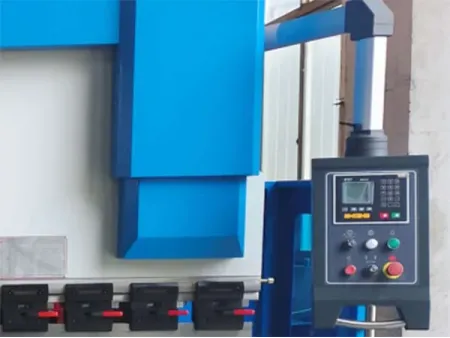

  • Equipped with the TP10 control system featuring a touchscreen interface, angle programming, and extensive mold and product libraries. Supports complex bending operations, including arc bending.
Specifications
Model Nominal force (KN) Working table length (mm) Distance between uprights (mm) Throat depth (mm) Ram stroke (mm) Power (kW)
WC67Y-40T/2500 400 2500 1900 250 160 5.5
WC67Y-40T/3200 400 3200 2600 250 160 5.5
WC67Y-63T/2500 630 2500 1900 320 160 7.5
WC67Y-63T/3200 630 3200 2600 320 160 7.5
WC67Y-80T/2500 800 2500 1900 320 160 7.5
WC67Y-80T/3200 800 3200 2600 320 160 7.5
WC67Y-100T/2500 1000 2500 1900 400 160 11
WC67Y-100T/3200 1000 3200 2600 400 160 11
WC67Y-100T/4000 1000 4000 3200 400 160 11
WC67Y-125T/2500 1250 2500 1900 400 160 11
WC67Y-125T/3200 1250 3200 2600 400 160 11
WC67Y-125T/4000 1250 4000 3200 400 160 11
WC67Y-160T/2500 1600 2500 1900 400 160 15
WC67Y-160T/3200 1600 3200 2600 400 160 15
WC67Y-160T/4000 1600 4000 3200 400 160 15
WC67Y-200T/3200 2000 3200 1900 400 160 15
WC67Y-200T/4000 2000 4000 3200 400 160 15
WC67Y-200T/6000 2000 6000 5000 400 160 15
WC67Y-250T/3200 2500 3200 2600 400 250 18.5
WC67Y-250T/4000 2500 4000 3200 400 250 18.5
WC67Y-250T/6000 2500 6000 5000 400 250 18.5
WC67Y-300T/3200 3000 3200 2600 400 250 22
WC67Y-300T/4000 3000 4000 3200 400 250 22
WC67Y-300T/5000 3000 5000 4000 400 250 22
WC67Y-300T/6000 3000 6000 5000 400 250 22
Key Components

Front Support
This component is adjustable, capable of lateral movements, with vertical adjustments as optional configuration.

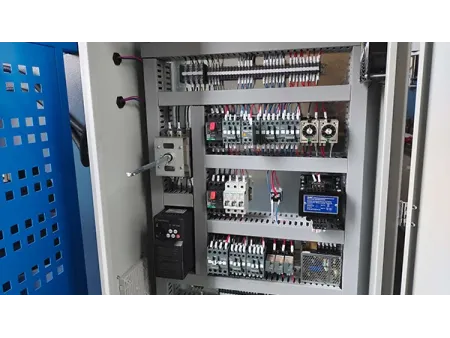

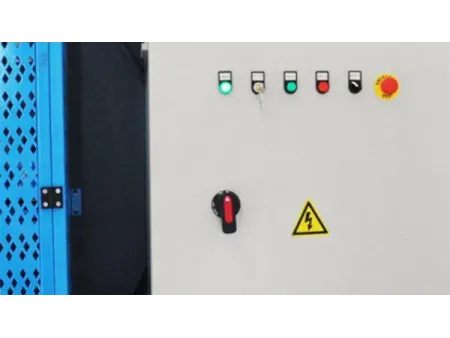

Schneider Electrical Panel
The primary electrical components are sourced from Schneider to ensure operational stability.

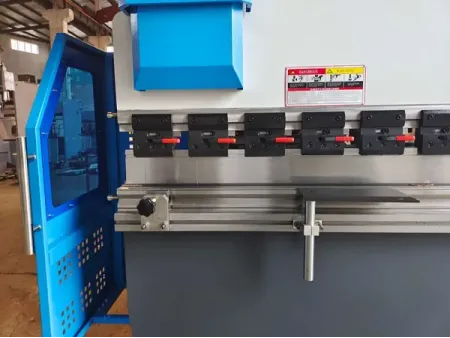

Safety Features
Includes a safety mechanism that automatically powers off the machine when doors are opened.

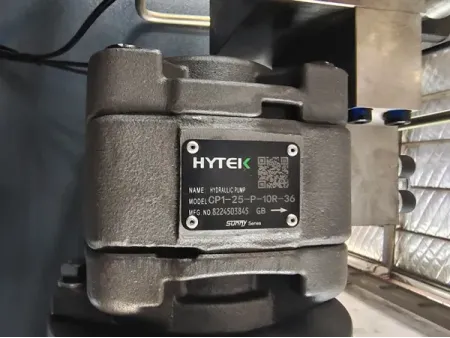

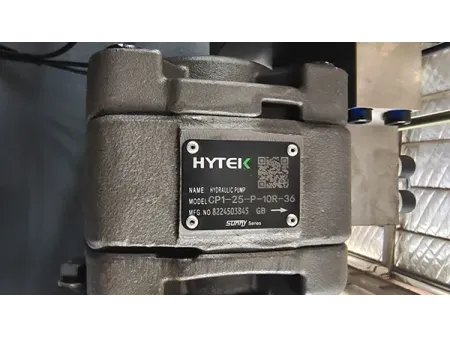

Sunny Hydraulic Pump
Features a Sunny hydraulic pump known for its stable performance.

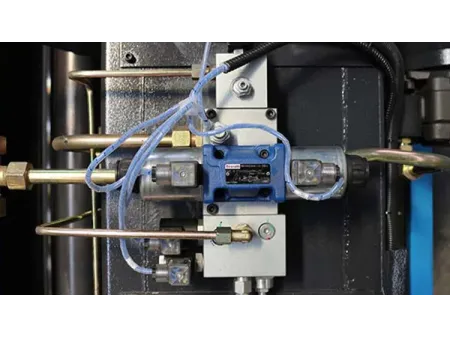

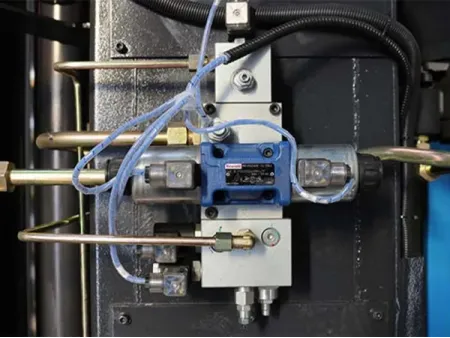

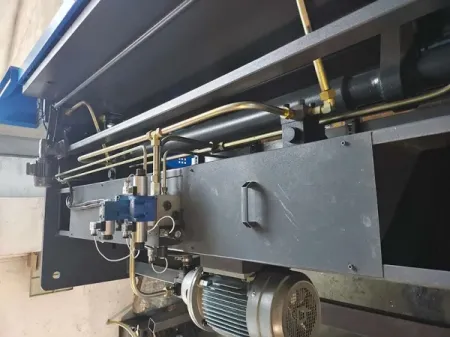

Integrated Hydraulic System

  • Utilizes American Parker or Japanese NOK seals to extend cylinder life and ensure long-term oil tightness.
  • Incorporates a German Rexroth integrated hydraulic system for dependable and stable hydraulic transmission. This design minimizes issues related to hydraulic oil leakage.
  • Employs German EMB tubing and connections to prevent valve blockages by welding slag and maintain unimpeded oil flow within the hydraulic system.

Constructed from 42CrMo steel
Constructed from 42CrMo steel, the bending tools are heat-treated to achieve a hardness of 42HRC, ensuring durability and precision.

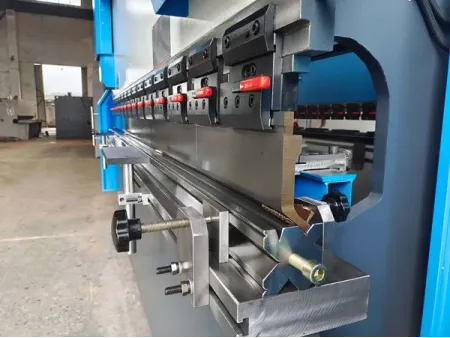

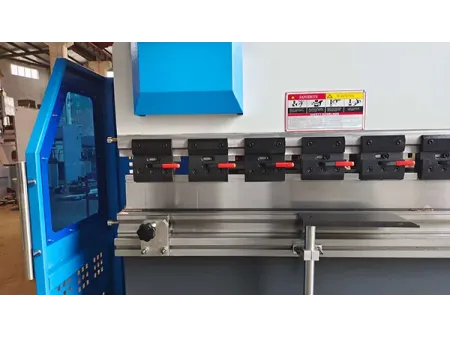

Backgauge
Features adjustable stop fingers that can be moved horizontally. An optional vertical movement feature for the stop fingers is available.

Front gauge brush (optional)

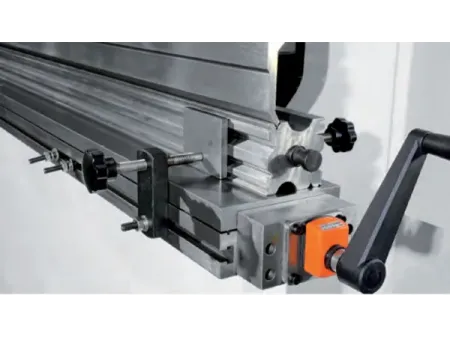

Manual crowning system
Adjust the angle manually.

Other Components

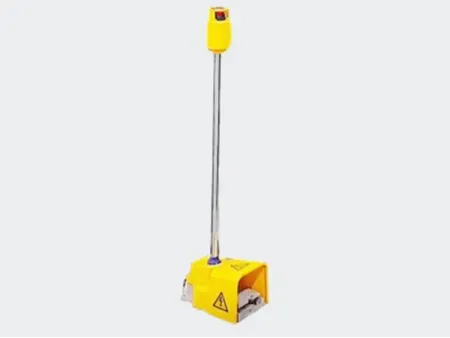

  • Foot Switch
  • Press Brake Controller
  • Front Support (T-slot support arms)
  • Integrated Hydraulic System
  • Sunny Hydraulic Pump
  • EMB Hydraulic Pipe
  • Fast Clamping System
  • Large Throat Depth (Customizable)
  • 42CrMo -Constructed Standard Punch & Die Set
  • Schneider Electrical Panel
  • Ball Screw Rod & Linear Guide Rail
  • Backgauge

    The backgauge offers manual vertical adjustment capabilities, and the stop fingers can be fine-tuned to ensure precise positioning

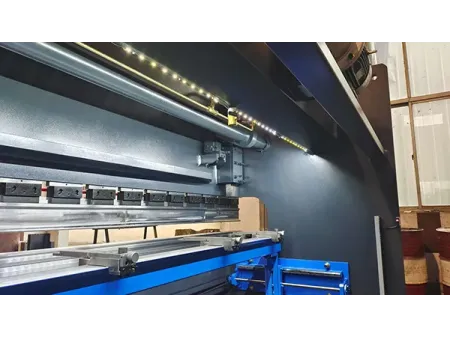

(Punches & Dies)Press Brake Toolings

The torsion bar press brake is adaptable to various types of punch and dies sets, allowing for greater production diversity.

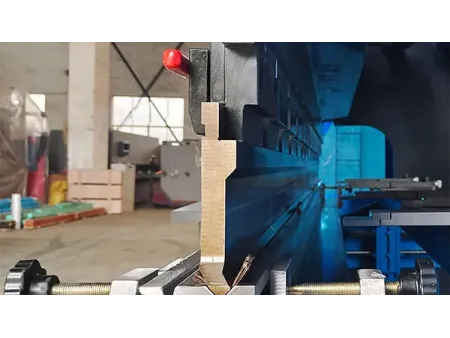

  • Standard Punch & Die Set
    Standard punch & die set finish

    Standard punch & die sets are commonly utilized in mass manufacturing, ideal for producing standard parts such as brackets.

  • Acute Punch & Die Set
    Acute punch & die set finish

    Acute punch & die set enables bending at various angles. It is particularly effective for shaping complex components like copper bus bars and cabinet panels, accommodating a wide range of design requirements.

  • Gooseneck Punch & Die Set
    Gooseneck punch & die set finish

    Gooseneck punch & die set is specifically engineered for situations where clearance during bending is crucial. It is typically used to achieve precise 90° bends in applications such as cabinet boxes and precision sheet metal fabrication.

  • Custom Punch & Die Set
    Custom punch & die set finish

    Custom punch & die sets are extensively used in infrastructure projects such as urban road construction and road maintenance engineering. They are ideal for forming complex shapes like cable bridges and guide rails, demonstrating versatility and precision.
